Keyes Brick Green LED Green Light Module (Pad hole) Anti-reverse Plug White Terminal Digital Signal

20 available / new

R335.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3523

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643382252

Description:

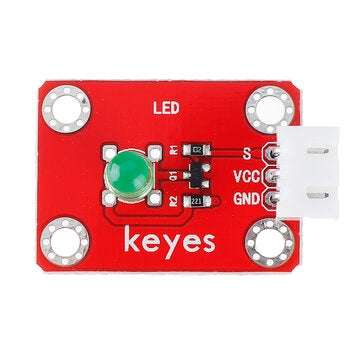

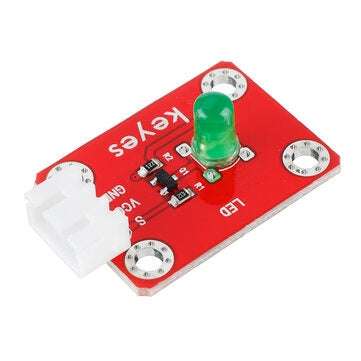

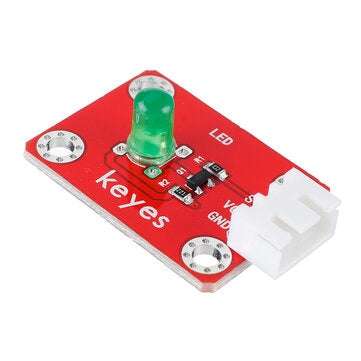

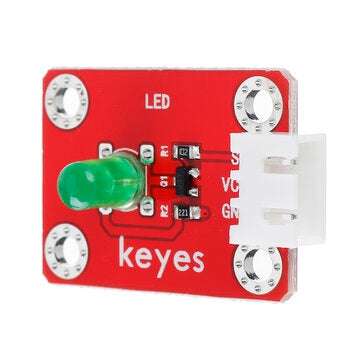

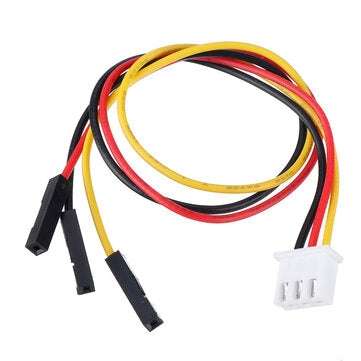

This is a commonly usedLEDGreen LightModule. At the same time, it comes with an anti-reverse insertion white terminal with a pitch of 2.54mm. For wiring, we also sent a 3pin cable, one end of the line is white anti-reverse plug interface (and the white anti-reverse plug on the module terminal matching), the other end is a 3pin DuPont female connector. After GND VCC is powered, when the signalterminal S is high, the LED on the module lights up. The module is compatible with various MCU control boards, such as MCU. When using, a sensor expansion board can be stacked on the microcontroller. Connect the module with its own wire ,it is simple and convenient to connect to the sensor expansion board. At the same time, the module comes with 4 positioning holes with a diameter of 3mm, which is convenient for you to fix the module on other equipment.
Specification:
Working voltage: DC 3.3V-5V Interface: 3PIN Anti-reverse interface Hole size: 3mm in diameter Wire length: 200mm Control signal: digital signal Size: 34*22*12mm Weight: 2.6g
Package included:
1 x LED Green Light Module 1 x 3PIN Dupont line (other items are not includes)
