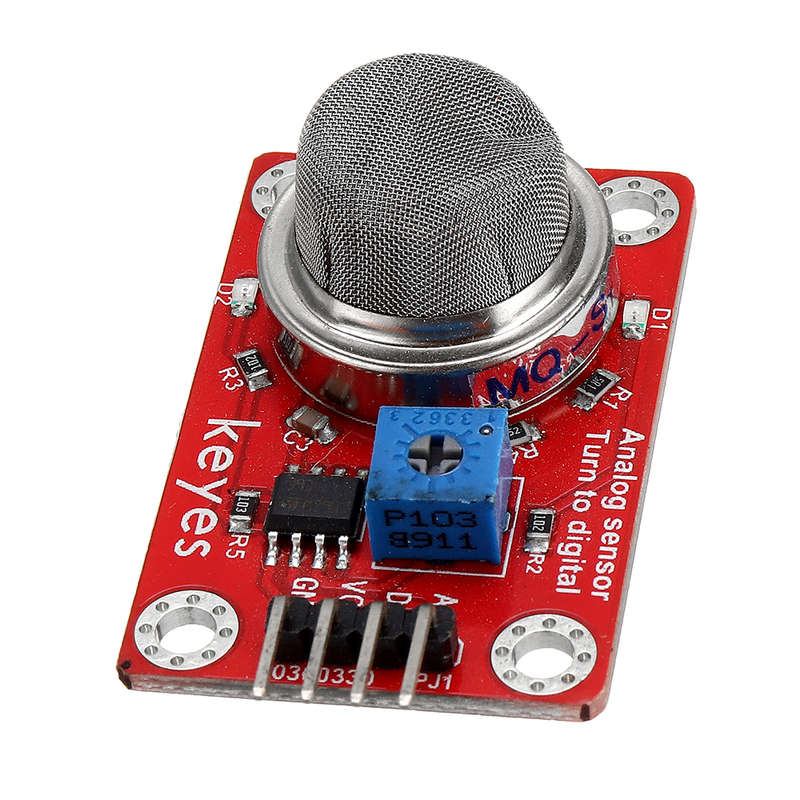

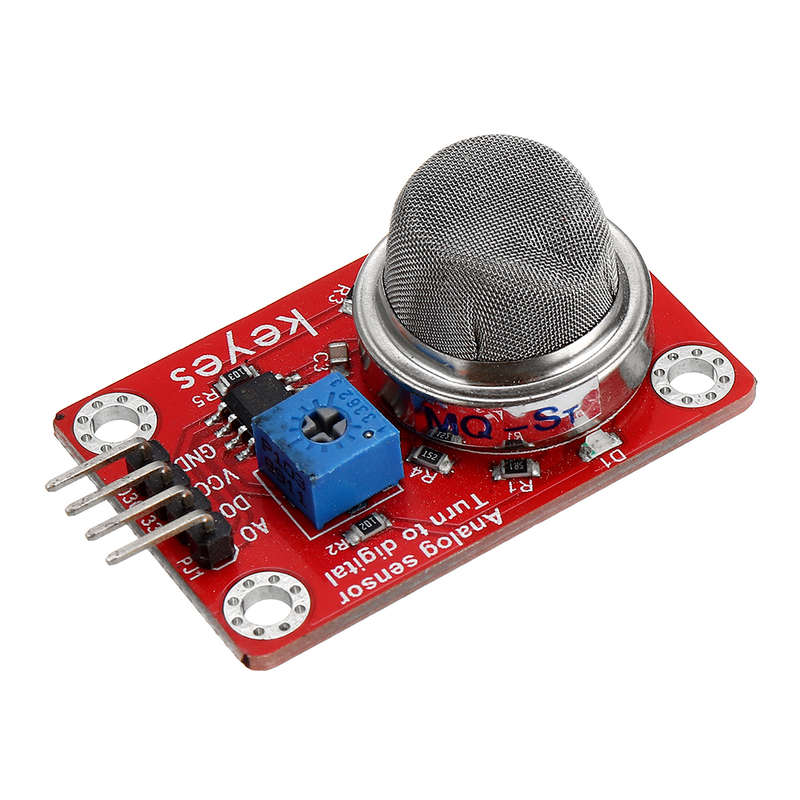

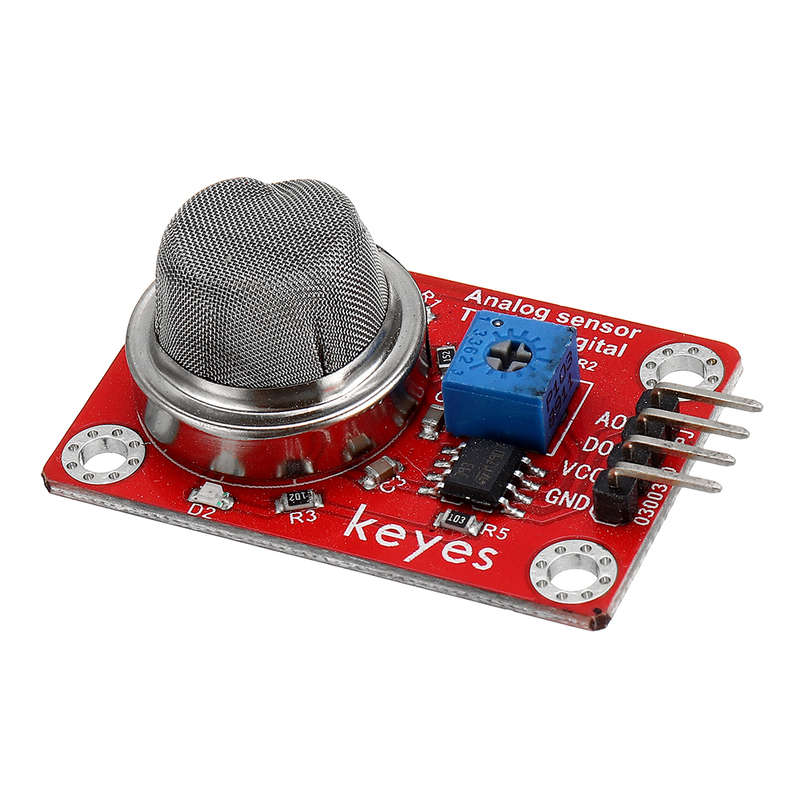

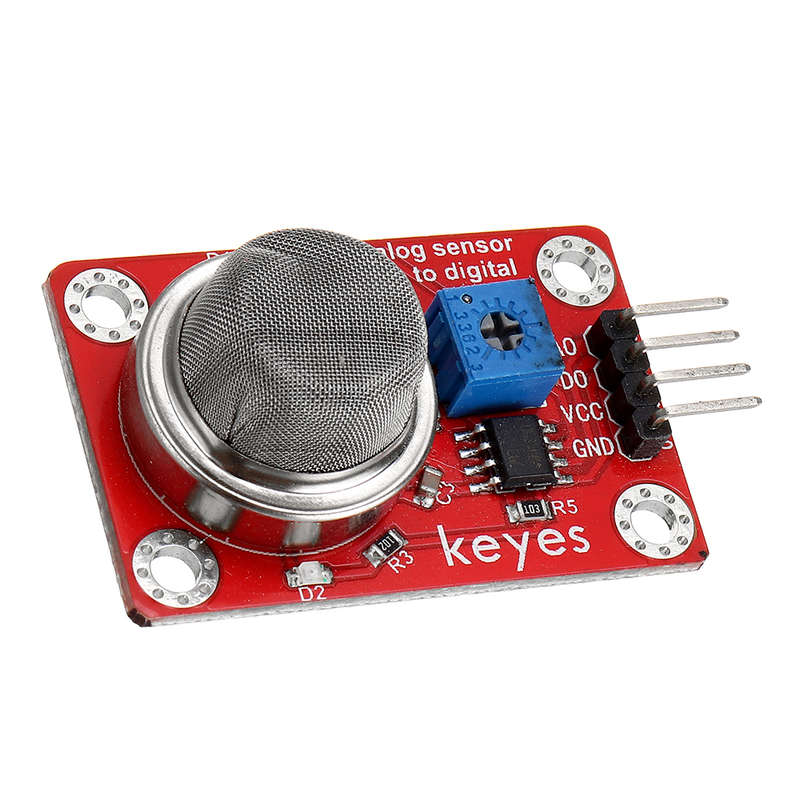

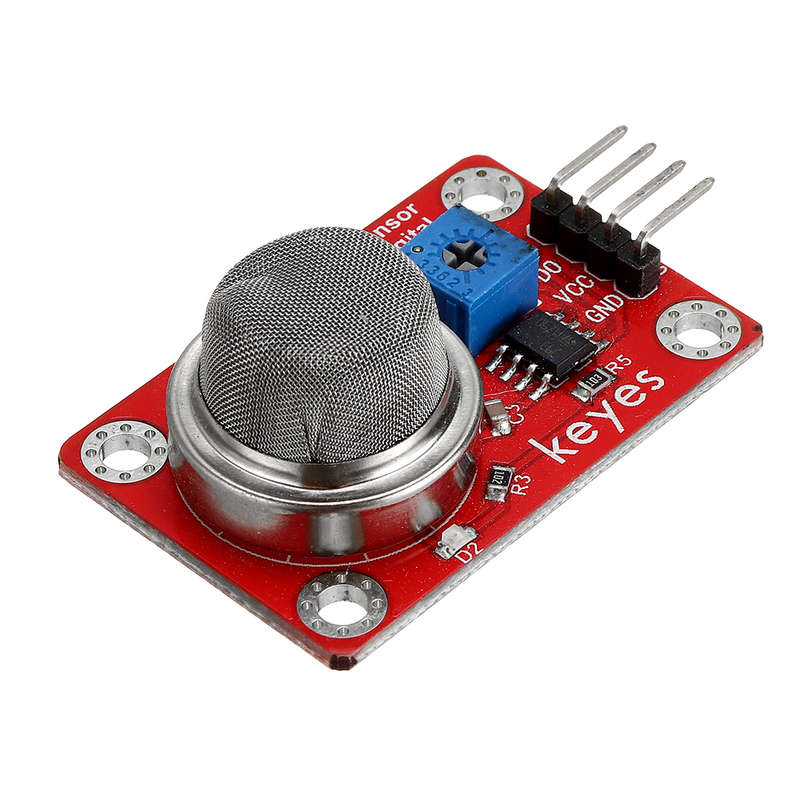

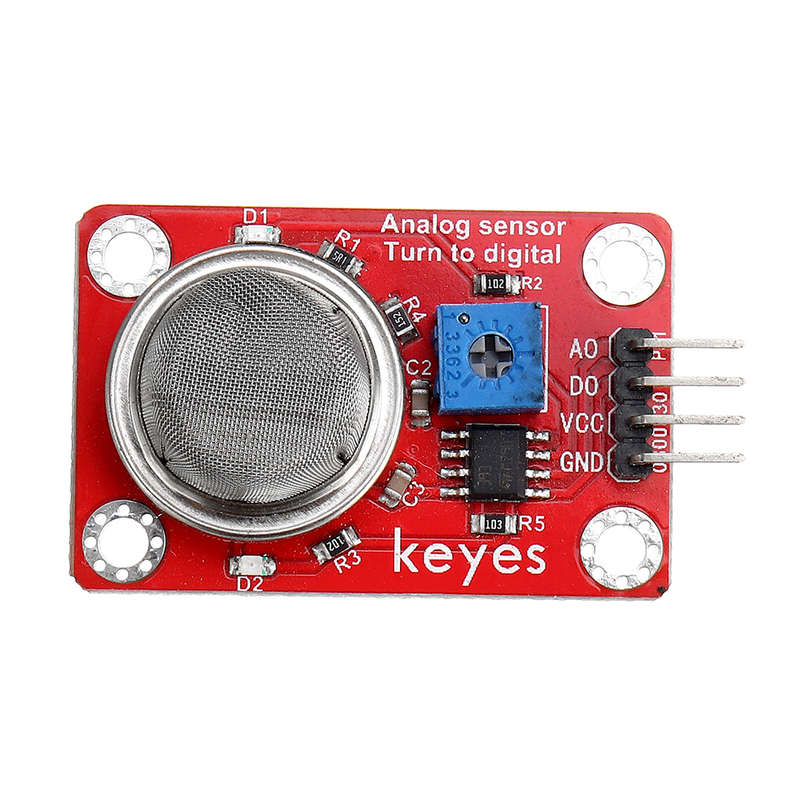

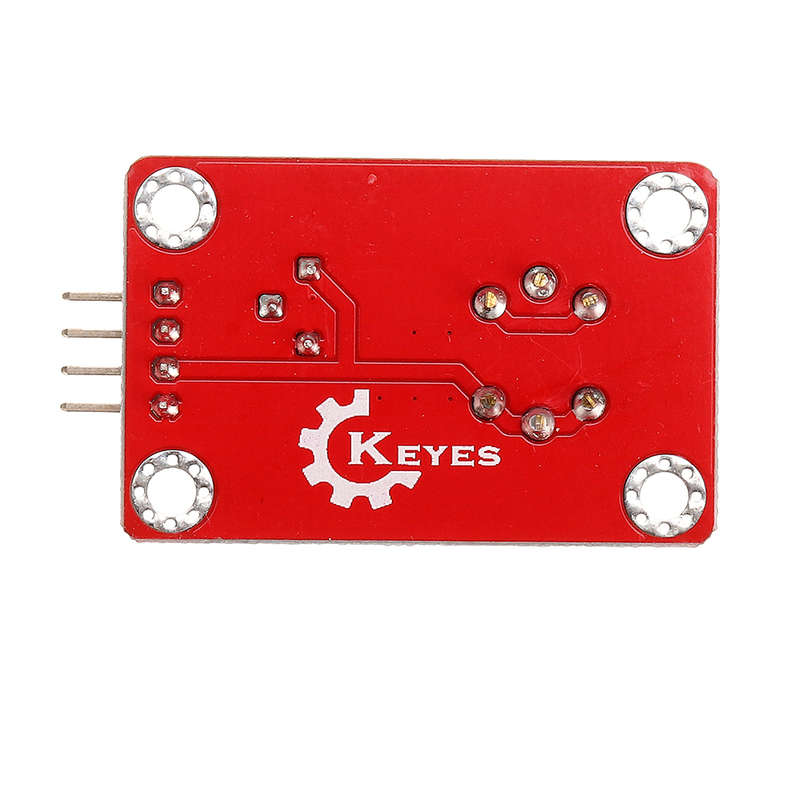

Keyes Brick MQ-135 Air Quality Sensor Module Gas Sensor with Pin Header Keyes Brick MQ-135 Air Quality Sensor Module Gas Sensor with Pin Header
Keyes Brick MQ-135 Air Quality Sensor Module Gas Sensor with Pin Header Keyes Brick MQ-135 Air Quality Sensor Module Gas Sensor with Pin Header

Keyes Brick MQ-135 Air Quality Sensor Module Gas Sensor with Pin Header

20 available / new
R317.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641126990
Description:

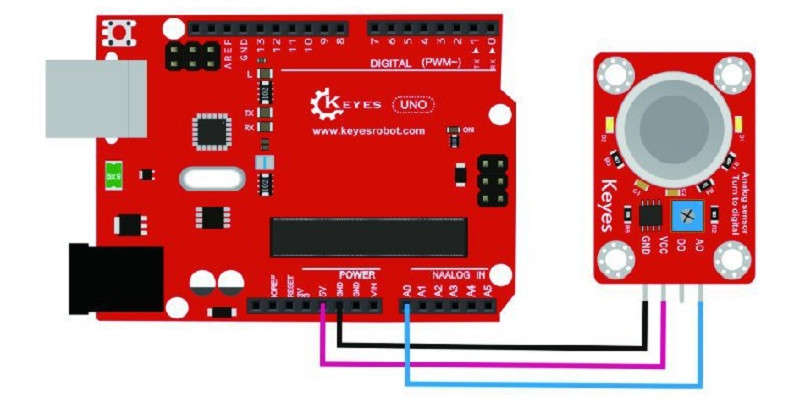

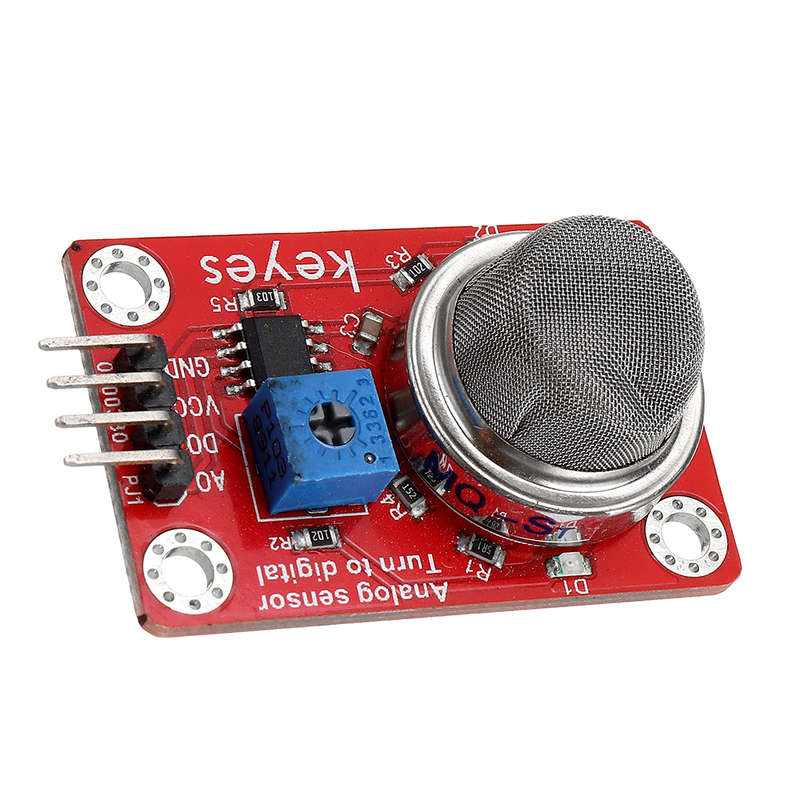

This is a commonly used air quality sensor. The gas sensing material used in this sensor is tin oxide (SnO2) with low conductivity in clean air. When there is a polluting gas in the environment where the sensor is located, the conductivity of the sensor increases as the concentration of the polluting gas in the air increases. The sensor is highly sensitive to ammonia, sulfides, and benzene vapors, and is ideal for monitoring smoke and other harmful gases. This sensor detects a wide range of harmful gases and is a low-cost sensor for a wide range of applications. It can be applied to harmful gas detection devices in the home and the environment. The sensor is compatible with various microcontroller control boards, such as the microcontrollers. We provide a method for using this sensor in conjunction with the UNO R3 microcontroller. When using, the A0 terminal reads the analog value of the corresponding gas; the D0 terminal is connected to an LM393 chip (comparator), we can adjust the measured gas alarm critical point through the potentiometer, and output the digital value at D0. When the measured gas content exceeds the critical point, the D0 terminal outputs a low level; when the measured gas content does not exceed the critical point, the D0 terminal outputs a high level. Specifications:

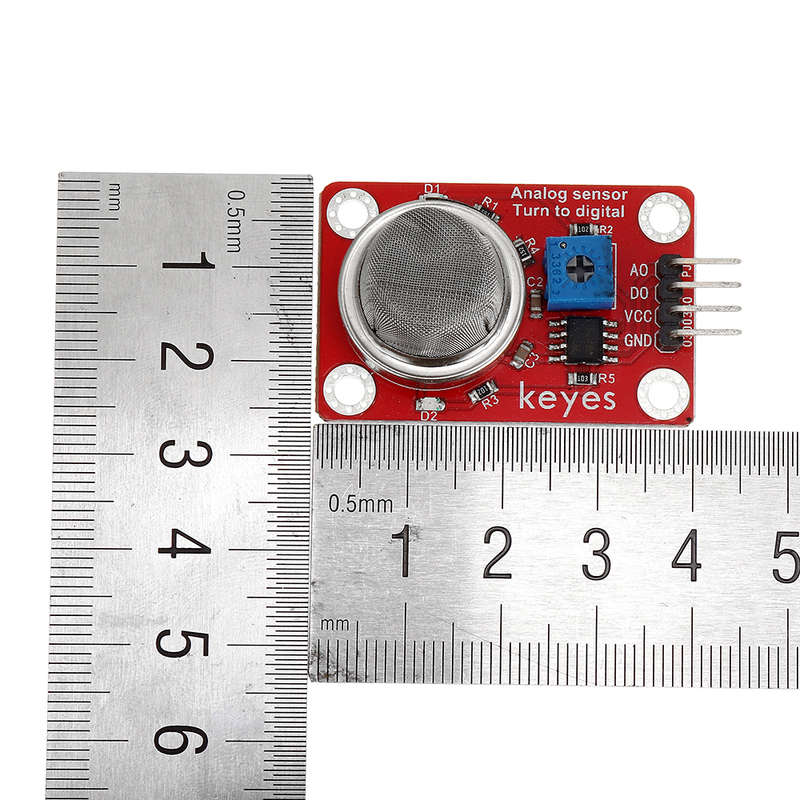

Working voltage: DC 5V Control signal: digital signal (D0) Analog signal (A0) Positioning hole size: 3mm in diameter Size: 45*26*19mm Weight: 8.3g Package Included:
1 x MQ-135 air quality sensor (the other items are not includes)
