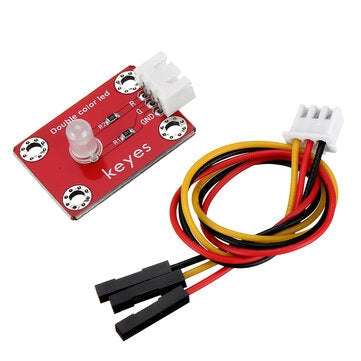

Keyes Brick Two Color LED Module (pad hole) Anti-reverse Plug White Terminal

Description:
This is a commonly used LED module, which uses F5-red and green common cathode mist LED components. control When controlling, we need to connect the module R G to the PWM port of the MCU and the GND ground wire. We pass By adjusting the two PWM values, the ratio of red light to green light displayed by the LED element is controlled to control Two-color LED displays different colors.
This module is compatible with various MCU control boards, such as MCU. Module contains 2kind of interface, you choose. One is the anti-reverse insertion white terminal with a pitch of 2.54mm.we can use the module`s own wire to connect to the microcontroller. To facilitate wiring, we also specially designed an extension that is fully compatible with this module and UNO R3 microcontrollerboard. The other is a pin header with a pitch of 2.54mm, using male-to-female DuPont cable, which can be straight connected to the microcontroller.
Specification:
Working voltage: DC 3.3-5V Interface: Anti-reverse interface ,PIN interface Hole size: 3mm in diameter Wire length: 200mm Control signal: digital signal Light color: Warnlight Size:34*22*12mm Weight: 2.7g
Package included:
1 x LED Module 1 x 3P line
