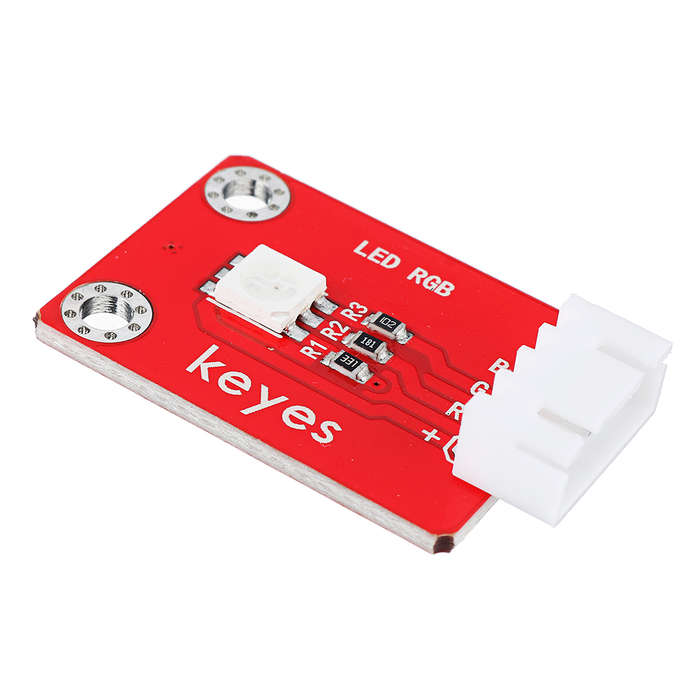

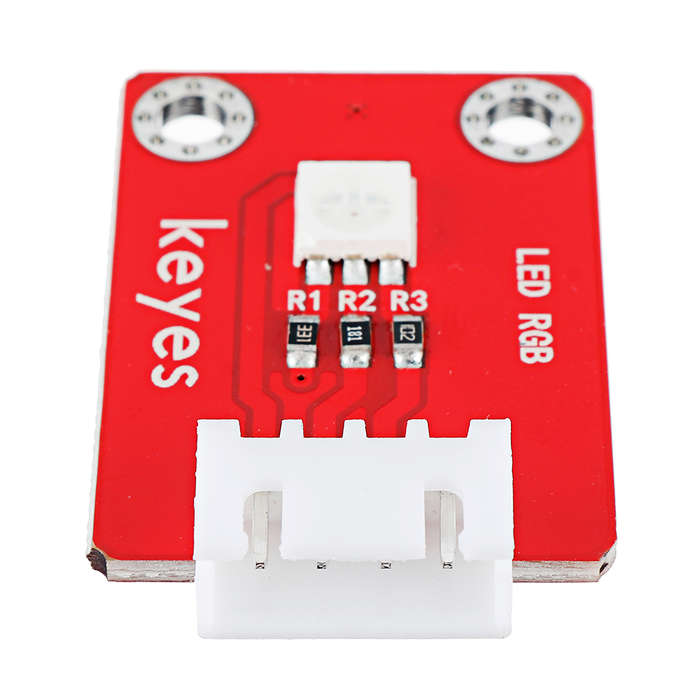

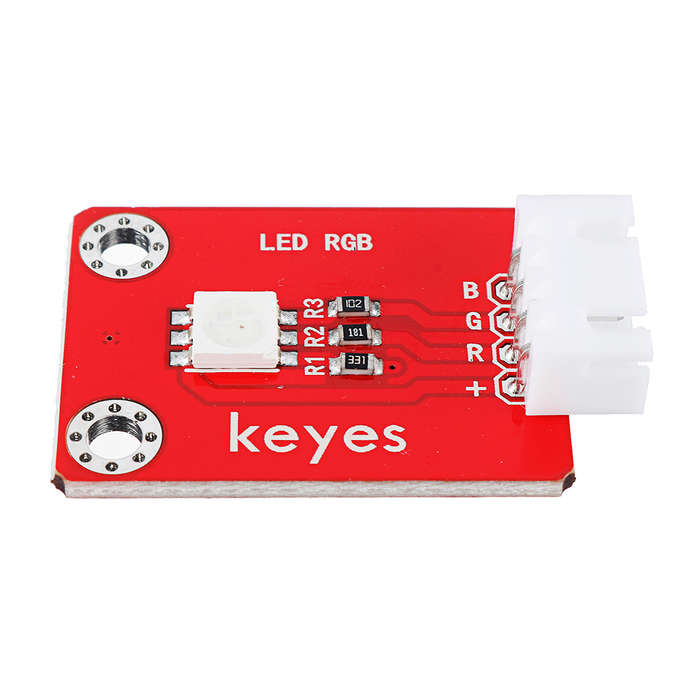

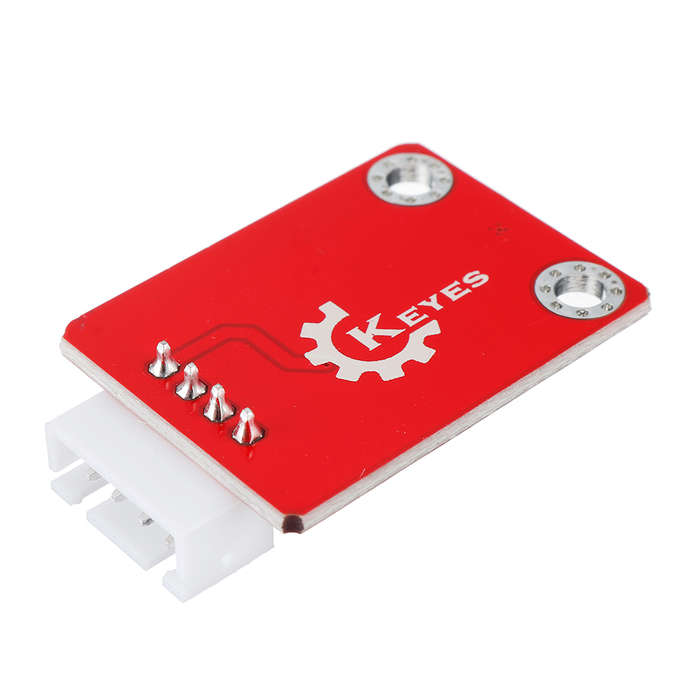

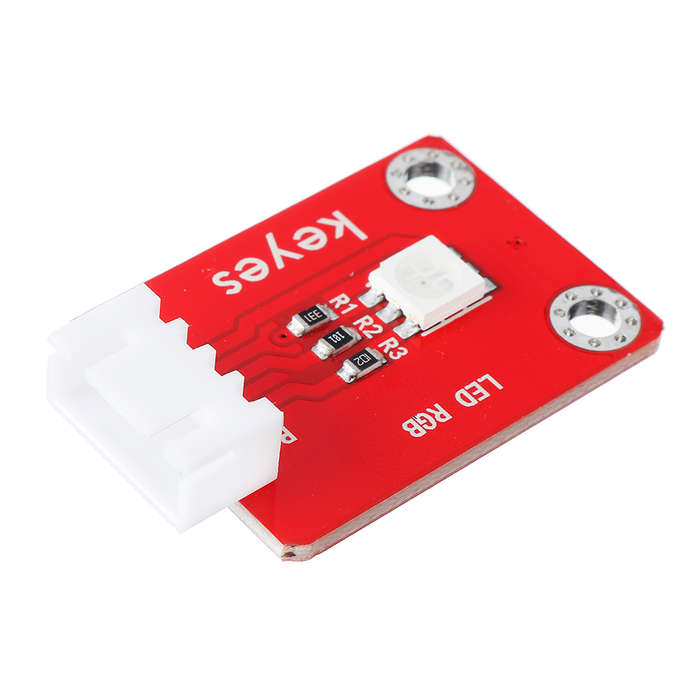

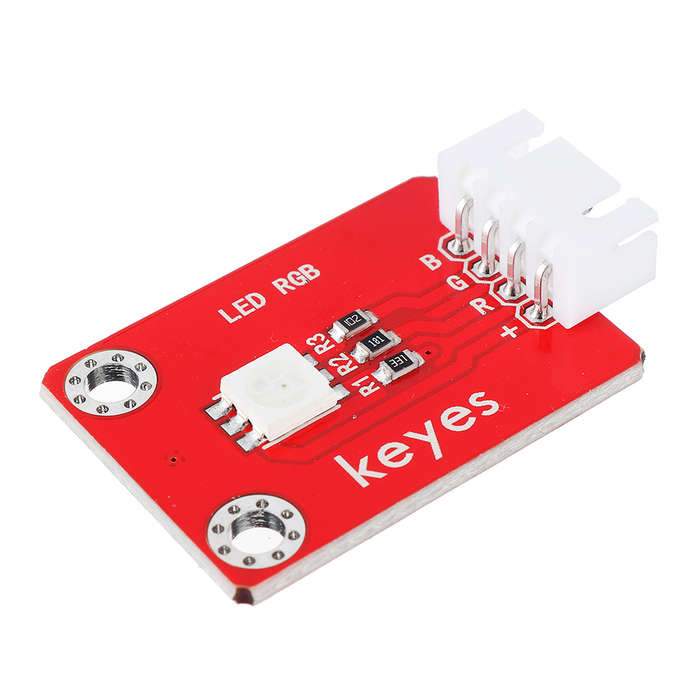

Keyes Brick Warn Light LED RGB Module (pad hole) Anti-reverse Plug White Terminal Digital Signal

Description:

This is a commonly used LED module, which uses 5050RGB high-brightness LED components. controlDuring the system, we need to connect the module R G to the PWM port of the MCU and + to 5V. We pass by adjusting the 3 PWM values, control the LED element to display the ratio of red light to green light, thereby controlling the LED on the RGB module displays different colors. This module is compatible with various MCU control boards, such as MCU. Module contains 2kind of interface, you choose. One is the anti-reverse insertion white terminal with a pitch of 2.54mm.we can use the module`s own wire to connect to the microcontroller. To facilitate wiring, we also specially designed an extension that is fully compatible with this module and UNO R3 microcontrollerboard. The other is a pin header with a pitch of 2.54mm, using male-to-female DuPont cable, which can be straight connected to the microcontroller.

Specification:

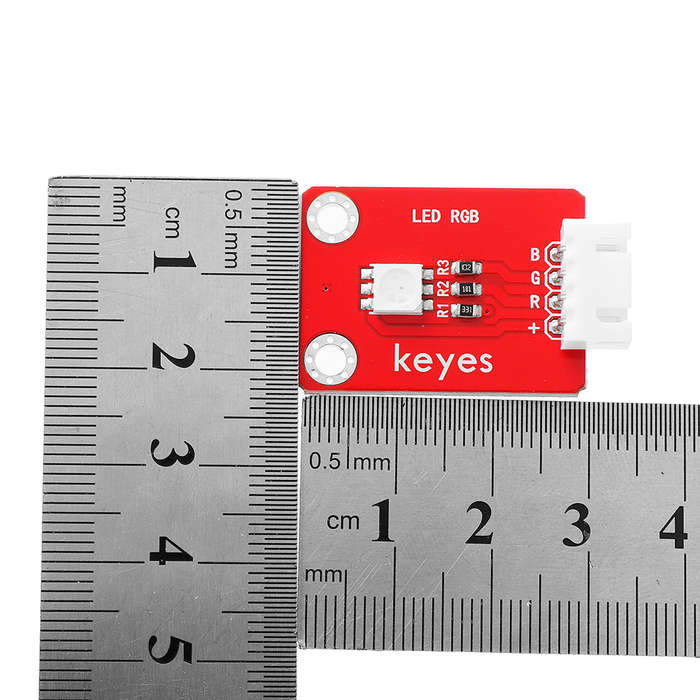

Working voltage: DC 3.3-5V Interface: Anti-reverse interface ,PIN interface Hole size: 3mm in diameter Wire length: 200mm Control signal: digital signal Light color: Warnlight Size: 34*22mm Weight: 2.6g
Package included:

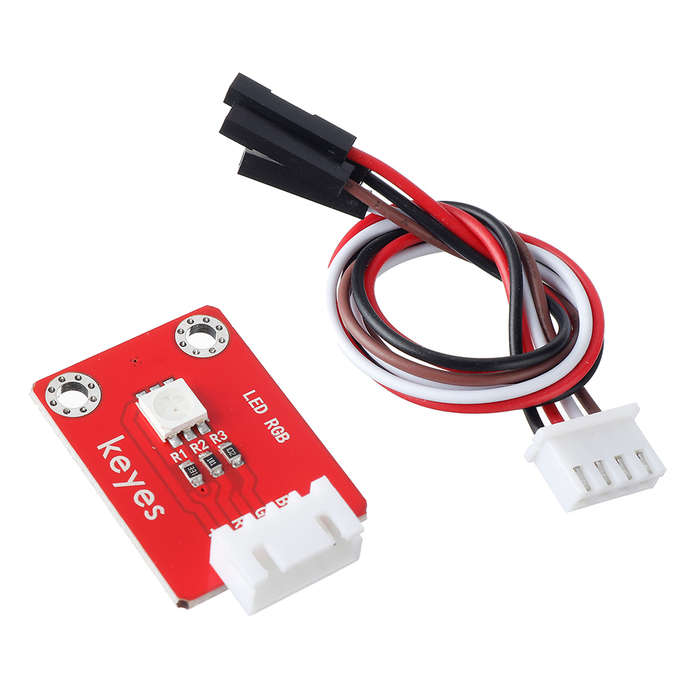

1 x LED Module 1 x 4P line (the other items are not includes)
