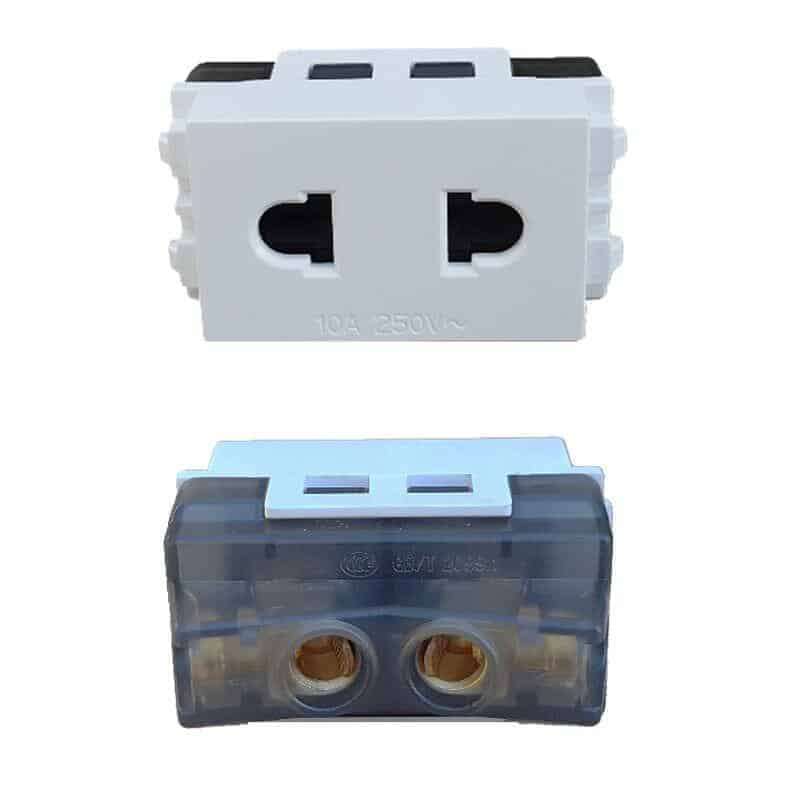

The Keystone 2-pin 230VAC Insert is a specialized modular connector designed to provide high-voltage power through a standard keystone wall plate. Unlike data or low-voltage inserts, these are engineered with specific safety insulation and materials to handle standard mains electricity safely.

In many regions, including South Africa, these are often used for small appliances, lamps, or chargers in modular home automation or office setups.

Product features

• Physical design: fits into a standard 14.5 mm x 16.0 mm keystone opening, though the front face often extends slightly to accommodate the plug pins.
• Plug type: most commonly designed for Europlug (Type C) or similar ungrounded 2-pin configurations.
• Housing: built from heavy-duty, flame-retardant polycarbonate (UL 94V-0) to withstand the heat generated by electrical current.

Specifications

• Input voltage: 230~250VAC @ 50/60Hz
• Current Capacity: 10A
• Internal Termination: usually features screw terminals on the rear to securely clamp the live and neutral wires. Some versions may use "push-in" spring terminals for faster installation.
• Material: flame-retardant plastic
• Compatibility: fits any standard keystone opening
• Dimensions: 15mm x 16mm
• Installation: toolless snap-in design; can be removed from the rear
• Number of slots used: 1

To buy any of the wall plates, [click here].

Steps for getting the right amount of inserts for your project:

1. Determine the empty slots of the wall plate. For example, you want two 6-slot 120×120 wall plates. The total number of empty slots is 12.
2. Determine the actual number of inserts you need. Subtract the total empty slots from the amount of inserts you actually need. The value gotten will be for the blank inserts [click here]. For example, you require four RJ45 inserts; 12 4 = 8. That means you will buy 8 blank inserts for the slots you will not be using.

Typical applications (not limited to)

• Homes
• Offices
• Schools
• Universities

What is in the box?

• 1 x Keystone 2-pin 230VAC Insert
