Name / Brand / Architecture | |
| Manufacturer: | KFA2 |
| Model: | MDT X4 GTX 570 |
| Reference card?: | No |
| Based on: | NVIDIA GeForce GTX 570 [Compare] |
| Target market segment: | Desktop |
| Die name: | GF110 |
| Architecture: | Fermi |
| Fabrication process: | 40nm |
| Transistors: | 3.0 Billion |
| Bus interface: | PCI-E 2.0 x 16 |
| Launch date: | November 2011 |
Frequency | |
| Graphics clock: | 800 MHz |
| Processor clock: | 1600 MHz |
Memory specifications | |
| Memory size: | 1280 MB |
| Memory type: | GDDR5 |
| Memory clock: | 950 MHz |
| Memory clock (effective): | 3800 MHz |
| Memory interface width: | 320-bit |
| Memory bandwidth: | 152.0 GB/s |
Cores / Texture | |
| CUDA: | 2.0 |
| CUDA cores: | 480 |
| ROPs: | 40 |
| Texture units: | 60 |
| RAMDACs: | 400 MHz |
SLI / Crossfire | |
| Maximum SLI options: | 3-way |
Electric characteristics | |
| Maximum GPU temp: | 97 C |
| Maximum power draw: | 219 W |
Video features | |
| Multi-monitor: | Up to 4 displays |
| Maximum DVI resolution: | 2560 x 1600 |
| Maximum HDMI resolution: | 1920 x 1200 |
| Maximum VGA resolution: | 2048 x 1536 |
| Anti-Aliasing technologies: | 32 x CSAA |
| HDMI: | Yes |
| HDMI version: | 1.4a |
Performance | |
| Pixel fill rate: | 32 Gigapixels/s |
| Texture fill rate: | 48 Gigatexels/s |
| Single presision compute power: | 1536.0 GFLOPS |
External connectors | |

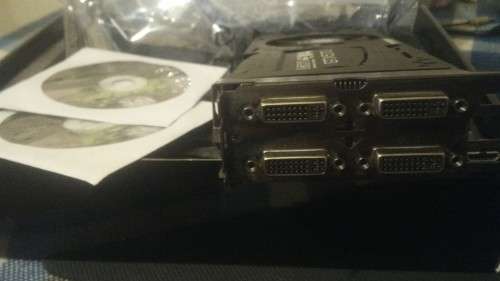

| Standard display connectors: | 3 x Dual Link DVI-D Dual Link DVI-I Mini HDMI |
| Power connectors: | 2 x 6-Pin |
| Audio input for HDMI: | Internal |
Dimensions | |
| Width: | Dual Slot |
Other features / Support | |
| Other features: | 3D Vision ? 3D Vision Surround ? HDCP PhysX PureVideo HD ? |
| Open CL support: | Yes |
| OpenGL support: | 4.1 |
| DirectX support: | 11.0 |
| Shader model: | 5.0 |
| GPU model | Graphics clock | Processor clock | Memory size | Memory clock (effective) | |
|---|---|---|---|---|---|
| KFA2 GeForce GTX 570 | 732 MHz | 1464 MHz | 1280 MB | 3800 MHz | |
| KFA2 MDT X4 GTX 570 | 800 MHz | 1600 MHz | 1280 MB | 3800 MHz |
