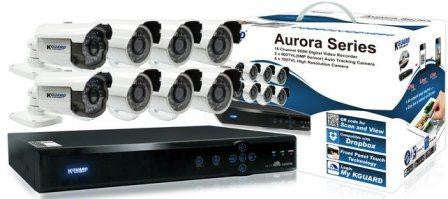

KGuard 16 Channel Aurora Series Combo Kit

AR1621-CKT001-Kguard Aurora 16x Channel Advanced 960H DVR with 2 X 800TVL Auto Tracking Camera and 6 X 700TVL high resolution cameras.

The KGuard Aurora Series DVR has a wide range of features, including push notification, front panel touch technology, easy connection via a QR code, 960H recording resolution, HDMI output and cloud storage as well as access to the ¿MyKGUARD¿ homepage. KGUARD has designed all these functions with the latest technologies into its DVR in order to satisfy our customers' needs.

The new KGuard Aurora Series is equipped with 2x 800TVL and 6x 700 TVL high resolution cameras. The 800TVL auto tracking cameras allows you to focus on moving objects. The camera can automatically detect moving objects in its field of view and focus on that part of the picture to make it become larger and clearer. Also included is the WDR, which filters out the intense back light and eliminates shadows.

• Front panel touch technology and stylish design standalone DVR
• H.264 compression latest recording technology
• 960H recording resolution quality is better than D1
• Full HD output with 1080P display standard for connection to HDTV
• QR code for quick and easy remote mobile access setup
• Support cloud service-Dropbox to store and share your important data
• Push notification, live view, playback, and event alarm without missing any important information
• Free "KView Series" allows remote monitoring on your smartphone and tablet
• 2 X 800 TVL super high resolution and 30m/100ft night vision in total darkness
• With intelligent auto tracking to allow you to focus on detected people and objects(model:HZ213A)
• 6 X 700 TVL high resolution and 20m/65ft night vision in total darkness for clearer video(model:HW307E)
• Digital wide dynamic range to eliminate shadows (model:HZ213A)
• The cameras have waterproof casings that are weather resistant for most areas
• 3.6mm fixed lens with 75 degrees viewing angle to monitor particular areas

Specifications

• Model No-AR1621-SCKT001
• No. of Channel 16 Channels
• Cloud Storage Yes
• Storage Mode Schedule / Motion Detection
• Video Format NTSC / PAL
• Video Input 16x BNC Inputs
• Video Output 1 VGA, 1 BNC, 1 HDMI Outputs
• Video Output Resolution 1024x768, 1280x1024, 1366x768, 1440x900, 720p, 1080p
• Audio Input 2 RCA Inputs
• Audio Output 1 RCA Output
• Video Compression H.264
• Recording Frame Rate D1 NTSC 120fps@CIF (352×240), 120fps@HD1 (704x240), 120fps@D1 (704x480)
• PAL 100fps@CIF (352×288), 100fps@HD1 (704x288), 100fps@D1 (704x576)
• 960H NTSC- 120fps@WCIF (480×240), 120fps@WHD1 (960×240), 120fps@WD1 (960×480)
• PAL-100fps@WCIF (480×288), 100fps@WHD1 (960×288), 100fps@WD1 (960×576)
• Recording Mode-Always / Manual / Motion Detection / Schedule / Alarm
• HDD Interface-SATA
• HDD Support-Up to 2TB
• Network Interface-RJ45, 10M/100M
• Network Type- DHCP, PPPoE, Static IP
• Local Playback Max. 16 Channels Simultaneously
• Playback Search-Time / Channel / Event
• Playback Mode-Play, Fast Forward, Fast Rewind, Slow Motion, Zoom

General

• PTZ Control-RS485 Built-In, supports PELCO-P & PELCO-D
• E-SATA Port -No
• Sensor IN & Alarm OUT Port-4-IN, 1-OUT
• Backup Method-HDD, USB, Network
• Power Supply-12V/2A
• Operating Temperature (W/O HDD):-10¿ to 55¿ (14°F to 131°F )
• Storage Temperature:-20¿ to 70¿ ( -4°F to 158°F )
• Dimension (LxWxH) in mm-315x230x40

Specifications

CCTV Specifications

• Model Name-HZ213A 800TVL Camera
• Image Sensor-5M Pixels High Quality CMOS Image Sensor
• Horizontal Resolution-800TVL
• Electronics Shutter-NTSC 1/60-1/100,000(sec)/PAL 1/50-1/100,000(sec)
• Lens-3.6mm Megapixel Fixed
• Viewing Angle-75 Degrees to 25 Degrees
• Video Output-1.0VP-P, 75¿
• S/N Ratio-More than 48dB¿AGC OFF¿
• Day / Night Mode-Color during day / switches to B&W at night
• Minimum Illumination-While Infrared LED on "0" lux
• Backlight Compensation-Auto
• Night Vision Distance-30m / 98ft
• Illumination-Infrared LED
• Infra-Red Wavelength-850nm
• Infra-Red LED Life-10,000hrs
• WDR-Smart WDR
• Auto Tracking-Yes
• Indoor / Outdoor-Weather-proof (Both)
• Operating Temperature--10~50°C / 14~122°F
• Storage Temperature:-20~70°C / -4~158°F
• Body Construction-Aluminium
• "Dimensions - Camera with Stand (WxDxH)"72x63x167.5mm
• Weight - Camera with Stand-300g

CCTV Specifications

• Model Name HW307E
• Image Sensor 1/3" SHARP Color CCD
• Horizontal Resolu...
