• Push notification, live view, playback, and event alarm without missing any important information
• 1 X 800 TVL super high resolution and 30m/100ft night vision in total darkness
• With intelligent auto tracking to allow you to focus on detected people and objects(model:HZ213A)
• 3 X 700 TVL high resolution and 20m/65ft night vision in total darkness for clearer video(model:HW307E)
Specifications
• Model No-AR821-CKT001
• No. of Channel 8 Channels
• Cloud Storage Yes
• Storage Mode Schedule / Motion Detection
• Video Format NTSC / PAL
• Video Input 8x BNC Inputs
• Video Output 1 VGA, 1 BNC, 1 HDMI Outputs
• Video Output Resolution 1024x768, 1280x1024, 1366x768, 1440x900, 720p, 1080p
• Audio Input 8 RCA Inputs
• Audio Output 1 RCA Output
• Video Compression H.264
• Recording Frame Rate D1 NTSC 120fps@CIF (352×240), 120fps@HD1 (704x240), 120fps@D1 (704x480)
• PAL 100fps@CIF (352×288), 100fps@HD1 (704x288), 100fps@D1 (704x576)
• 960H NTSC- 120fps@WCIF (480×240), 120fps@WHD1 (960×240), 120fps@WD1 (960×480)
• PAL-100fps@WCIF (480×288), 100fps@WHD1 (960×288), 100fps@WD1 (960×576)
• Recording Mode-Always / Manual / Motion Detection / Schedule / Alarm
• HDD Interface-SATA
• HDD Support-Up to 2TB
• Network Interface-RJ45, 10M/100M
• Network Type- DHCP, PPPoE, Static IP
• Local Playback Max. 4 Channels Simultaneously
• Playback Search-Time / Channel / Event
• Playback Mode-Play, Fast Forward, Fast Rewind, Slow Motion, Zoom
General
• PTZ Control-RS485 Built-In, supports PELCO-P & PELCO-D
• E-SATA Port -No
• Sensor IN & Alarm OUT Port-8-IN, 1-OUT
• Backup Method-HDD, USB, Network
• Power Supply-12V/2A
• Operating Temperature (W/O HDD):-10 to 55(14°F to 131°F )
• Storage Temperature:-20â to 70 ( -4°F to 158°F )
• Dimension (LxWxH) in mm-315x230x40
.
CCTV Specifications

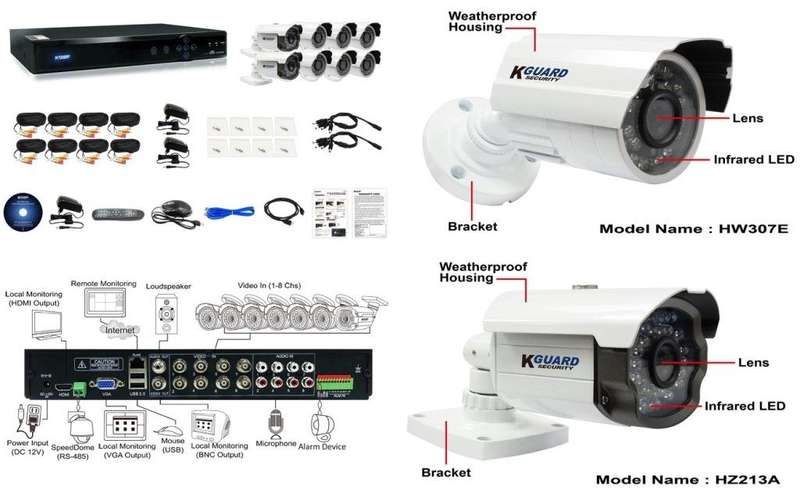

• Model Name-HZ213A 800TVL Camera
• Image Sensor-5M Pixels High Quality CMOS Image Sensor
• Horizontal Resolution-800TVL
• Electronics Shutter-NTSC 1/60-1/100,000(sec)/PAL 1/50-1/100,000(sec)
• Lens-3.6mm Megapixel Fixed
• Viewing Angle-75 Degrees to 25 Degrees
• Video Output-1.0VP-P, 75Ω
• S/N Ratio-More than 48dBï¼ GC OFFï¼
• Day / Night Mode-Color during day / switches to B&W at night
• Minimum Illumination-While Infrared LED on "0" lux
• Backlight Compensation-Auto
• Night Vision Distance-30m / 98ft
• Illumination-Infrared LED
• Infra-Red Wavelength-850nm
• Infra-Red LED Life-10,000hrs
• WDR-Smart WDR
• Auto Tracking-Yes
• Indoor / Outdoor-Weather-proof (Both)
• Operating Temperature--10~50°C / 14~122°F
• Storage Temperature:-20~70°C / -4~158°F
• Body Construction-Aluminium
• "Dimensions - Camera with Stand (WxDxH)"72x63x167.5mm
• Weight - Camera with Stand-300g
CCTV Specifications
• Model Name HW307E
• Image Sensor 1/3" SHARP Color CCD
• Horizontal Resolution 700TVL
• Electronics Shutter-NTSC 1/60-1/120,000(sec)/PAL 1/50-1/120,000(sec)
• Lens 3.6mm
• Viewing Angle 75 Degrees
• Video Output 1.0VP-P, 75Ω
• S/N Ratio More than 52dBï¼ GC OFFï¼
• Day / Night Mode Color during day / switches to B&W at night
• Minimum Illumination While Infrared LED on "0" lux
• Backlight Compensation Auto
• Night Vision Distance 20m / 65ft
• Illumination Infrared LED
• Infra-Red Wavelength 850nm
• Infra-Red LED Life 10,000hrs
• WDR-No
• Auto Tracking-No
• Indoor / Outdoor-Weather-proof (Both)
• Operating Temperature:-10~50°C / 14~122°F
• Storage Temperature:-20~70°C / -4~158°F
• Body Construction-Aluminium
• "Dimensions - Camera with Stand-(WxDxH)"-164x58x58mm
• Weight - Camera with Stand-295g
