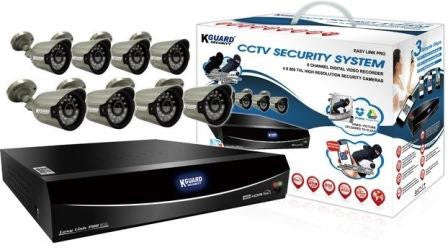

KGuard 8 Channel Easy Link PRO Series + 8 Cameras

The KGuard Easy Link Pro Series Combo Kit: EL822-8HW912A is extremely simple to install and setup and allows the user easily start remote view when he or she is away from home or company. Just plug network cable into DVR without any network setup. Scan for the first time to download the free app, second time to connect with the DVR, and users could enjoy live video without any limitations. The product also includes 960H resolution, cloud service, and push notification. Customers can use the product to secure their home and business easily.

Please Note: The KGuard Easy Link Pro Series Combo Kit: EL822-8HW912A only includes 800 TVL high resolution cameras with 3.6mm lens (for wide focus) providing high quality color images. Built-in WDR (wide dynamic range) function generates better image under high-contrast lighting environment. All cameras have powerful night vision with a range of up to 25m/82ft in total darkness and have waterproof cases to protect the camera and survive rainy days.

Features

• H.264 compression latest recording technology
• 960H recording resolution quality is better than D1
• Full HD output with 1080P display standard for connection to HDTV
• Smart QR code for quick app download and easy remote mobile access setup
• Support cloud service, Dropbox and Google Drive, to store and share your important data
• Push notification, live view, playback, and event alarm without missing any important information
• Support one high-speed SATA hard disk (up to 4TB) for long-term recording
• Free "kview Series" allows remote monitoring on your smartphone and tablet
• Multi-lingual support- English, Chinese, Spanish, German, French, Swedish, Danish, Italian, Polish, Russian, Japanese
• 800 TVL high resolution to make video clearer
• Night vision up to 25m/82ft in total darkness
• WDR function provides better image under high-contrast lighting environment
• Flexible installation with 3.6mm lens camera (75 degrees viewing angle)
• Waterproof case to protect the camera and survive rainy days

Specifications

• Stock Code-EL-822-8HW912A
• Description-KGuard 8 Channel Easy Link PRO Series + 8 Cameras Combo Kit
• Cloud Storage
• Storage Mode- Schedule / Motion Detection
• Video Format-NTSC / PAL
• Video Input-8 BNC Inputs
• Video Output-1 VGA, 1 BNC, 1 HDMI Outputs
• Video Output Resolution-"VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p"
• Audio Input-2 RCA Inputs
• Audio Output-1 RCA Output
• Recording Video Compression- H.264
• Recording Frame Rate D1 NTSC-480fps @ CIF (360×240), 240fps @ HD1 (720x240), 240fps @ D1 (720x480)
• PAL -400fps @ CIF (360×288), 192fps @ HD1 (720x288), 192fps @ D1 (720x576)
• 960H NTSC -480fps @ WCIF (480×240), 176fps @ WHD1 (960×240), 176fps @ WD1 (960×480)
• PAL-400fps @ WCIF (480×288), 144fps @ WHD1 (960×288), 144fps @ WD1 (960×576)
• Recording Mode-Always / Manual / Motion Detection / Schedule / Sensor / Alarm
• HDD Interface- 1 SATA
• HDD Support-Up to 4TB
• Network Interface-RJ45, 10M/100M
• Network Type- DHCP, PPPoE, Static IP
• Local Playback-Max. Max. 4 Channels Simultaneously
• Playback Search -Date & Time / Event List / Time Bar
• Playback Mode-Play, Fast Forward, Fast Rewind, Slow Motion, Zoom

General

• PTZ Control -RS485 Built-In, supports PELCO-P & PELCO-D
• Sensor & Alarm I/O Port
• IR Extender Port
• Backup Method-HDD, USB, Network
• Power Supply-12V/2A
• Dimension (LxWxH) in mm-300x220x50

CCTV Camera Specifications

• Model Name-HW912A
• Video Image Sensor-1/3" CMOS with IR Cut Filter
• Horizontal Resolution 800TVL
• Electronics Shutter-NTSC 1/60-1/120,000(sec) / PAL 1/50-1/120,000(sec)
• Lens-3.6mm Fixed
• Viewing Angle- 75 Degrees
• Video Output- 1.0VP-P, 75¿
• S/N Ratio-More than 48dB¿AGC OFF¿
• Day / Night Mode-Color during day / switches to B&W at night
• Minimum Illumination- While Infrared LED on "0" lux
• Gain Control-Auto
• Backlight Compensation-Auto
• Night Vision Distance-25m / 82ft
• Illumination-Infrared LED
• Infra-Red Wavelength- 850nm
• Infra-Red LED Life -10,000hrs

General

• WDR Function
• Indoor / Outdoor-Weather-proof (Both)
• Operating Temperature :-10~50°C / 14~122°F
• Storage Temperature :-20~70°C / -4~158°F
• Body Construction-Aluminium
• "Dimensions - Camera with Stand (WxDxH)"-68x58x153mm
• Weight - Camera with Stand-240g / 0.53lbs

Package Contents

• EL822 DVR
• Power Adapter
• Remote Control
• USB Mouse
• DVR Manual CD
• DVR Quick Instal...
