All in 1 DIY CCTV Security System with Remote view
Product Overview:
Kguard Aurora 4x Channel HD Advanced 960H DVR with 1 X 800TVL Auto Tracking Camera and 3 X 700TVL high resolution cameras. The Kguard Aurora Series DVR has a wide range of features, including push notification, front panel touch technology, easy connection via a QR code, 960H recording resolution, HDMI output and cloud storage as well as access to the “MyKGUARD” homepage. KGUARD has designed all these functions with the latest technologies into its DVR in order to satisfy our customers' needs.
The new Kguard Aurora Series is equipped with a 800TVL and 3x 700 TVL high resolution cameras. The 800TVL auto tracking camera allows you to focus on moving objects. The camera can automatically detect moving objects in its field of view and focus on that part of the picture to make it become larger and clearer. Also included is the WDR, which filters out the intense back light and eliminates shadows.
Specifications
• Model No-AR421
• No. of Channel 4 Channels
• Cloud Storage Yes
• Storage Mode Schedule / Motion Detection
• Video Format NTSC / PAL
• Video Input 4 BNC Inputs
• Video Output 1 VGA, 1 BNC, 1 HDMI Outputs
• Video Output Resolution 1024x768, 1280x1024, 1366x768, 1440x900, 720p, 1080p
• Audio Input 4 RCA Inputs
• Audio Output 1 RCA Output
• Video Compression H.264
• Recording Frame Rate D1 NTSC 120fps@CIF (352×240), 120fps@HD1 (704x240), 120fps@D1 (704x480)
• PAL 100fps@CIF (352×288), 100fps@HD1 (704x288), 100fps@D1 (704x576)
• 960H NTSC 120fps@WCIF (480×240), 120fps@WHD1 (960×240), 120fps@WD1 (960×480)
• PAL 100fps@WCIF (480×288), 100fps@WHD1 (960×288), 100fps@WD1 (960×576)
• Recording Mode Always / Manual / Motion Detection / Schedule / Alarm
• HDD Interface-SATA
• HDD Support-Up to 2TB
• Network Interface-RJ45, 10M/100M
• Network Type- DHCP, PPPoE, Static IP
• Local Playback Max. 4 Channels Simultaneously
• Playback Search-Time / Channel / Event
• Playback Mode-Play, Fast Forward, Fast Rewind, Slow Motion, Zoom
• General
• PTZ Control RS485 Built-In, supports PELCO-P & PELCO-D
• E-SATA Port No
• Sensor IN & Alarm OUT Port 4-IN, 1-OUT
• Backup Method HDD, USB, Network
• Power Supply 12V/2A
• Operating Temperature (W/O HDD) -10 to 55 (14°F to 131°F )
• Storage Temperature -20 to 70 ( -4°F to 158°F )
• Dimension (LxWxH) in mm 315x230x40

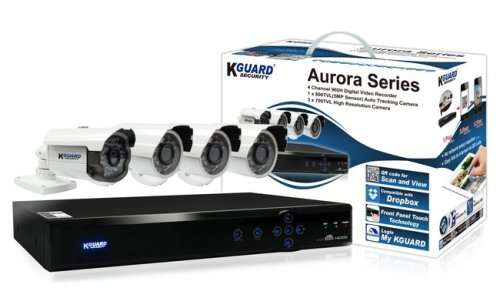

Everything you need in the BOX

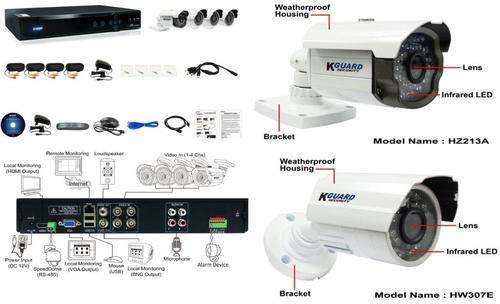

CCTV Specifications
• Model Name-HZ213A 800TVL Camera
• Image Sensor-5M Pixels High Quality CMOS Image Sensor
• Horizontal Resolution-800TVL
• Electronics Shutter-NTSC 1/60-1/100,000(sec)/PAL 1/50-1/100,000(sec)
• Lens-3.6mm Megapixel Fixed
• Viewing Angle-75 Degrees to 25 Degrees
• Video Output-1.0VP-P, 75Ω
• S/N Ratio-More than 48dBAGC OFF
• Day / Night Mode-Color during day / switches to B&W at night
• Minimum Illumination-While Infrared LED on "0" lux
• Backlight Compensation-Auto
• Night Vision Distance-30m / 98ft
• Illumination-Infrared LED
• Infra-Red Wavelength-850nm
• Infra-Red LED Life-10,000hrs
• WDR-Smart WDR
• Auto Tracking-Yes
• Indoor / Outdoor-Weather-proof (Both)
• Operating Temperature--10~50°C / 14~122°F
• Storage Temperature:-20~70°C / -4~158°F
• Body Construction-Aluminium
• "Dimensions - Camera with Stand (WxDxH)"72x63x167.5mm
• Weight - Camera with Stand-300g
• Model Name HW307E &00 TVL Cameras
• Image Sensor 1/3" SHARP Color CCD
• Horizontal Resolution 700TVL
• Electronics Shutter-NTSC 1/60-1/120,000(sec)/PAL 1/50-1/120,000(sec)
• Lens 3.6mm
• Viewing Angle 75 Degrees
• Video Output 1.0VP-P, 75Ω
• S/N Ratio More than 52dBAGC OFF
• Day / Night Mode Color during day / switches to B&W at night
• Minimum Illumination While Infrared LED on "0" lux
• Backlight Compensation Auto
• Night Vision
• Night Vision Distance 20m / 65ft
• Illumination Infrared LED
• Infra-Red Wavelength 850nm
• Infra-Red LED Life 10,000hrs
Package Contents
• AR421 DVR
• Power Adapter
• HDMI Cable
• Remote Control
• USB Mouse
• Software CD
• Quick Guide
• Ethernet Cable
• HZ213A Camera X1
• HW307E Camera X3
• Slim Cable
• 4-Way Split Power Cable
• Power Adapter
