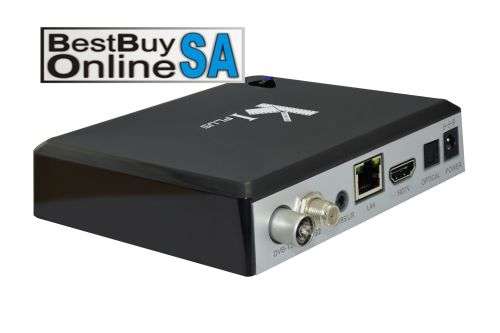

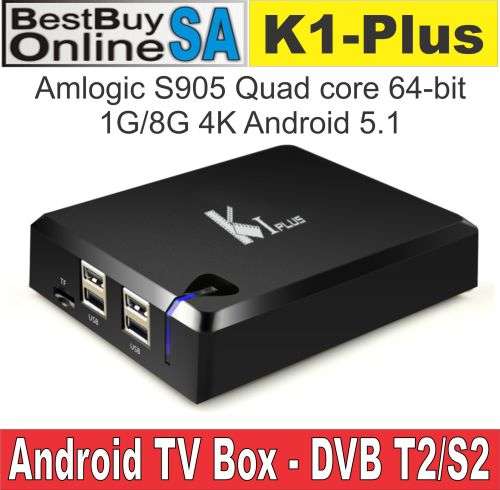

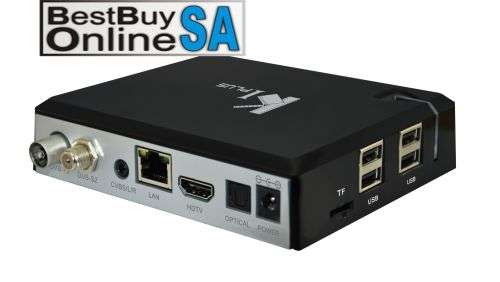

KI-PLUS DVB-T2/S2 Amlogic S905 Quad core 64-bit Cortex A53 2.0GHz Penta-core 1G/8G Android 5.1 TV Box Free Shipping
Quad-core Android 5.1.1 TV BOX
Hardware
CPU - Amlogic S905 Quad core 64-bit Cortex A53 Up to 2.0GHz
GPU - Penta-core Mali-450 Up to 750MHZ
3D Graphics - OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video Decoder - 4Kp60 10-bit HEVC, 4Kp30 MPEG / VC-1 / AVS+ / H.264
Video Encoder - H.264,1080P@60fps
Memory - DDRIII 1GB
Flash - Nand Flash 8GB ( 4~32GB Optional )
WiFi - Built in 2.4G WiFi
Blutooth - Optional
IR - Infra Remote control
LED Indicator - Power ON :blue; Standby :Red
DVB-T2 - DVB-T2 system standard:ETSIEN 302 755
Support MPLP
Demodulation: QPSK,16QAM,64QAM or 256QAM
Forward error correction rate 1/2,2/3,3/4,3/5,5/6
Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128
Bandwith: 6/7/8MHz
Input Frange range:54--860MHz Input Impedance:75 O
Input Signal level: -84 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE, female Loop Outpur:IEC TYPE, male,
DVB-S2DVB-S2 system standard:ETS 302 307
Symbol Rates: QPSK,8PSK
Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Symbol Rates: 1- 55 Msps
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
Input Signal level: -84 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE, female Loop Outpur:IEC TYPE, male

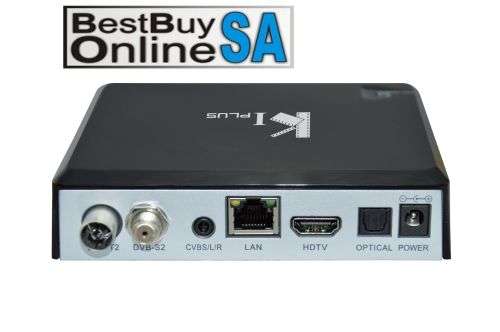

I/OHDMI 2.04K 2K HDMI2.0,HDCP2.2
4*USB HOST4 High speed USB 2.0,support U DISK and USB HDD
1*TF CARDSupport 1-32GB
1*AV AV output
1*SPDIFAudio output
1*RJ4510/100 BaseT
PowerDC Adapter 12V/1A
Accessories:
Power Adapter
IR remote control
HDMI Cable
User Manual
Software
OS - Android 5.1.1
Decoder- HD MPEG1/2/4,H.265/HEVC,HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6,RealVideo8/9/10
Video - AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG
Music - MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE
Photo - HD JPEG/BMP/GIF/PNG/TIFF
Support Language - Chinese,English,Germany,Japanese, Korea etc. 24 languages
WiFi Hotpoint - Support
Mouse/Keyboard - Support mouse and keyboard via USB
Support 2.4G wireless mouse and keyboard via 2.4G USB dongle
KODI - Support local high-definition play, support plug-in installation and play
DRM - Optional :Microsoft Playready, Verimatrix, Google Widevine
Others - support DLNA/AirPlay/Google TV Remote/LAN/Miracast/3D moive
Appliactions:
Online - Browse all video websites,support Netflix, Hulu,Flicker, Picasa, Youtube, Twitter, Facebook, etc
Apps - Apps download freely form android market/amazon appstore etc
Medium - Local Media playback,support HDD, U disck,SD card
Talk online - Support SKYPE video call,facebook,twitter,Netflix,Youtube, etc
Others - Support: Email,office suit etc
