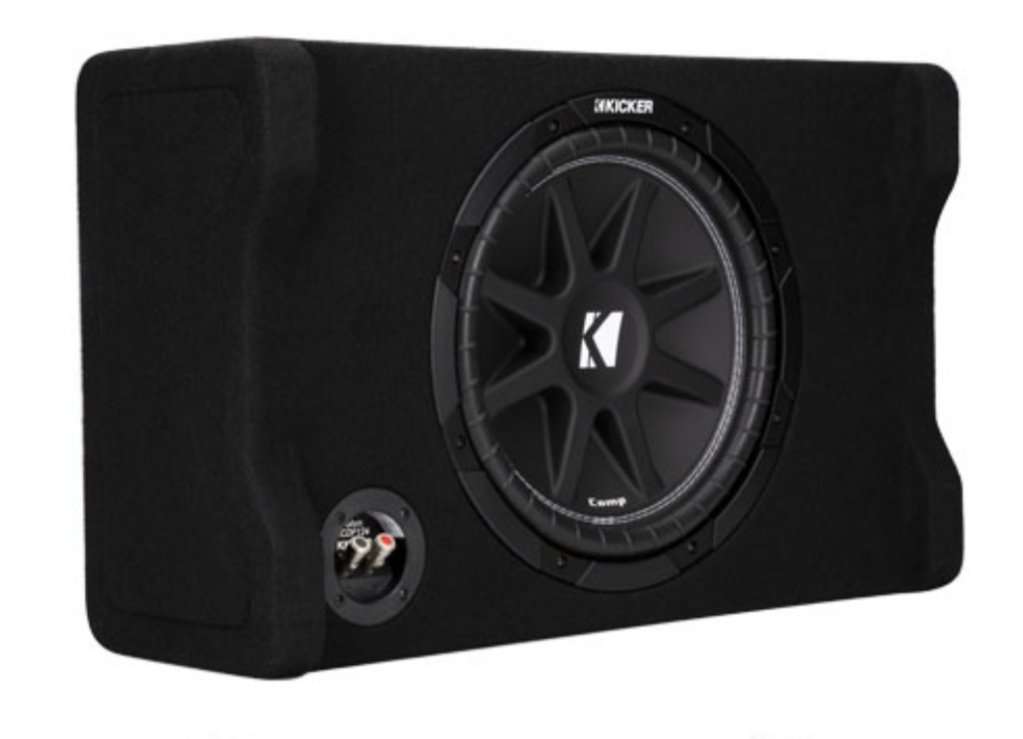

| Loaded Enclosure Specifications: |
| TYPE: |
| down fire |
| WOOFER SIZE (in, cm): |
| 12, 30 |
| IMPEDANCE (Ohms): |
| 4 |
| Recommended Amplifier Power (watts RMS) |
| 150 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 300 |
| SENSITIVITY (dB 1w/1m): |
| 92.3 |
| BOX DIMENSIONS |
 |
| DIMENSION A (in, cm): |
| 22-7/8, 58.0 |
| DIMENSION B (in, cm): |
| 14-3/16, 36.0 |
| DIMENSION C (in, cm): |
| 7-7/8, 19.5 |
| DIMENSION D (in, cm): |
| 6-15/16, 17.5 |

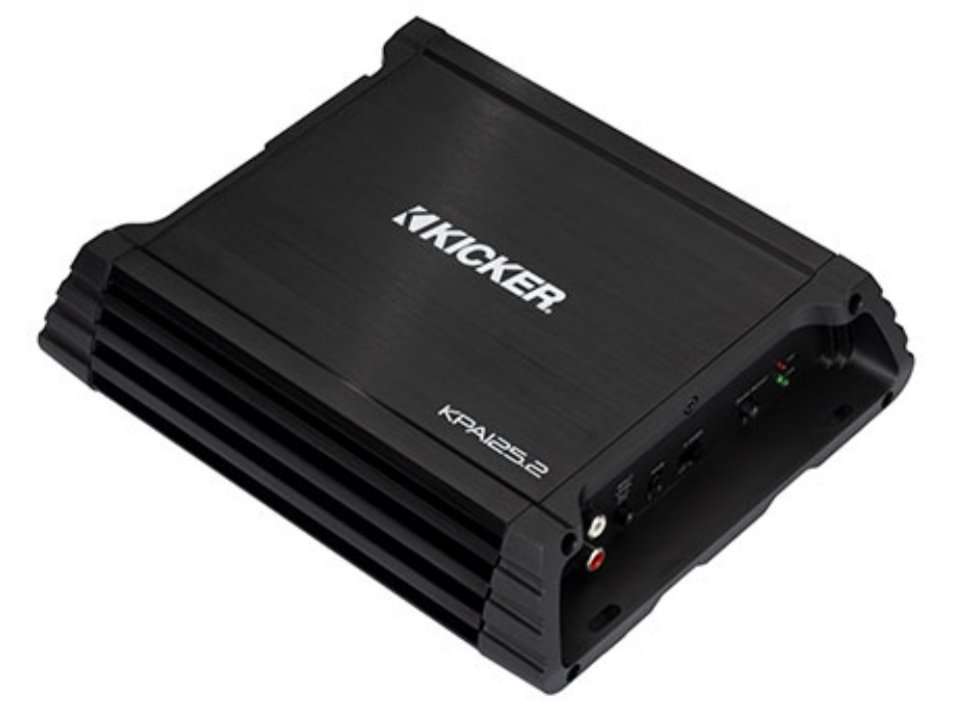

| Amplifier Specifications: |
| RMS Power [Watts] |
| @ 14.4V, 4 stereo, 1% THD+N : 30 x 2 |
| @ 14.4V, 2 stereo, 1% THD+N : 60 x 2 |
| @ 14.4V, 4 bridged mono, 1% THD+N: 125 x 1 |
| Length [in, cm] |
| 8-1/8, 21 |
| Height [in, cm] |
| 2-3/8, 6 |
| Width [in, cm] |
| 7-3/16, 18 |
| Frequency Response [Hz] |
| 10Hz20k |
| Signal-to-Noise Ratio [dB] |
| >95, A-weighted, re: rated power |
| Input Sensitivity |
| Low Level: 125mV5V High Level: 250mV10V |
| Electronic Crossover |
| HI, LO or OFF; Fixed 100Hz @ 12dB/Octave |
| KickEQ Bass Boost |
| Selectable 0 or +9dB @ 40Hz |
