Kinco MT4434t MT4434te HMI Touch Screen, 7 inch 800 * 480 Ethernet 1 USB Host Ne... (TYPE: MT4434TE)
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
SELECTED OPTION:
TYPE: MT4434TE
Description:
Model number: MT4434T
Performance specifications
Liquid crystal size: 7a?3TFT
Resolution: 800*480 pixels
Display color: 65536 color
Brightness: 250 cd/m
Backlight: LED
Touch screen: 4-wire precision resistance network (surface hardness 4H)
LCD life: 50000 hours
CPU: 400MHz RISC
Memory: 128M FLASH+64M DDR2
RTC & recipe memory: real-time clock + 512KB
Expandable memory: not supported
Print port: USB SLAVE/Serial port
Ethernet: not supported
Program download: 1 USB SLAVE interface/serial port
Communication port: COM0: RS232/RS485-2/RS485-4, COM2: RS232
Expansion interface: not supported
Electrical Specifications
Rated power: 7.2W
Amount voltage: DC24V
Input range: 12???28VDC
Allow power loss: <3ms
Insulation resistance: more than 50M??@500VDC
Withstand voltage test: 500V AC for 1 minute
Structure specification
Shell color: black
Shell material: fireproof ABS plastic
Dimensions: 204??150??37mm
Installation hole size: 192??138mm
Weight: 0.5 Kg
Environmental specifications
Working temperature: 0???45a??
Working humidity: 10???90%RH (non-condensing)
Storage temperature: -10???60a??
Storage humidity: 10???90%RH (non-condensing)
Vibration resistance: 10???25 Hz (X, Y, Z direction 2G/30 minutes)
Cooling method: natural air cooling.
Package Included:
1 x Touch Screen
Note:
- If you have any questions about the product, you can consult our customer service department before placing an order.

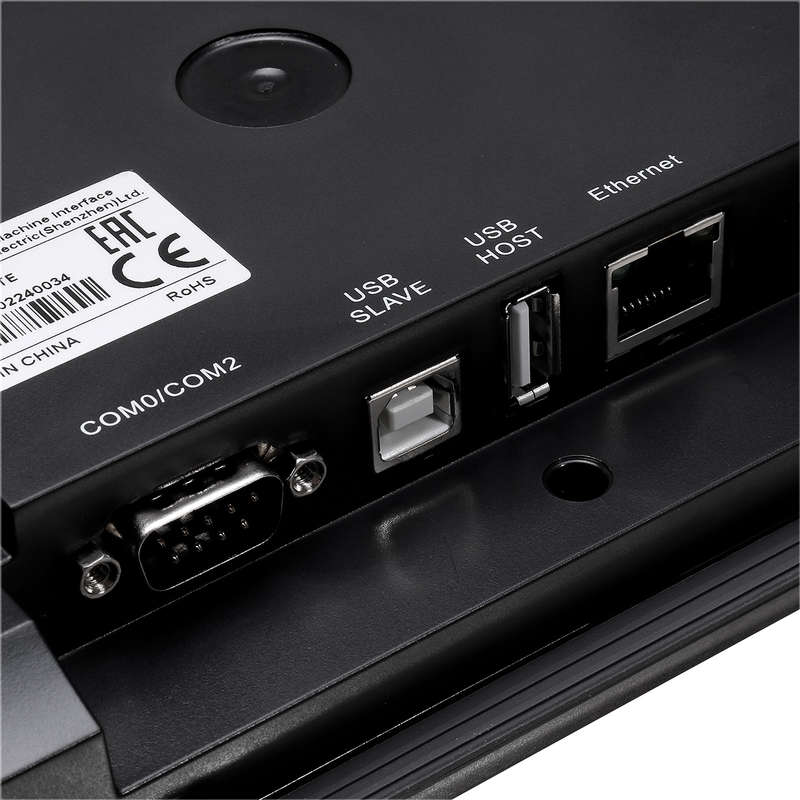

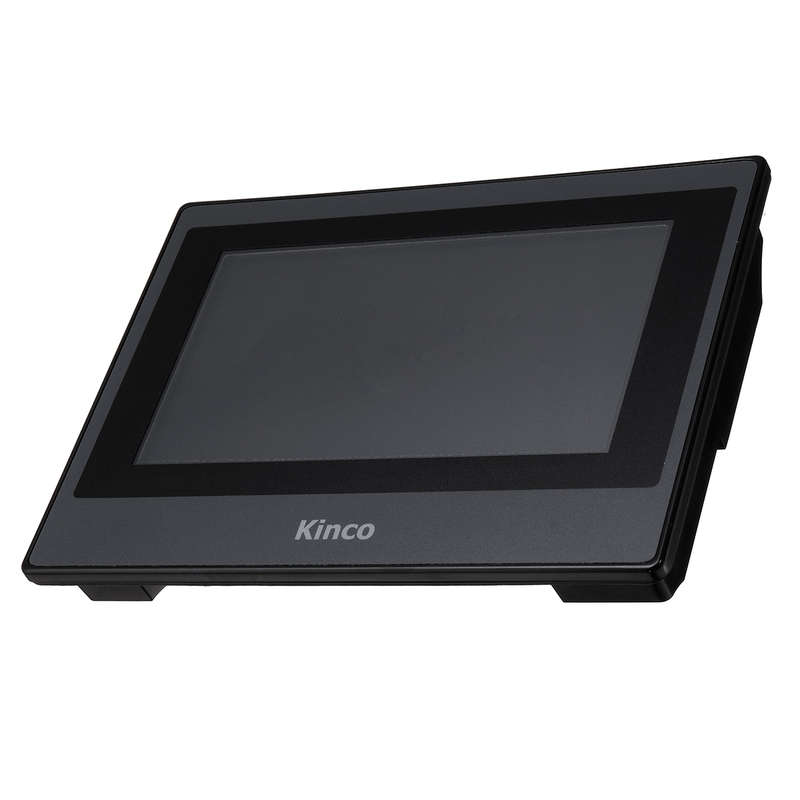

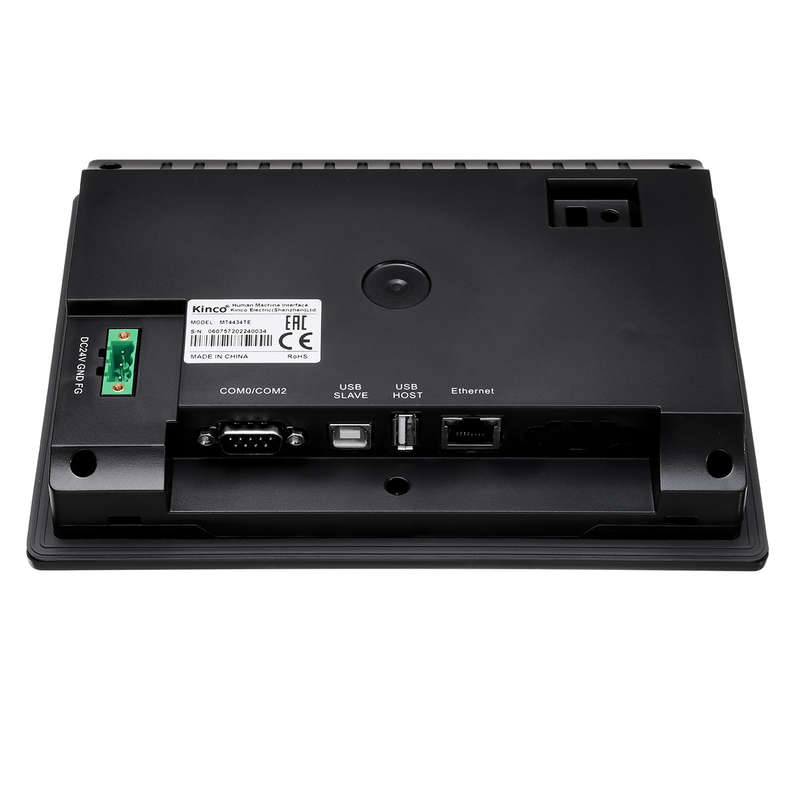

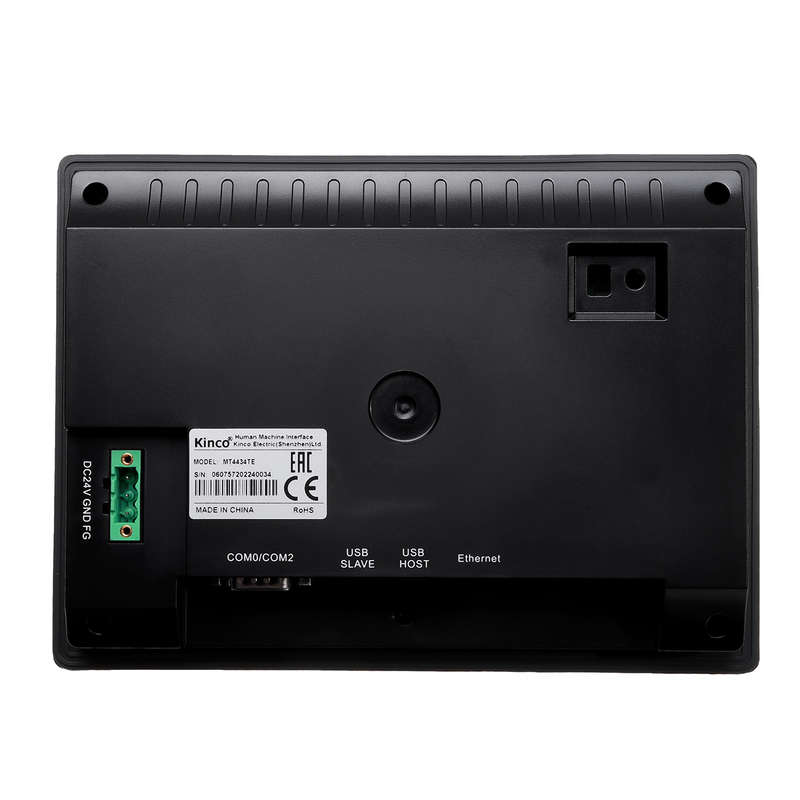

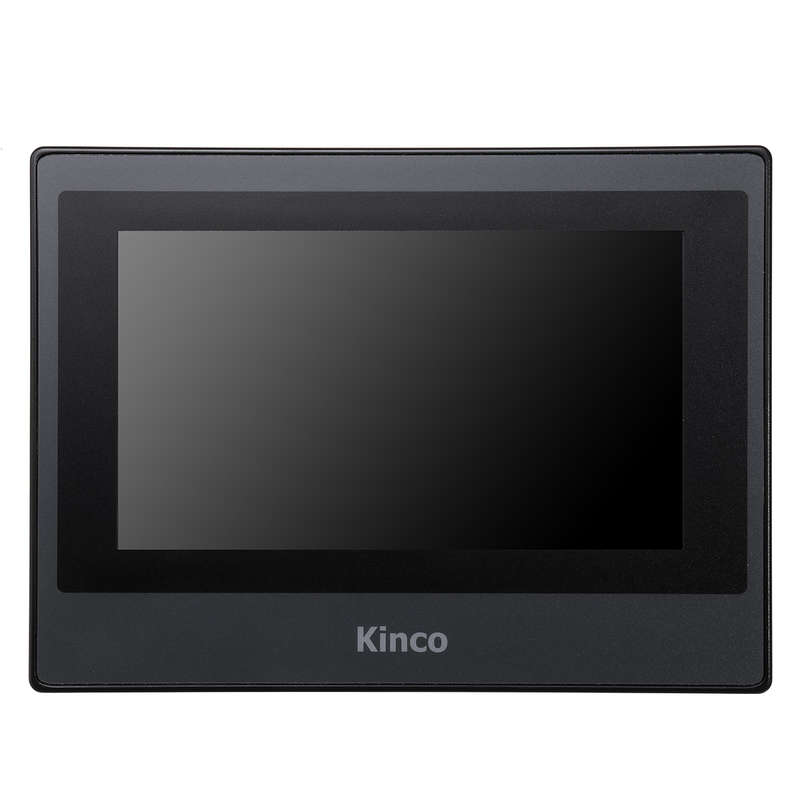

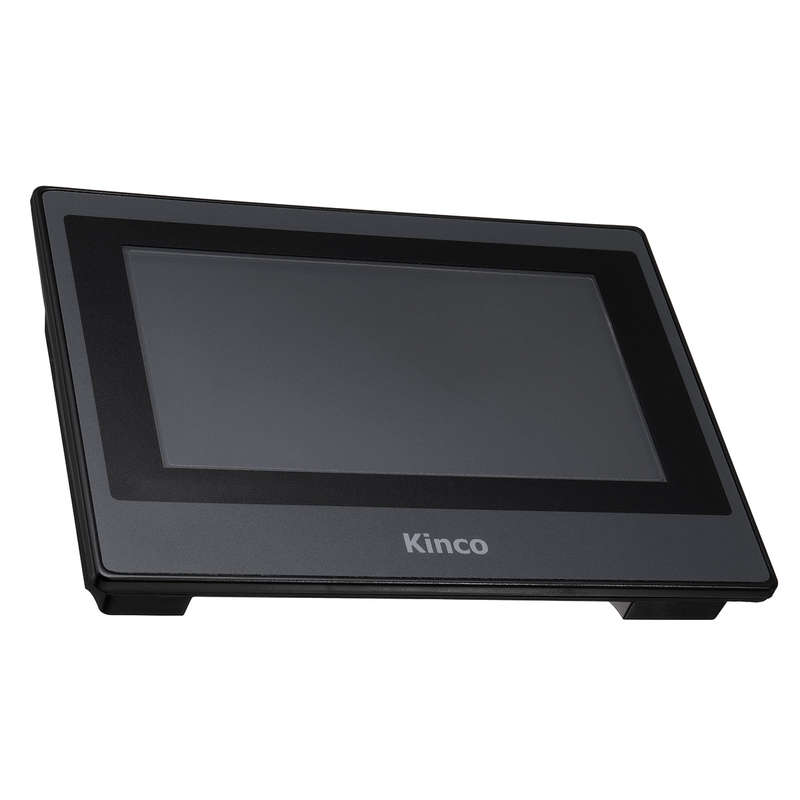

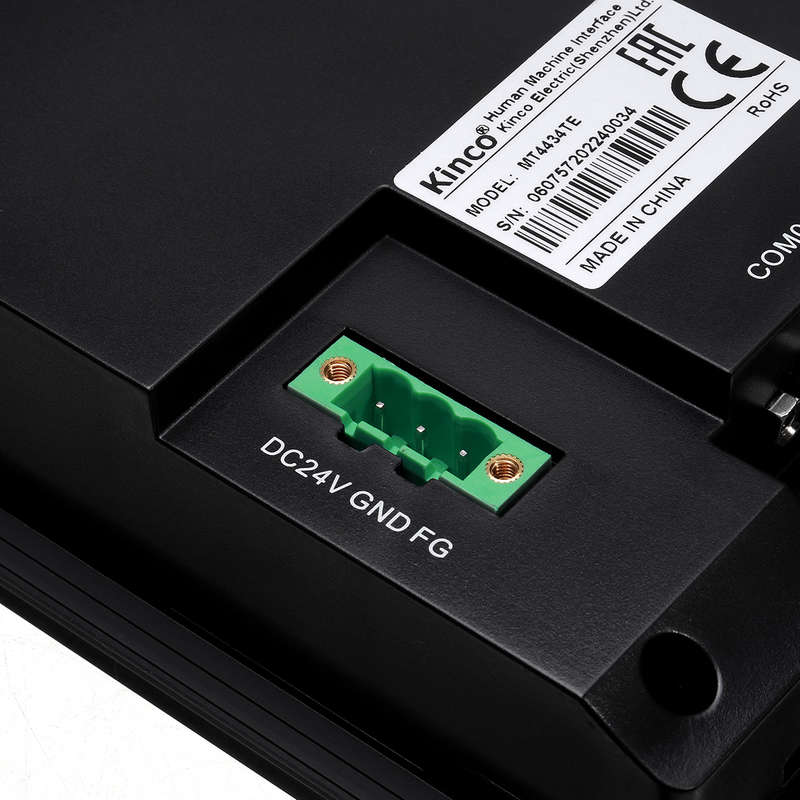

Detail Pictures:
