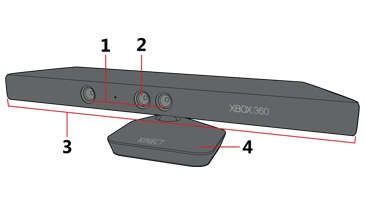

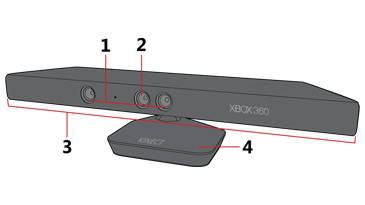

1) 3D Depth sensor (IR Emitter + IR Camera / Depth Sensor)
2) RGB camera (Color Sensor)
3) Microphone array
4) Tilt motor (for detecting floor and players in the playspace)
Kinect | Specifications |
Viewing angle | Field of View (FoV): 43° vertical x 57° horizontal |
Vertical tilt range | ±27° |
Frame rate (depth and color stream) | 30 frames per second (FPS) |
Audio format | 16-kHz, 24-bit mono pulse code modulation (PCM) |
Audio input characteristics | 4-microphone array 24-bit analog-to-digital converter (ADC) onboard signal processing (including acoustic echo cancellation & noise suppression) |
Accelerometer characteristics | 2G/4G/8G accelerometer configured for 2G range 1° accuracy detail limit (can help detect when the sensor is in an unusual orientation) |
