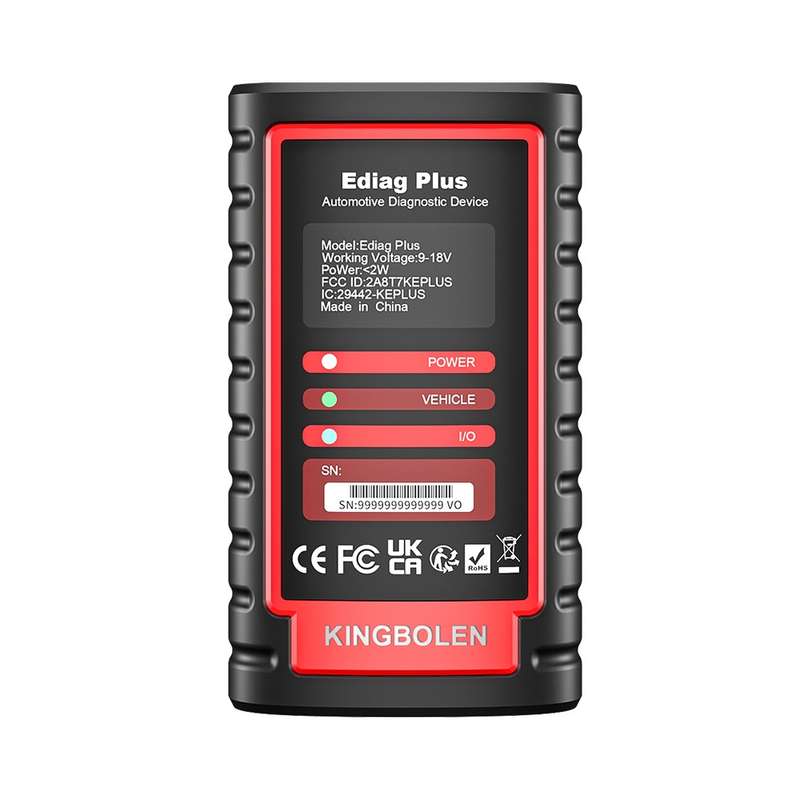

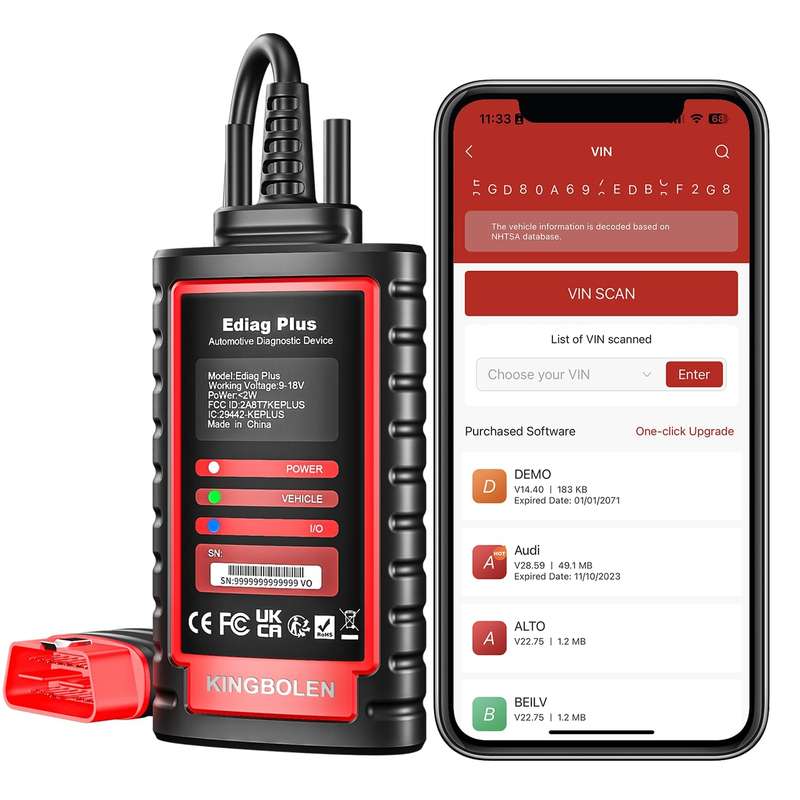

KINGBOLEN OBD2 Car Tester Diagnostics(Ediag Plus)
Basic parameters:
1. Shell material: ABS+PC+TPU rubber sleeve

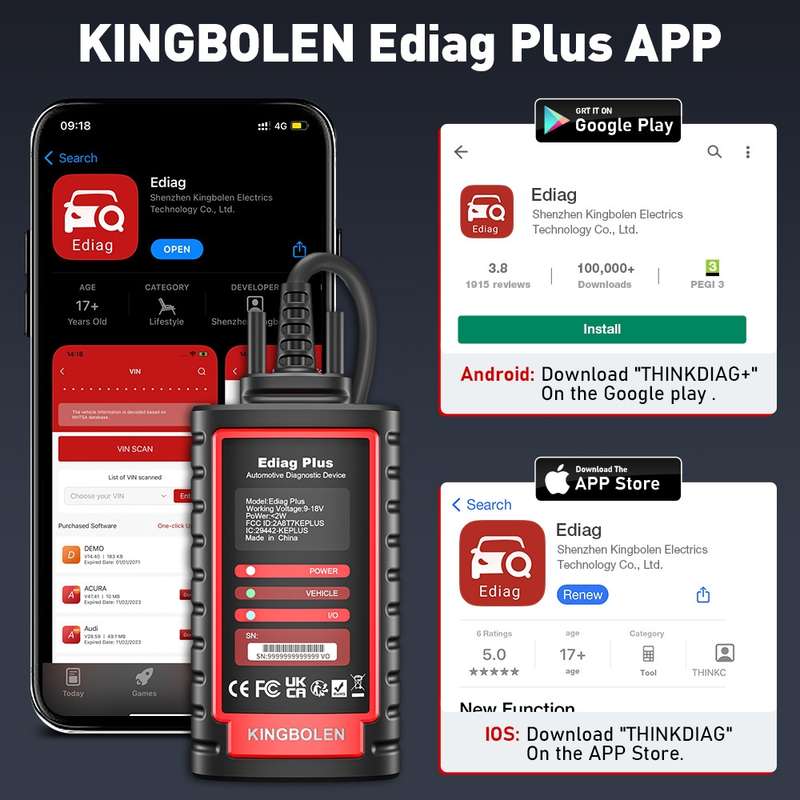

2. Support system: Android & IOS
3. Bluetooth: Hardware supports 5.0BLE, Bluetooth dual mode
4. Diagnostic interface: DB15
5. Working voltage: 12V
6. Language: English, Italian, French, Spanish, Portuguese, German, Turkish, Polish, Japanese, Russian, Greek, Chinese
7. Overall size: 120.5mmx65mmx29mm
8. OBD line length: 0.65 meters
Description:
1. Support CANFD protocol and support more models (Note: This is the car supported by CANFD protocol, Ediag Plus also supports other brands of cars, such as For BMW, Ford, Volkswagen, etc.)
2. Adopt CRC algorithm to accommodate more 8 ~ 64 bytes of data in CAN frame, run faster, and reduce the risk of undetected errors
3. The coding function is used to re-flash the vehicle control module, allowing you to update the computer software on the vehicle to a newer version and reprogram the adaptive data of certain components after repair or replacement, providing solutions for driving performance, fuel efficiency, power loss, fault codes, durability of mechanical components, etc., but please note that ecu coding is not suitable for all vehicles, please check the compatibility of the VIN number before purchasing

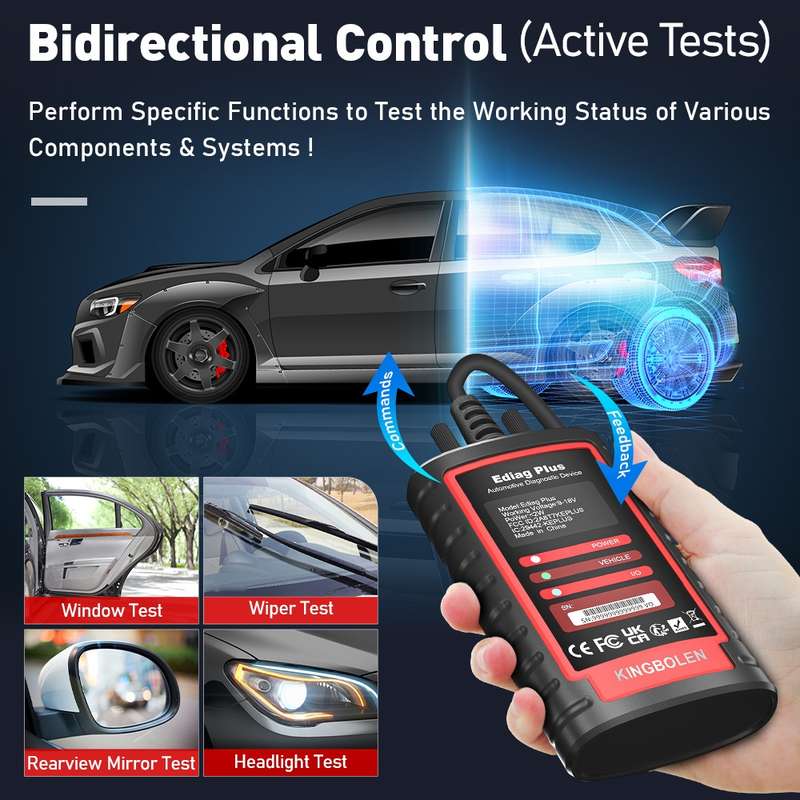

4. Bidirectional control capability, capable of performing active tests to access vehicle-specific subsystems and component tests, the tester outputs commands to the ECU to drive the actuator in order to determine the integrity of the system or component by reading ECU data, or by monitoring the operation of the actuator, in addition, it will also drive the solenoid valve and actuator for active testing to more easily identify errors, the bidirectional function is quite extensive, even opening the egr valve, observing the difference in idle response and oxygen sensor voltage, active tests vary by manufacturer, year and model, only available tests are displayed in the menu
5. Support vehicle-wide system diagnosis, 15 reset functions, including various car software, can delete car error codes and reset the system
6. Steering angle calibration: To reset the steering angle, you must first find the relative zero point position of the vehicle when it is traveling in a straight line. Using this position as a reference, the ECU can calculate the exact angle of left and right steering. After replacing the steering angle position sensor, replacing the steering mechanical parts (such as steering box, steering column, end tie rod, steering knuckle), doing four-wheel alignment, and repairing the car body, the steering angle must be reset
7. Electronic parking brake reset, if the brake pad wears the brake pad sensing line, the brake pad sensing line will send a signal sensing line to the on-board computer, requiring the brake pad to be replaced. After the brake pad is replaced, the brake pad must be reset, otherwise the vehicle alarm
8. Battery registration and battery maintenance, this function can reset the vehicle battery monitoring unit, clear the original low battery fault information, and perform battery matching
9. Sunroof reset, you can set the sunroof lock, rainy day closing, sliding/tilting sunroof memory function, outside temperature threshold, etc.
10. AFS reset (EGR), this function is used to initialize the adaptive headlight system. The adaptive headlight system can decide whether to automatically turn on the headlights based on the ambient light intensity, and adjust the headlight lighting angle in time while monitoring the vehicle speed and body posture
11. Erase code and reset: turn off the check engine light (MIL), clear the code and reset the monitor
12. Data flow: read and display real-time ECU/PCM Data Stream, graphically plots functions and stores freeze frame data
13. I/M Readiness: Displays whether various emission-related systems on the vehicle are operating properly and ready for inspection and maintenance testing

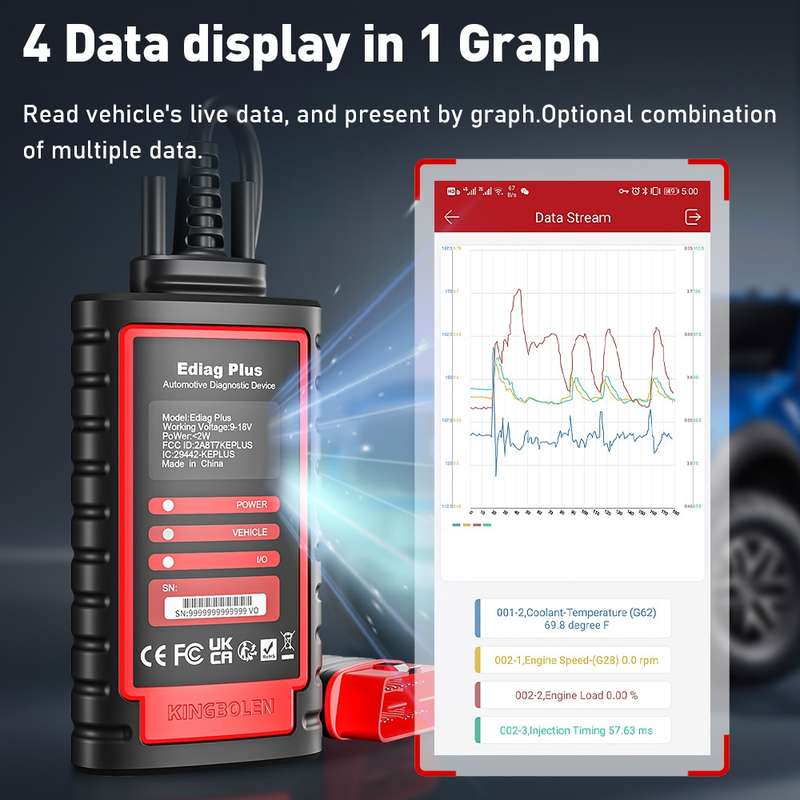

14. Read Live Data Stream: Displays information from a continuous data stream from the vehicle in a real-time graphical (waveform) display
15. View Freeze Frame Data: Checks certain vehicle conditions recorded by the onboard computer in the event of an emission-related fault
16. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed test from the vehicles onboard computer
17. Onboard Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems

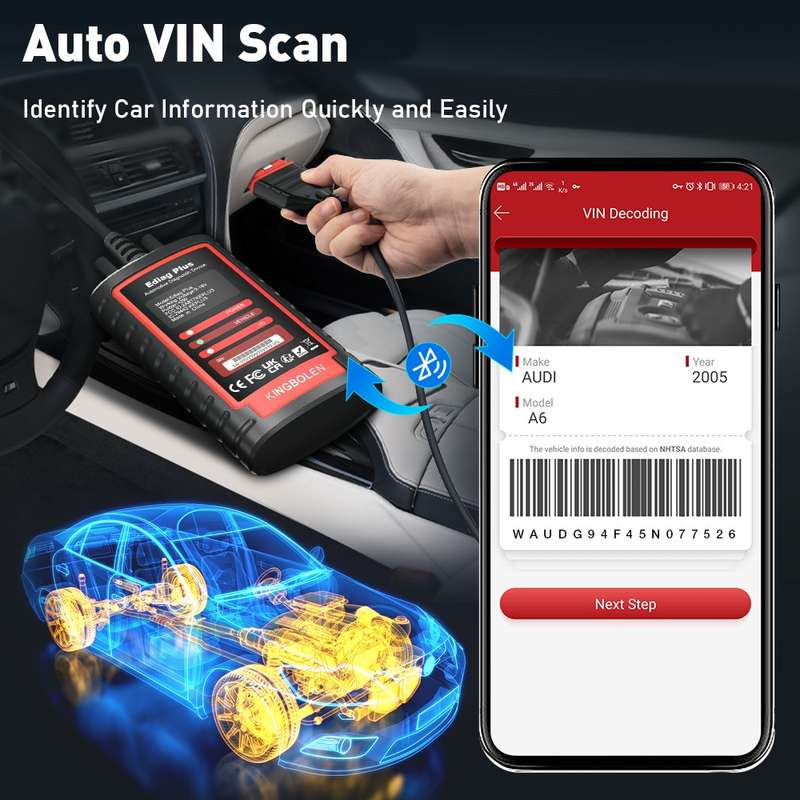

18. Read Vehicle Information: Displays information such as VIN (Vehicle Identification Number), CID (Calibration ID), and CVN (Calibration Verification Number)
19. Component Test: Certain vehicle components can be activated by commands sent from the scanner to test their operability
Protocol Compatible:
- CANFD
- ISO 14230-4 (KWP2000)
- ISO 15765-4 (CAN)
- ISO 9141-2 (iso)
- ISO 14229 (uds)
- SAE J1850 (VPW and PWM)
Package contents:
- Ediag Plus with obd2 cable
- Manual (multi-language)
- EVA storage bag
TBD0605269101A
