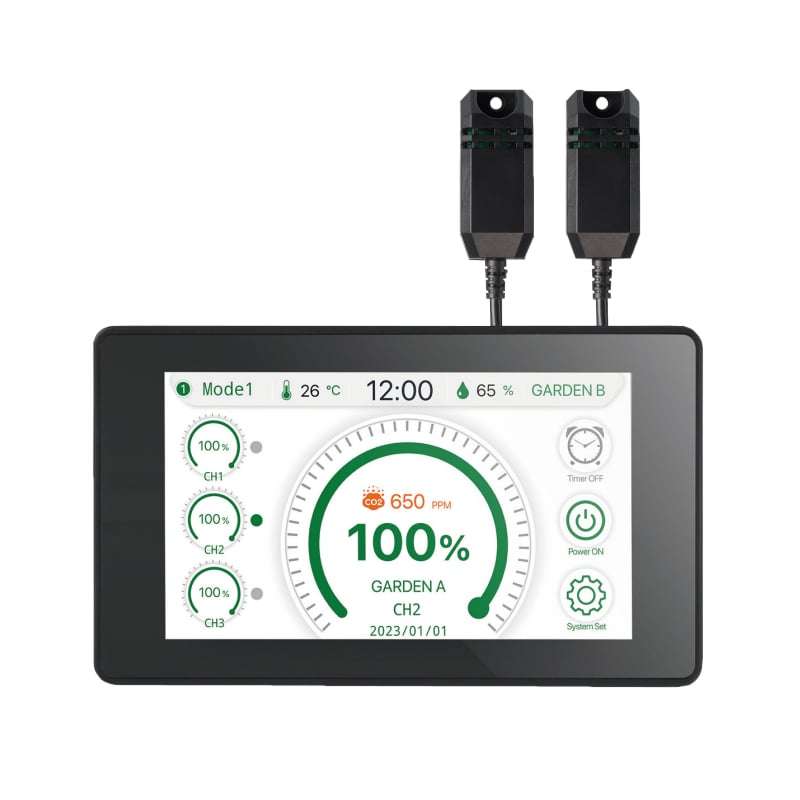

KINGBRITE LED LIGHT SMART CONTROLLER

The Kingbrite new generation master controller is a dual-channel module, each channel is programmable, allowing the user to control two separate grow areas or rooms. This controller uses an LCD touchscreen for easy navigation. The controller
timers operate on a standard 24-hour clock. It also comes with 5 custom modes to allow you to slowly dim your lights on and off to mimic the natural light cycle. It is also designed for different growth stages, so you can set different lights depending on what you need.

The controller can switch all the interconnected fixtures on and off with its internal timer, adjust them to your required output level (in percentage or exact output power) and even simulate sunrise and sunset to gradually adjust the climate in your grow room when your lights go on or off. This electronic controller replaces expensive lighting timers and contactors while preventing ballast current in-rush when switching on your lights

FEATURES:

• Control the lighting in your grow rooms
• LCD Touchscreen
• Control two separate rooms
• Support for up to 200 LED units
• Sunrise and sunset simulation supported
• Dimming support

SPECIFICATIONS:

• Control voltage outputs: 2 Zones (Groups). 1/2
• Number of control channels: 3
• Number of lights per output: 100 pcs max
• Max. cable length per group: 200 meters
• Match LED Fixture: 200PCS
• Power Dimming Scope: 0 - 100%
• Power Consumption: <3W
• Input Voltage: DC12V
• Output: 0 - 10V
• Sensor: 2pcs 2-in-1 Temp/Humidity Sensor
• Product Dimensions: 14.5 x 8.6 x 3.2 cm

WHAT'S IN THE BOX:

• Kingbrite LED Horticulture light Smart Controller x1
• 2-in-1 Temp/Humidity Sensor x2
• Power Adapter x1
• Rj11 Cables x2
• Set Screws x4
• User Manual x1
