Kingkong F3 Micro Brushed FLight-control Board Base SPRACINGF3 6DOF for Q100 DI

Package weight: 0.02 kg
Kingkong F3 Micro Brushed FLight-control Board Base SPRACINGF3 6DOF for Q100 DIY Quadcopter Frame
Notice:
This Flight Control Board has been update to F3 hardware. About more detail you can download the .








Description:
Brand Name: Kingkong
Item Name: F3 Brush Flight Controller
Dimension: 21mm*26mm
Thickness: 1.2mm
Weight: 3g
Features:

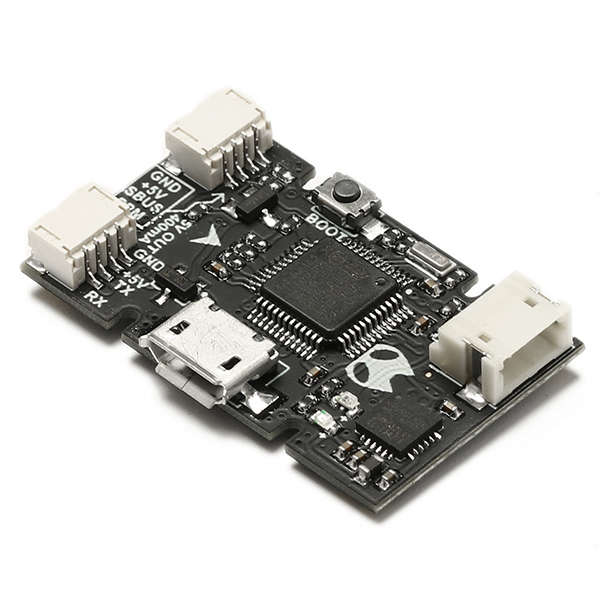

1.This FC use SPRACINGF3 6DOF hardware, software compatibility with SPRACINGF3 in BetaFlight configurator.

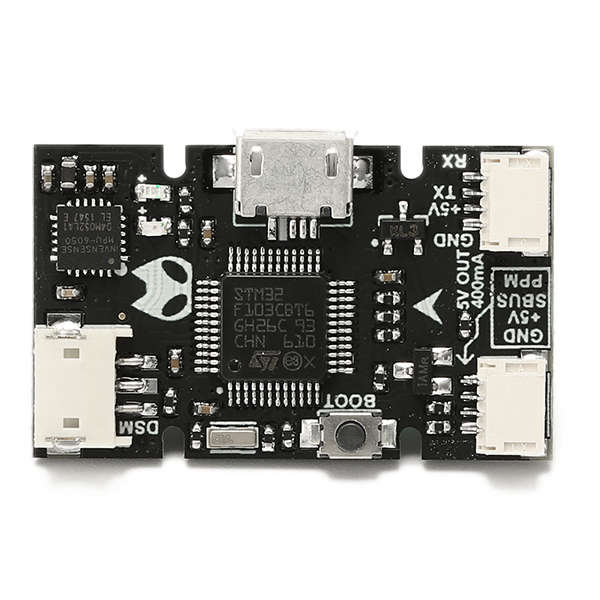

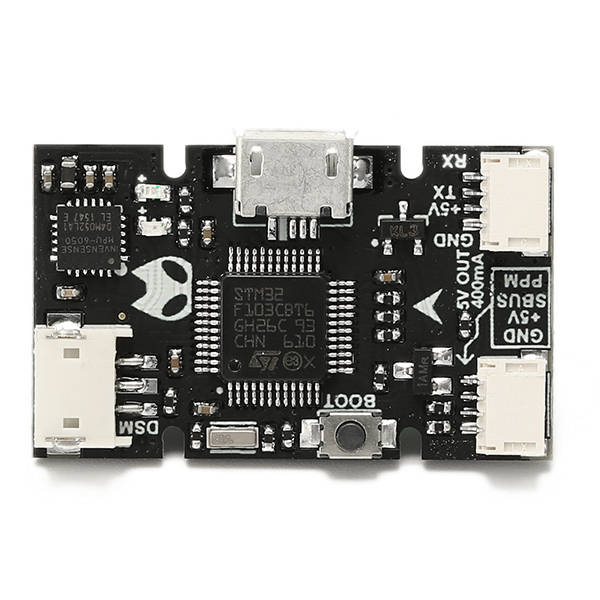

2.F3 flight controller use MPU6050 and STM32F103CB micro controller (128Kbytes flash memory, 20Kbytes SRAM, ARM 72Mhz Cortex-M3)
3.The FC use 3oZ 4 lays high quality PCB, support quadrocopter or hexrcopter,

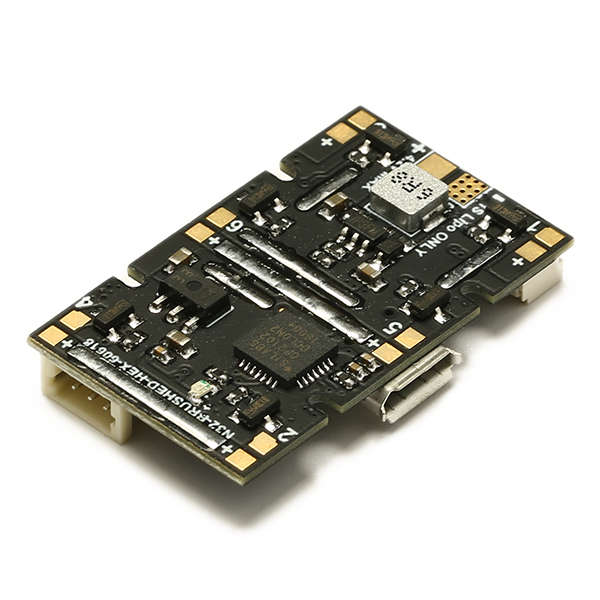

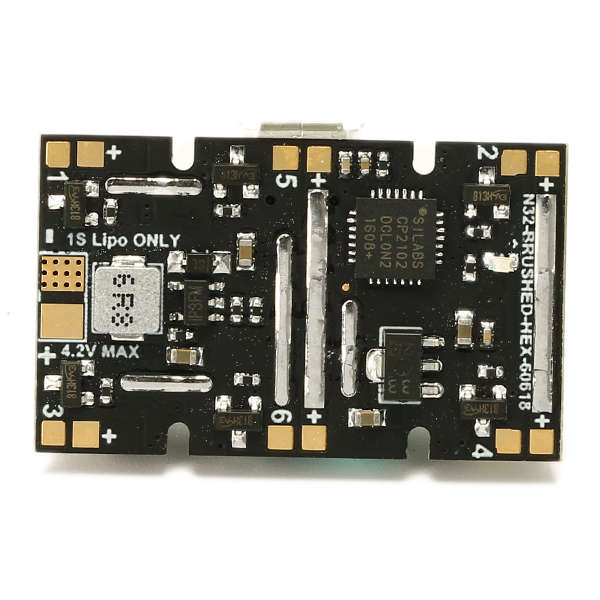

4.Total 6 ways, brushed motor continuous working current up to 6A, onboard 5V
5.Convert 1s battery input to 5V for RX receiver or other equipment , current output 400mA maximum.
6.This 5V/400mA BEC can working reliable when input voltage from 1.8V to 4.35V

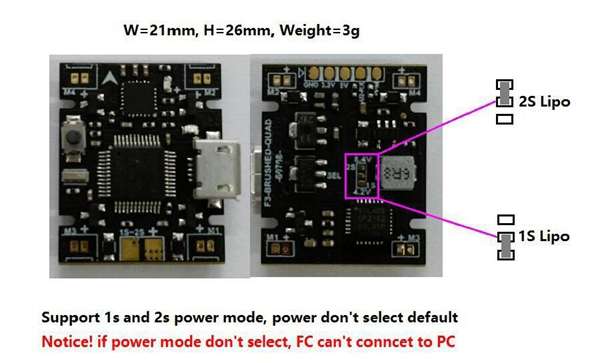

7.The FC use 3oZ 4 lays high quality PCB, support 1s or 2s lipo power mode (power mode don't select default, Notice! If power mode don't select, FC can't connect to PC).

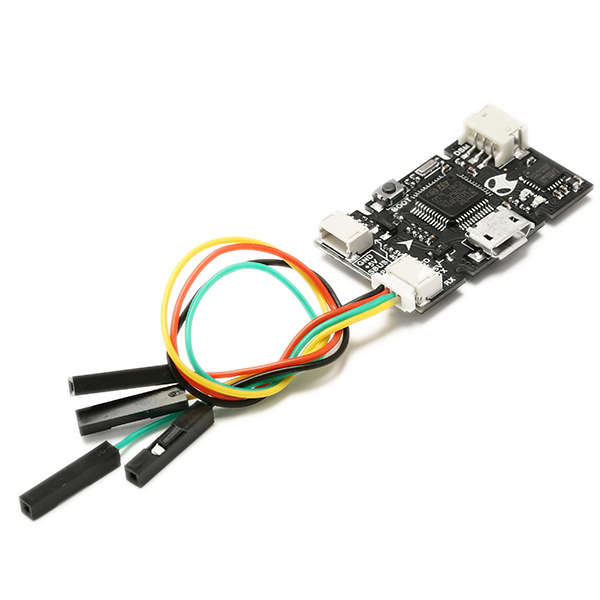

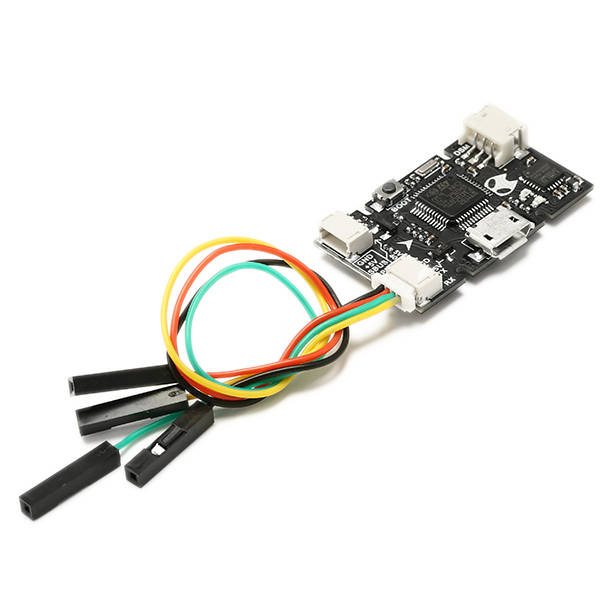

The wire cable color:
Blue - PPM
Red - Sbus
Yellow - 5V
Black - GDN

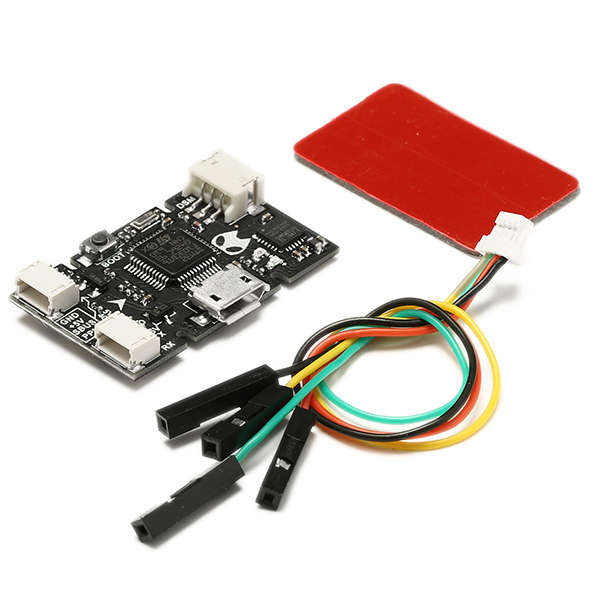

Package included:
1 x Kingkong F3 Brush Flight Controller
