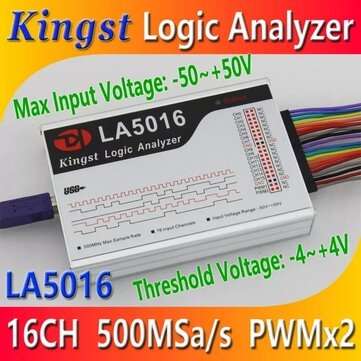

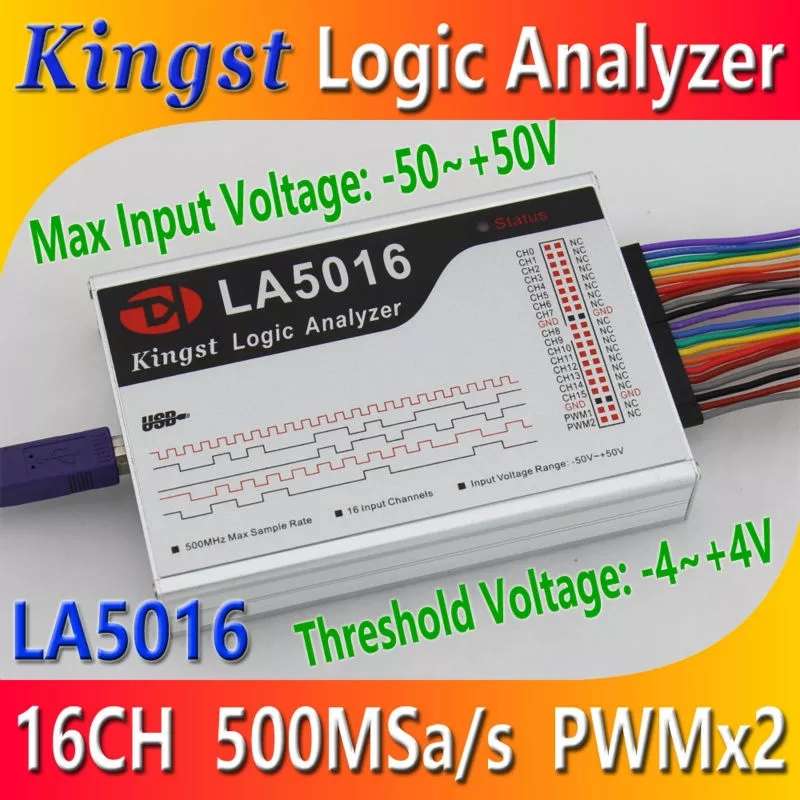

Kingst LA5016 USB Logic Analyzer 500M Max Sample Rate 16 Channels 10B ... (TYPE: LA5016(16CHANNELS))

20 available / new

R4,233.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3525

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643382334

SELECTED OPTION:
TYPE: LA5016(16CHANNELS)

Software KingstVIS official website download address:

Description:

LA5016 is a high-performance logic analyzer with 16 channels and 200M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.

LA5016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved.

Features:

Portable and lightweight

500M sampling rate @ full channels

Large sampling depth and support compression

The built-in PWM generator

Compatible USB2.0/3.0 interface

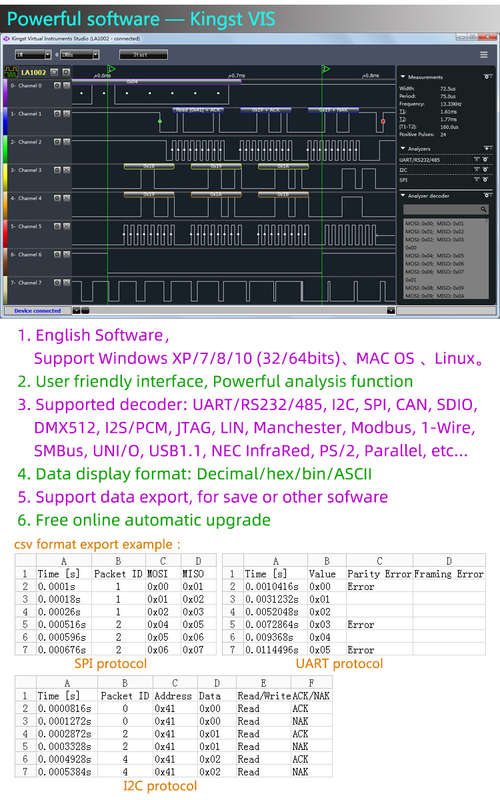

Powerful software and easy to use

Support online upgrade automatically

Specification:

Input channels number: 16

Max sampling rate: 500M

Measurement bandwidth: 80M

Min pulse width can be captured: 6.25ns

Hardware memory size: 1Gbits

Hardware sampling depth: 50M/channel

Max compressed depth: 10G/channel

Input voltage range: -50V ~ +50V

Input impedance: 220K, 12pF

Adjustable threshold voltage: -4V ~ +4V, step: 0.01V

PWM channels number: 2

PWM frequency range: 0.1 ~ 20MHz

PWM frequency adjust step: 10ns

PWM pulse width adjust step: 5ns

PWM output voltage: +3.3V

PWM output impedance: 50

Standby current: 200mA

Max operating current: 400mA

Support OS: Windows XP, Vista, Windows 7/8/10(32bit/64bit)

Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc...

Package included:

1 xKingstLA5016 USB Logic Analyzer 2 x 9P Test Lead Set 1 x 2P Test Lead Set 20 x Test Hook Clip 1 x USB2.0 Cable 1 x CD-ROM
Details picture:
