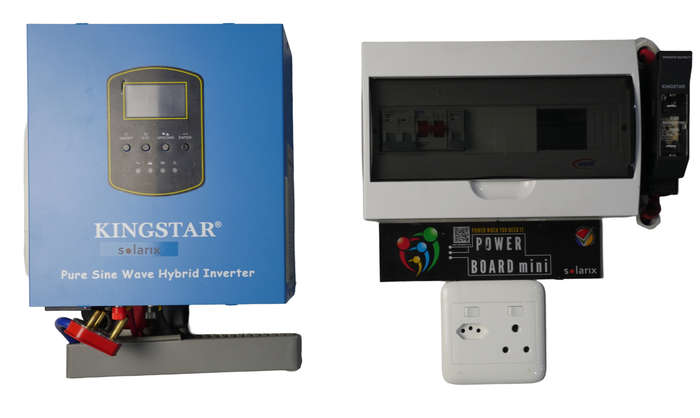

KingStar Solarix Pre-Built 1.5KVA Hybrid Pure Sine Wave 12V Powerboard - hybrid solar inverter de...

KingStar Solarix Pre-Built 1.5KVA Hybrid Pure Sine Wave 12V Powerboard - hybrid solar inverter designed for off-grid applications. It features a pure sine wave output, ensuring clean and stable power for sensitive appliances. The inverter includes a built-in PWM 30A solar charger controller, supporting up to 400W of solar power. It operates on a 12V DC battery system and is compatible with mains voltage or generator power for charging. The unit offers configurable AC and solar input priority via an LCD display and includes a smart battery charger design with a cold start function.

Product Overview
The Solarix KingStar 1500VA is a hybrid solar inverter designed for off-grid applications. It features a pure sine wave output, ensuring clean and stable power for sensitive appliances. The inverter includes a built-in PWM 30A solar charger controller, supporting up to 400W of solar power. It operates on a 12V DC battery system and is compatible with mains voltage or generator power for charging. The unit offers configurable AC and solar input priority via an LCD display and includes a smart battery charger design with a cold start function. It is suitable for small to medium solar setups, providing flexibility between solar and grid/generator power sources. The product comes with a 6-month warranty.

Key Features
- Rated power output of 1500VA (1.5KVA) with a pure sine wave output.
- Built-in PWM 30A solar charge controller supporting up to 400W solar input.
- Operates on a 12V DC battery system with a maximum solar voltage (VOC) of 30V.
- Configurable AC and solar input priority via an LCD display.
- Compatible with mains voltage or generator power for charging and operation.
- Smart battery charger design with cold start function.
- Includes battery cables and a cable with a South African 3-pin plug.
- Batteries are not included and require 2x 12V deep cycle batteries for operation.
- The unit comes in a blue retail box and carries a 6-month warranty.

Specifications
- Product Code : SOLPBMKS1500VA
- Product Overview : KingStar Solarix Pre-Built 1.5KVA Hybrid Pure Sine Wave 12V Powerboard
- Waveform: Pure Sine Wave
- Rated Power: 1500VA/1200W
- AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
- Input: 230VAC 50/60HZ
- Output: 230VAC 50/60HZ
- DC Input: 12VDC 120A
- DC Output: 13.75VDC 30A
- Max Solar Voltage (VOC): 30V
- Solar Rated Power: 400W
- Solar Charger Controller: PWM 30A
- Parallel Capability: Yes, 9 units
- Smart Battery Charger design for optimized battery performance
- Auto Restart While AC Is Recovering
- Overload and Short Circuit Protection
- Compatible with Mains Voltage or Generator Power
- Configurable AC and Solar Input Priority via LCD Display
- Cold Start Function
