The modules are sealed and brand new.

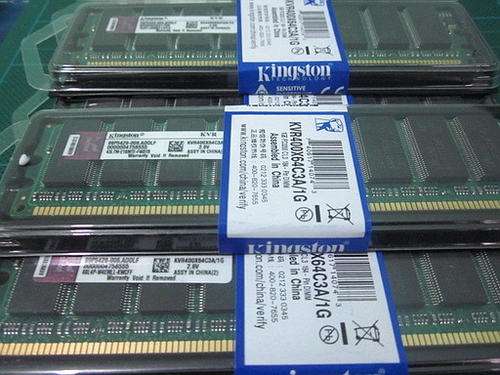

KVR400X64C3A/1G
1GB 128M x 64-Bit DDR400
CL3 184-Pin DIMM
The components on this module include sixteen SAMSUNG 64M x 8-bit (16M x 8-bit x 4 Bank) DDR400 SDRAM
in TSOP packages. This 184-pin DIMM uses gold contact fingers and requires +2.6V. The electrical and mechanical
specifications are as follows:
SPECIFICATIONS
Clock Cycle Time (tCK) 5ns (min.) / 10ns (max.)
Row Cycle Time (tRC) 55ns (min.)
Refresh Row Cycle Time (tRFC) 70ns (min.)
Row Active Time (tRAS) 40ns (min.) / 70,000ns (max.)
Single Power Supply of +2.6V (+/- .1V)
Power (IDD0) 5.408 W (operating)
Operating Temperature 0° C to 70° C
Storage Temperature -55° C to +150° C
UL Rating 94 V - 0
