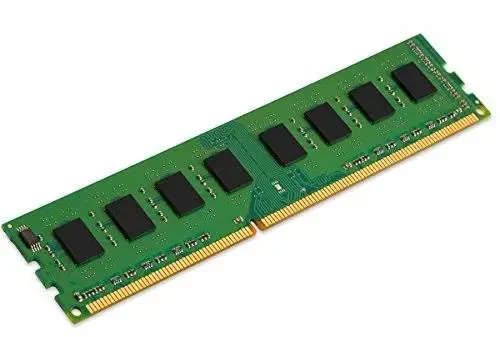

Kingston 8GB DDR3 PC3-12800 RAM DIMM

Tested and working 100%

Kingston KVR16N11H/8 8GB DDR3 1600MT/s Non ECC Memory RAM DIMM

This document describes ValueRAM's 1G x 64-bit (8GB) DDR31600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. This 240-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: FEATURES JEDEC standard 1.5V (1.425V ~1.575V) Power Supply VDDQ = 1.5V (1.425V ~ 1.575V) 800MHz fCK for 1600Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 11, 10, 9, 8, 7, 6 Programmable Additive Latency: 0, CL - 2, or CL - 1 clock 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] Bi-directional Differential Data Strobe Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%) On Die Termination using ODT pin Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C Asynchronous Reset PCB : Height 1.180 (30.00mm), double  sided  component

Payment within 48 hrs
