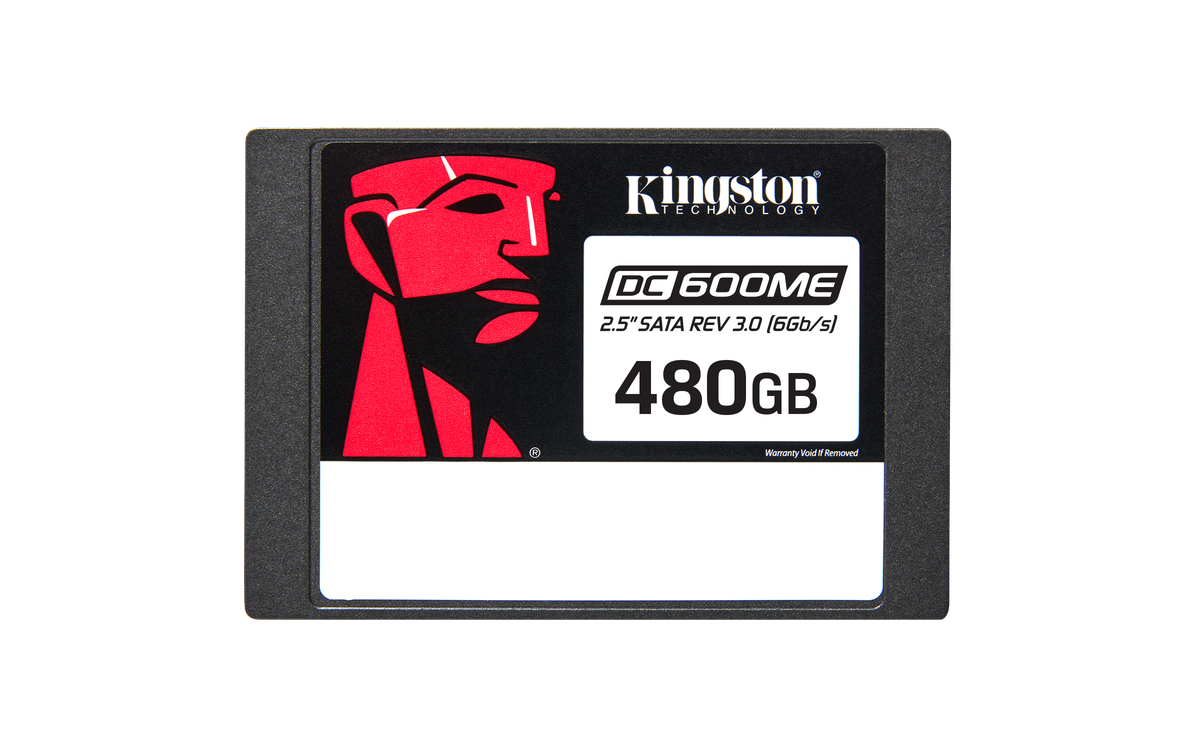

Kingston DC600M Enterprise 2.5-inch 480GB SATA Internal SSD SEDC600ME/480G
The Kingston DC600ME 480GB is a mixed-use enterprise solid-state drive developed for data centres, system integrators, cloud service providers and compatible server environments. Its 2.5-inch SATA design combines 3D TLC NAND, a DRAM cache and consistent I/O performance with hardware-based power-loss protection. This encrypted DC600ME model also supports TCG Opal 2.0 and AES 256-bit hardware-based encryption for organisations that need additional protection for sensitive data.
Enterprise Storage for Mixed-Use Workloads
Designed for mixed-use server workloads, the DC600ME delivers sequential read speeds of up to 560MB/s and sequential write speeds of up to 470MB/s. Steady-state 4K random performance of up to 94,000 read IOPS and 41,000 write IOPS supports demanding business applications where predictable storage behaviour is important.
Key Features:
- 480GB enterprise storage capacity for compatible servers, storage platforms and data-centre systems.
- SATA Rev. 3.0 interface operating at up to 6Gb/s, with backwards compatibility for SATA Rev. 2.0 systems.
- 3D TLC NAND and an integrated DRAM cache support consistent mixed-use performance.
- Hardware-based power-loss protection uses hold-up capacitors to help protect user data during an unexpected loss of power.
- TCG Opal 2.0 support and AES 256-bit hardware-based encryption help protect sensitive information.
- Enterprise SMART tools provide access to reliability, usage, remaining-life, wear-levelling and temperature information.
- Rated endurance of 876TBW and one drive write per day over five years for enterprise workloads.

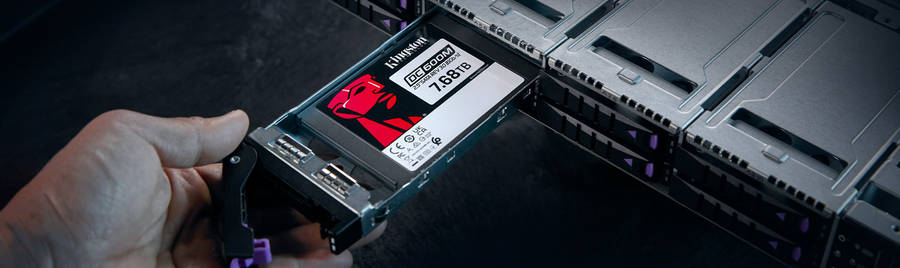

Designed for Data-Centre Environments
The DC600ME is optimised for server RAID applications where low latency and I/O consistency are key design requirements. Its 2.5-inch, 7mm form factor and hot-plug capability make it suitable for supported enterprise systems that use SATA storage infrastructure.
Hardware-Based Power-Loss Protection
On-board hold-up capacitors provide hardware-based power-loss protection. This feature is designed to help protect user data if power is interrupted unexpectedly and to support successful drive reinitialisation when the system is powered on again.
Consistent Quality of Service
The drive is engineered for predictable latency and IOPS consistency, helping system integrators and service providers manage storage performance across mixed-use applications and service-level requirements.
Hardware-Based Data Security
Unlike the standard DC600M, the DC600ME adds AES 256-bit hardware-based encryption and support for the TCG Opal 2.0 security standard. These capabilities provide a suitable foundation for compatible enterprise systems that require managed, self-encrypting storage.
Technical Specifications:
| Specification | Details |
|---|
| Brand | Kingston |
| Series | DC600ME |
| Manufacturer Part Number | SEDC600ME/480G |
| Product Type | Mixed-use enterprise internal solid-state drive |
| Capacity | 480GB |
| Form Factor | 2.5 inch, 7mm |
| Interface | SATA Rev. 3.0, 6Gb/s |
| Backwards Compatibility | SATA Rev. 2.0, 3Gb/s |
| NAND | 3D TLC |
| DRAM Cache | Yes |
| Encryption | Hardware-based AES 256-bit encryption |
| Security Standard | TCG Opal 2.0 |
| Sequential Read | Up to 560MB/s |
| Sequential Write | Up to 470MB/s |
| Steady-State 4K Random Read | Up to 94,000 IOPS |
| Steady-State 4K Random Write | Up to 41,000 IOPS |
| DC600ME QoS Latency, Read/Write | 500/130µs at the 99.999 percentile |
| Typical Latency, Read/Write | Less than 130µs / less than 70µs |
| Hardware Power-Loss Protection | Yes |
| Hot-Plug Capable | Yes |
| Wear Levelling | Static and dynamic wear levelling |
| Enterprise SMART Tools | Reliability tracking, usage statistics, remaining life, wear levelling and temperature monitoring |
| Endurance | 876TBW; 1 DWPD over five years |
| Idle Power Consumption | 1.30W |
| Average Power Consumption | 1.45W |
| Maximum Read Power | 1.6W |
| Maximum Write Power | 3.6W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 69.9 × 100 × 7mm |
| Weight | 92.34g |
| Operating Vibration | 2.17G peak, 7800Hz |
| Non-Operating Vibration | 20G peak, 102,000Hz |
| MTBF | 2 million hours |
| Unrecoverable Bit Error Rate | 10-17 |
| Warranty and Support | Limited |
