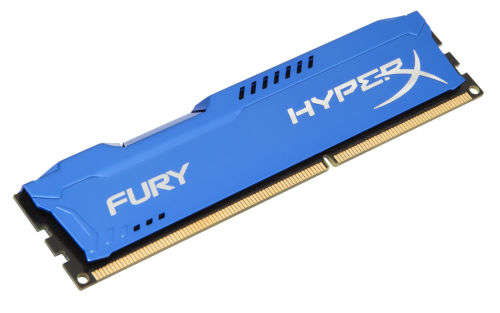

Kingston Hyper X Fury 16GB DDR3 Memory

DESCRIPTION

HyperX HX313C9FB/4 is a 512M x 64-bit (4GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM) 1Rx8 memory module, based on eight 512M x 8-bit DDR3 FBGA components. This module has been tested to run at DDR3-1333 at latency timing 9-9-9 at 1.5V.

FEATURES

• JEDEC standard 1.5V (1.425V ~1.575V) Power Supply

• VDDQ = 1.5V (1.425V ~ 1.575V) • 667MHz fCK for 1333Mb/sec/pin

• 8 independent internal bank • Programmable CAS Latency: 9, 8, 7, 6

• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock • 8-bit pre-fetch

• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]

• Bi-directional Differential Data Strobe • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)

• On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C

• Asynchronous Reset • Height 1.291” (32.80mm) w/heatsink, single sided component
