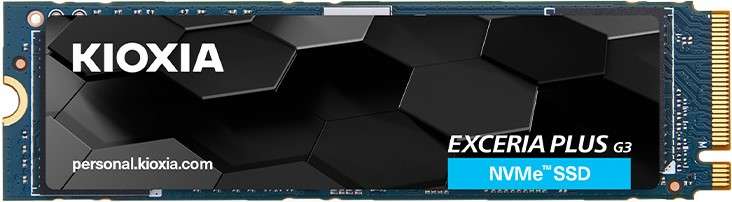

The KIOXIA EXCERIA PLUS G3 SSD series features a powerful PCIe 4.0 interface and delivers improved performance for gamers and video editors. With up to 2TB of capacity, this M.2 2280 single-sided series is excellent for mainstream desktops and notebooks that support the latest PCIe 4.0 standard.
Product Overview
The KIOXIA EXCERIA PLUS G3 SSD series delivers high-performance storage with a PCIe 4.0 interface, offering sequential read/write speeds of up to 5,000/3,900 MB/s and random IOPS of 770,000/950,000 (1TB). Designed for gamers and video editors, it features BiCS FLASH NVMe 1.4 technology in a compact, single-sided M.2 2280 form factor, supporting up to 2TB capacity for mainstream desktops and notebooks. Its slim design enables easy motherboard installation, reducing cable clutter for sleek system upgrades.
Features
-BiCS FLASH
-NVMe 1.4 Technology
-M.2 2280 Form Factor
-PCIe Gen4 x4
-SSD Utility Management Software
Specifications
-Product Code: LSD10Z001TG8
-Description: EXCERIA PLUS G3 SSD 1TB
-Capacity: 1TB
-Form Factor: M.2 Type 2280-S4-M
-Interface: PCI Express Base Specification Revision 4.0 (PCIe)
-Flash Memory type: BiCS FLASH TLC
-Interface Maximum Speed: 64 GT/s (PCIe Gen4x4)
-Dimension (Max: LxWxH): 80.15 x 22.15 x 2.63 mm
-Interface Protocol: NVM Express Base Specification 1.4
-Weight: 1TB: 7.0 g (typ.)
-Max Sequential Read Speed*1: 5,000 MB/s
-Max Sequential Write Speed*1: 3,900 MB/s
-Max Random Read Speed*2: 1TB: 770,000 IOPS
-Max Random Write Speed*2: 950,000 IOPS
-Endurance: TBW*3: 1TB: 600 TB
-MTTF: 1.5 million hours
-Operating Temperature: 0 degC (Ta) to 85 degC (Tc)
-Storage Temperature: -40 degC to 85 degC
-Certification: RoHS compliant*5
-Shock Resistance: 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
-Vibration: 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
-Supply Voltage: 3.3 V plus or minus 5 %
-Power Consumption
-PS3: 50 mW (typ.)
-PS4: 5 mW (typ.)
-Power Consumption (Active): 1TB: 4.9 W (typ.)
