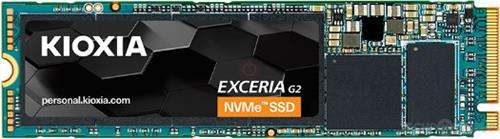

Kioxia Exceria 500GB M.2 PCIe NVMe SSD - 500GB capacity with 10% overprovisioning (46.3GB). Uses BiCS FLASH TLC 112-layer 3D NAND technology, PCIe 3.0 x4 interface with NVMe 1.3 protocol, Sequential read speed up to 2,100 MB/s and write speed up to 1,700 MB/s, Random read/write IOPS 360,000/400,000. Endurance rated at 200 TBW, MTBF 1.5 million hours, with SLC write cache and charge trap topology, Form factor M.2 2280 single-sided, dimensions 80.15 x 22.15 x 2.23 mm. Operates 0-85 deg C, Retail Box, 1 year warranty
The Kioxia Exceria 500GB M.2 PCIe NVMe SSD offers high-speed storage performance in a compact form factor. With sequential read speeds of up to 2,100 MB/s and write speeds of 1,700 MB/s, it's ideal for boosting your system's responsiveness.
-Product code: LRC20Z500GG8
-Description: Kioxia Exceria 500GB M.2 PCIe NVMe Solid State Drive
-Capacity: 500 GB
-Overprovisioning: 46.3 GB / 10.0 %
-Part Number: LRC20Z500GG8
-Sequential Read: 2,100 MB/s
-Sequential Write: 1,700 MB/s
-Random Read: 360,000 IOPS
-Random Write: 400,000 IOPS
-Endurance: 200 TBW
-MTBF: 1.5 Million Hours
-Drive Writes per Day (DWPD): 0.2
-SLC Write Cache: Yes
-Form Factor: M.2 2280 (Single-Sided)
-Interface: PCIe 3.0 x4
-Protocol: NVMe 1.3
-Name: BiCS5
-Type: TLC
-Technology: 112-layer
-Speed: 1066 MT/s
-Capacity: 4 chips @ 1 Tbit
-Toggle: 4.0
-Topology: Charge Trap
-Dies per Chip: 2 dies @ 512 Gbit
-Planes per Die: 2
-Word Lines: 128 per NAND String
-87.5% Vertical Efficiency
-Read Time (tR): 56 microseconds
-Program Time (tProg): 484 microseconds
-Die Read Speed: 571 MB/s
-Die Write Speed: 66 MB/s
-Page Size: 16 KB
-Block Size: 1344 Pages
-Plane Size: 448 Blocks
-Manufacturer: Phison
-Name: PS5012-E12S-32
-Architecture: ARM 32-bit Cortex-R5
-Core Count: Quad-Core
-Frequency: 667 MHz
-Foundry: TSMC
-Process: 12 nm
-Flash Channels: 8 @ 667 MT/s
-Chip Enables: 4
-Controller Features: DRAM
-TRIM: Yes
-SMART: Yes
