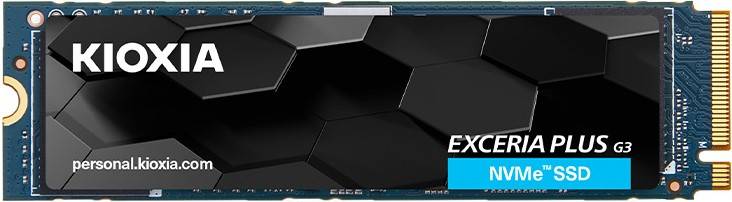

EXCERIA PLUS G3 SSD 1TB LSD10Z001TG8 - High-performance 1TB NVMe M.2 2280 SSD with PCIe Gen4x4 interface and NVM Express 1.4 protocol. Uses BiCS FLASH TLC memory. Sequential read speed up to 5,000 MB/s and write speed up to 3,900 MB/s. Random read/write IOPS up to 770,000/950,000. Endurance rated at 600 TBW with MTTF of 1.5 million hours. Dimensions 80.15 x 22.15 x 2.63 mm and weighs 7 grams. Operating temp 0-85°C and storage temp -40 to 85°C. Certified RoHS compliant with shock resistance and vibration tolerance. Power consumption about 4.9 W active.
Product Overview
The KIOXIA EXCERIA PLUS G3 SSD series delivers high-performance storage with a PCIe 4.0 interface, offering sequential read/write speeds of up to 5,000/3,900 MB/s and random IOPS of 770,000/950,000 (1TB). Designed for gamers and video editors, it features BiCS FLASH NVMe 1.4 technology in a compact, single-sided M.2 2280 form factor, supporting up to 2TB capacity for mainstream desktops and notebooks. Its slim design enables easy motherboard installation, reducing cable clutter for sleek system upgrades.
Features
BiCS FLASH
NVMe 1.4 Technology
M.2 2280 Form Factor
PCIe® Gen4 x4
SSD Utility Management Software
Specifications
Product Code: LSD10Z001TG8
Description: EXCERIA PLUS G3 SSD 1TB
Capacity: 1TB
Form Factor: M.2 Type 2280-S4-M
Interface: PCI Express® Base Specification Revision 4.0 (PCIe®)
Flash Memory type: BiCS FLASH TLC
Interface Maximum Speed: 64 GT/s (PCIe® Gen4x4)
Dimension (Max: LxWxH): 80.15 x 22.15 x 2.63 mm
Interface Protocol: NVM Express Base Specification 1.4
Weight: 1TB: 7.0 g (typ.)
Max Sequential Read Speed*1: 5,000 MB/s
Max Sequential Write Speed*1: 3,900 MB/s
Max Random Read Speed*2: 1TB: 770,000 IOPS
Max Random Write Speed*2: 950,000 IOPS
Endurance: TBW*3: 1TB: 600 TB
MTTF: 1.5 million hours
Operating Temperature: 0 (Ta) to 85 (Tc)
Storage Temperature: -40 to 85
Certification: RoHS compliant*5
Shock Resistance: 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration: 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage: 3.3 V ±5 %
Power Consumption
PS3: 50 mW (typ.)
PS4: 5 mW (typ.)
Power Consumption (Active): 1TB: 4.9 W (typ.)
