Specifications:

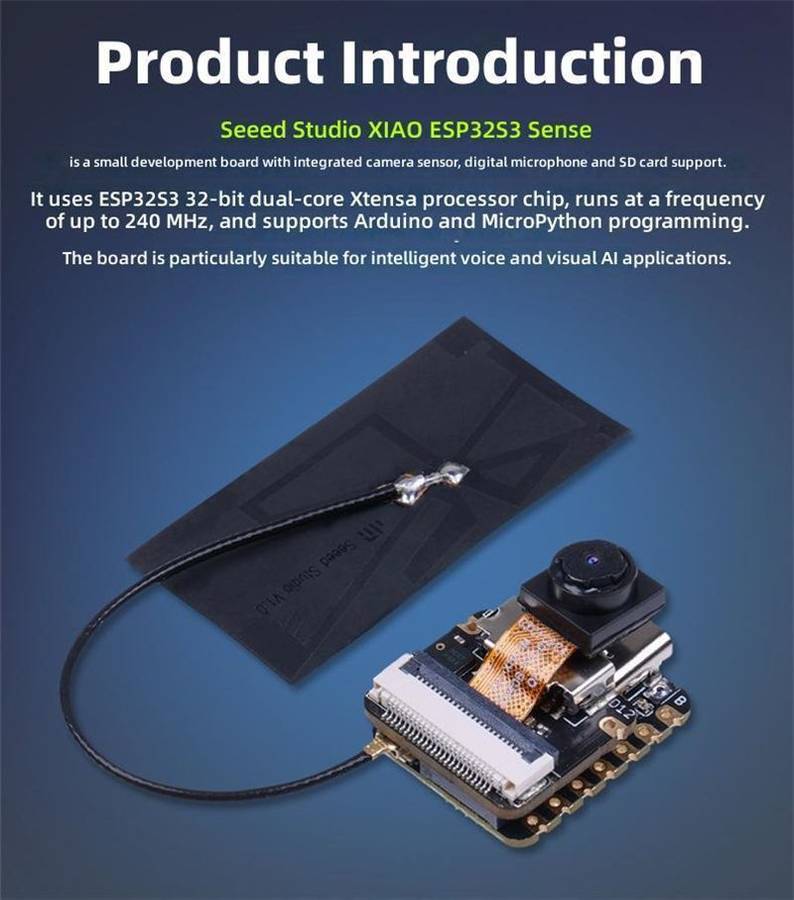

Processor: ESP32 32-bit dual-core Xtensa processor, up to 240MHz
Connectivity: 2.4GHz Wi-Fi, Bluetooth 5.0, Bluetooth Mesh
Camera Sensor: Detachable OV2640, resolution 1600x1200 (compatible with OV5640 sensor)
Microphone: Built-in digital microphone
Power Inputs: Type-C (5V @ 38.3mA) or Li-ion Battery (3.8V @ 43.2mA with expansion board)
Web Application Power Consumption:
Type-C: Average 5V/138mA, Peak during photo capture 5V/341mA
Battery: Average 3.8V/154mA, Peak during photo capture 3.8V/304mA
Microphone & SD Card Operations Power Consumption:
Type-C: Average 5V/46.5mA, Peak 5V/89.6mA
Battery: Average 3.8V/54.4mA, Peak 3.8V/108mA
Storage Options: 8MB PSRAM, 8MB Flash, external MicroSD card slot (up to 32GB FAT storage)
Dimensions: 21 x 17.5mm
Features:
1. High-performance Dual-core Processor: Equipped with an ESP32 32-bit dual-core Xtensa processor running at up to 240MHz, providing powerful computational capability for advanced applications.

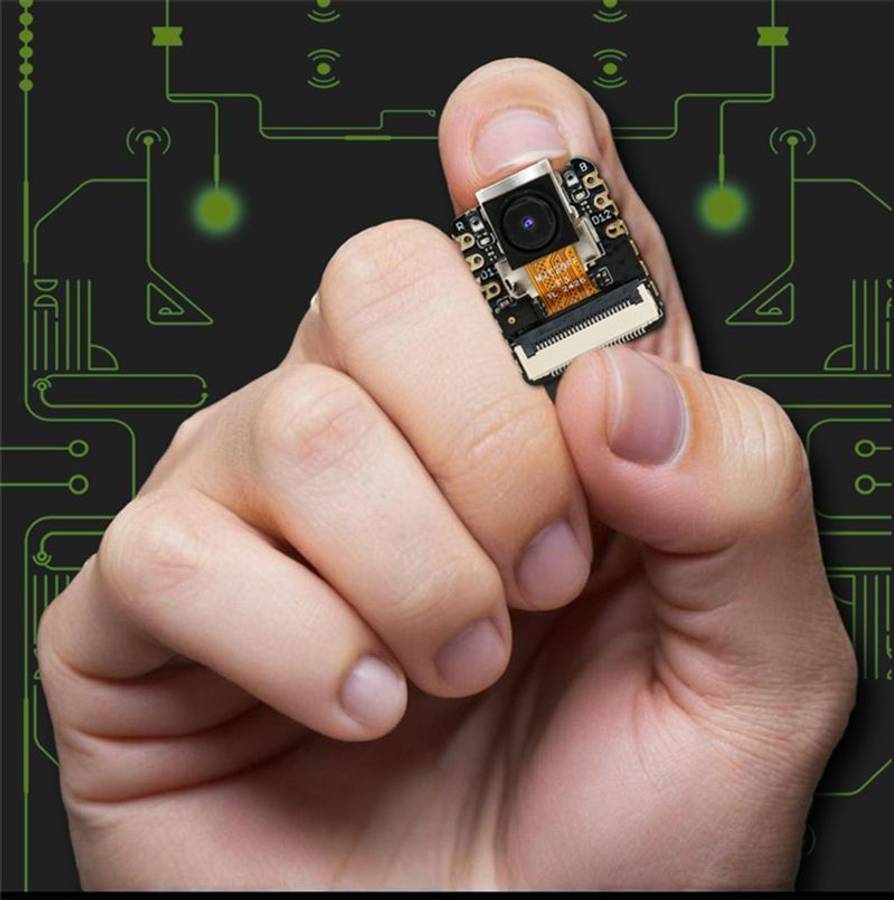

2. Compact Design for Space-saving Projects: Features a thumb-sized form factor (21x17.5mm), perfect for compact devices such as wearables and portable IoT projects with limited space.
3. Enhanced Connectivity: Supports 2.4GHz Wi-Fi and Bluetooth 5.0 (including Bluetooth Mesh technology) for seamless wireless communication and extended coverage with U.FL antenna support for range exceeding 100m.

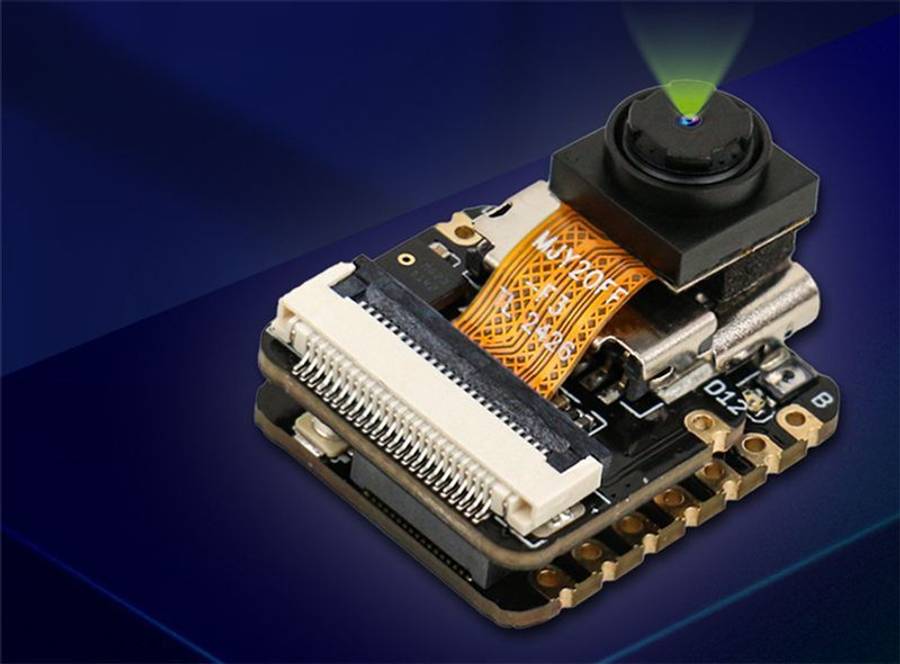

4. Customizable Camera Setup: Includes a detachable OV2640 camera sensor with 1600x1200 resolution, compatible with OV5640 options, offering flexibility for various imaging tasks.
5. Optimized Power Management: Designed with intelligent power modes, including a deep sleep mode consuming as little as 14A, and incorporates lithium battery charging management features for efficient power use.

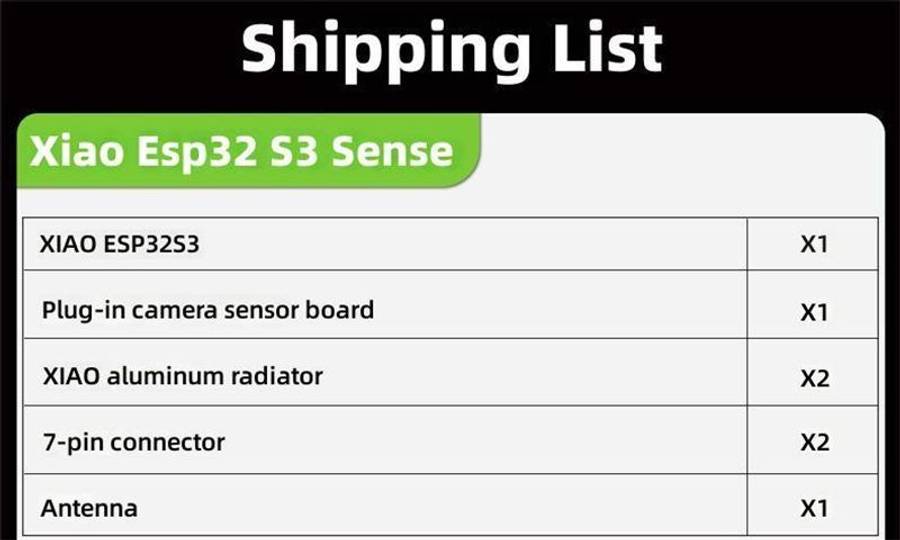

Package Included:

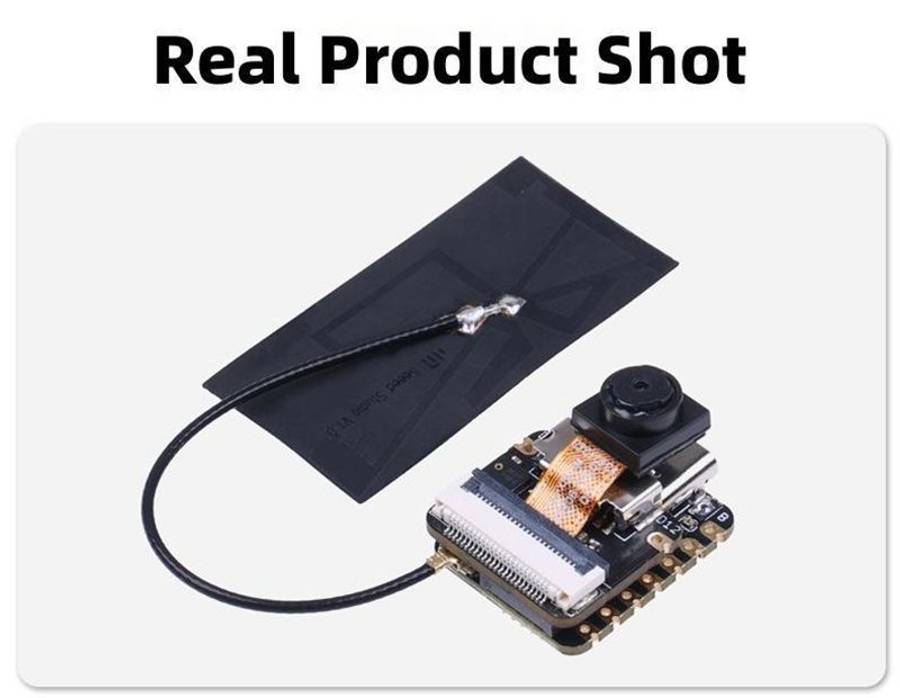

1 x XIAO ESP32 S3 Sense Kit
