Specifications:
Model: XY8030S
Input Voltage: 12V~90V
Output Voltage: 0~80V
Output Current: 0~30A
Power Output: 2400W
Accuracy (Voltage): ±0.5% + 1 digit
Accuracy (Current): ±0.5% + 3 digits
Voltage Resolution: 0.01V
Current Resolution: 0.01A
Output Ripple Typical Value: Vpp 200mV
Efficiency of Conversion: 95%
Screen Size: 1.8-inch Full-View High-Brightness True Color LCD
Storage Data Groups: 10 groups
Soft Start: Yes
MPPT Function: Supports MPPT solar charging
Protection Mechanisms:
Anti-reverse: Yes
Output Reverse Current Protection: Yes
Input Under-voltage (LVP): 10-95V, default 10V
Over-voltage (OVP): 0-87V, default 80V
Over-current (OCP): 0-32A, default 32A
Over-power (OPP): 0-2800W, default 2600W
Over-temperature (OTP): 60-110°C, default 110°C
Over-time Out (OHP): Adjustable (1 min to 99 hours 59 min), off by default
Over-capacity (OAH): 4200kAh, off by default
Over-energy (OWH): 4200kWh, off by default
External Over-temp (ETP): 0-110°C, off by default
Features:
1.High Precision Control: Offers fast and accurate control with a voltage resolution of 0.01V and current resolution of 0.01A, ensuring reliable operation in various applications.
2.Efficient Power Conversion: Achieves an impressive 95% energy conversion efficiency, reducing energy loss and optimizing performance.
3.Advanced Protection Mechanisms: Comprehensive safeguards including anti-reverse, over-voltage, over-current, over-temperature, and more to ensure safe operation.

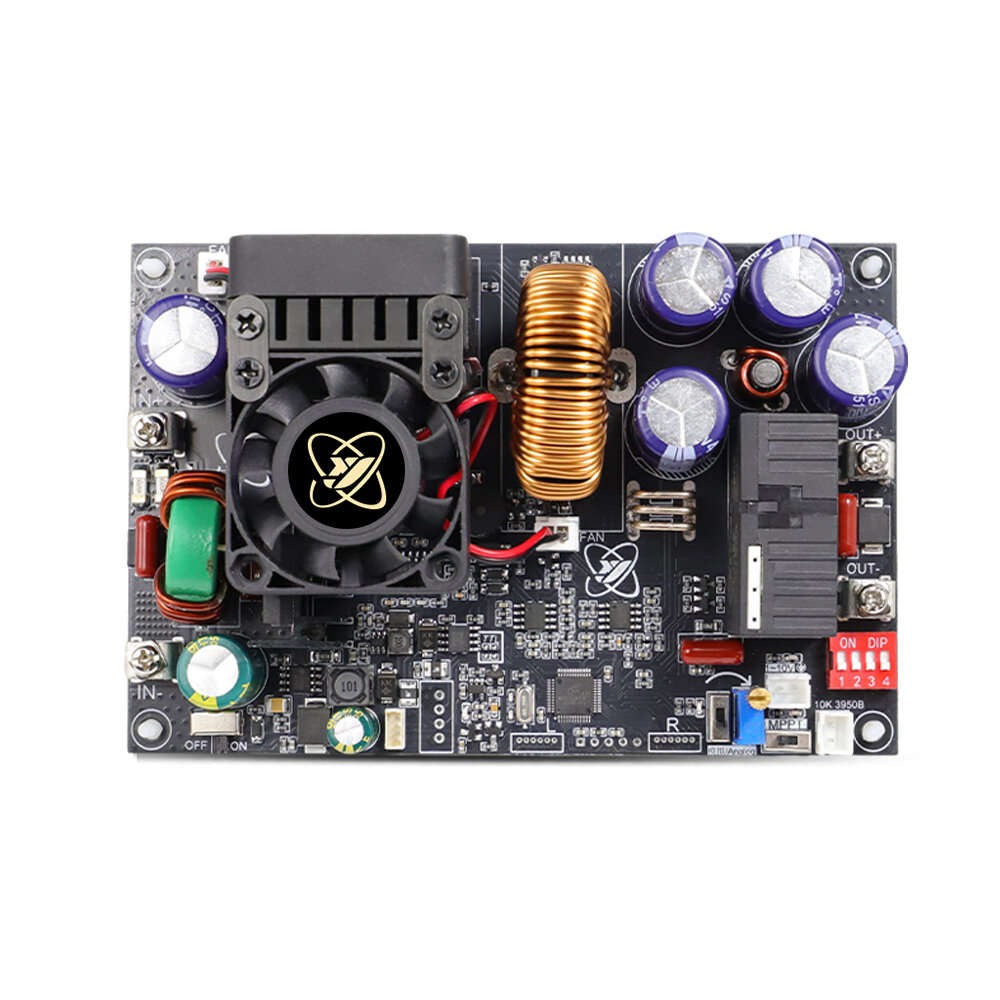

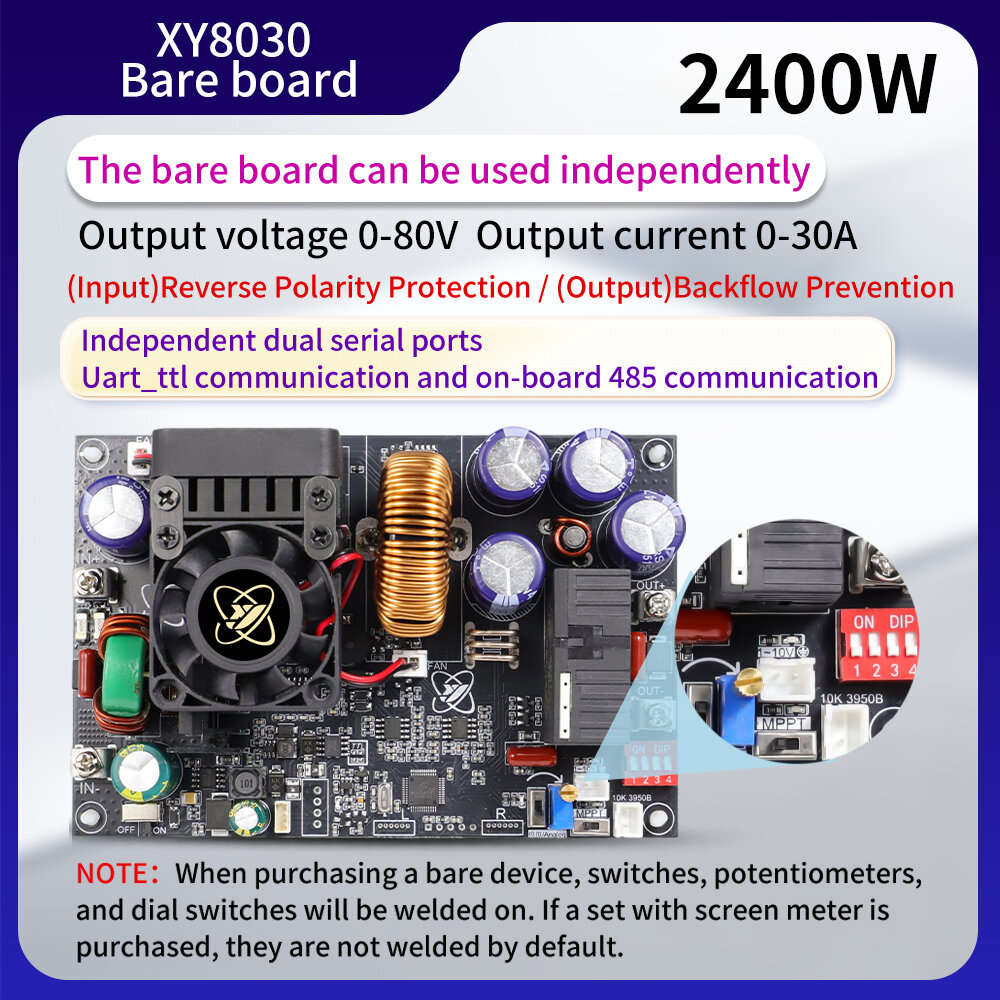

4.Compact and Lightweight Design: Compact size (bare board: 86x50x45mm) with a sleek build weighing only 410g with packaging, making it portable without compromising power output.

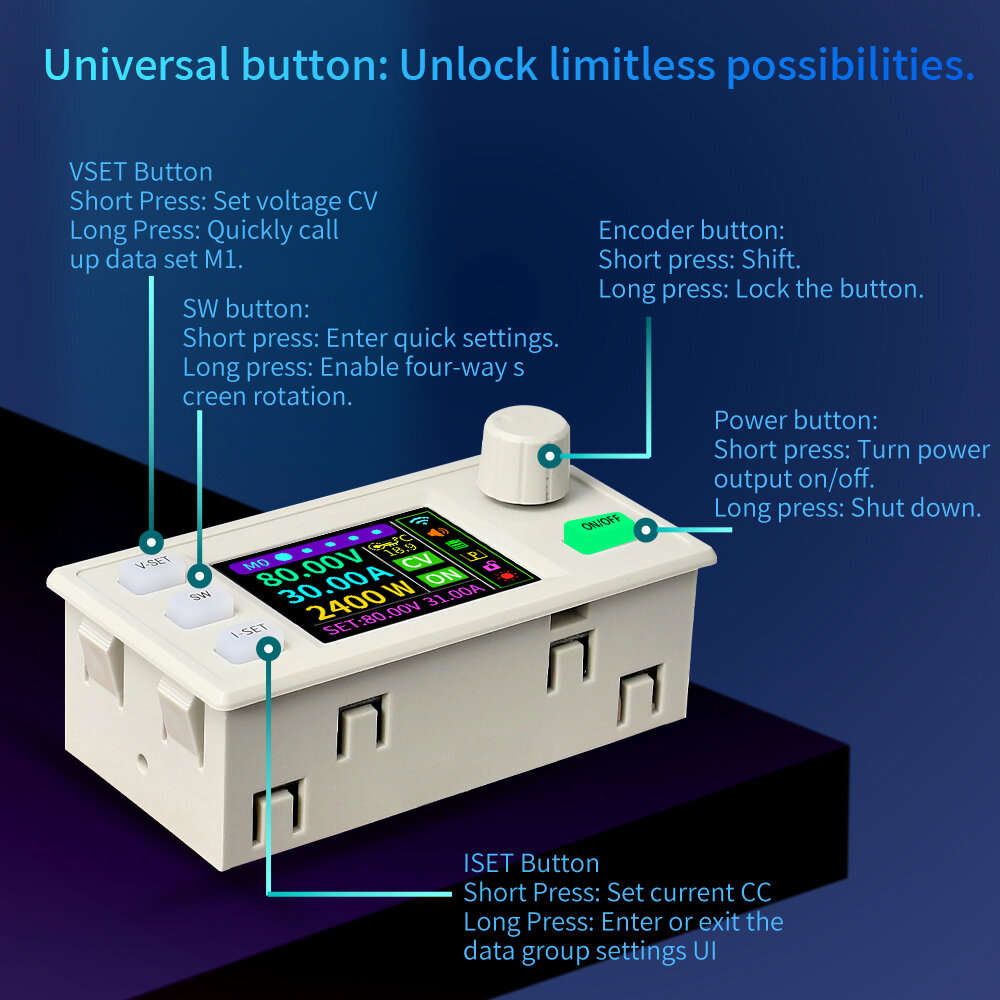

5.Enhanced User Interface: Features a 1.8-inch True Color LCD for easy monitoring and adjustment of voltage, current, and other critical settings.
Package Included:
