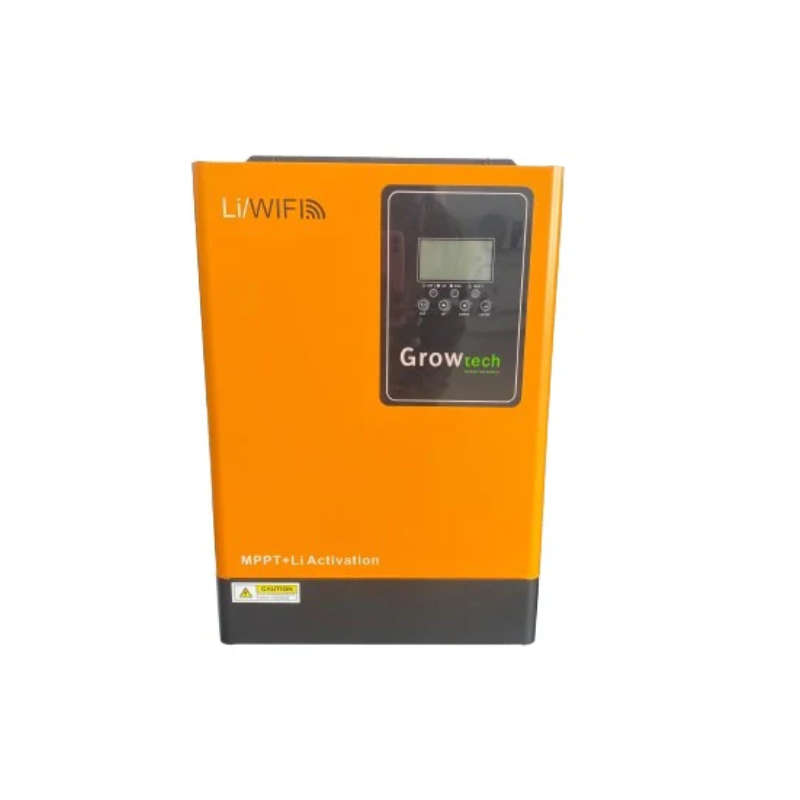

Kithi Group 5kw Growtech Inverter

Kithi Group 5kw Growtech Inverter

Key Features:

• Pure Sine Wave Output: Delivers clean and stable power, making it suitable for sensitive electronics.
• Built-in MPPT Solar Charge Controller: Optimizes solar energy harvesting for maximum efficiency.
• High PV Input Voltage Range: Supports a maximum PV array open circuit voltage of 500VDC.
• Multiple Output Priorities: Offers options such as UTL (Utility), SOL (Solar), SBU (Solar + Battery + Utility), and SUB (Solar + Utility + Battery).
• WiFi Remote Monitoring (Optional): Allows for real-time monitoring and management of the system.
• Battery Equalization Function: Enhances battery performance and extends lifespan.
• Cold Start Function: Enables the inverter to operate without grid power.

Specifications:

• Rated Power: 5.5KVA / 5.5KW
• Battery Voltage: 48VDC
• Maximum PV Array Power: 5500W
• Maximum PV Array Open Circuit Voltage: 500VDC
• Maximum Solar Input Current: 18A
• Maximum Solar Charge Current: 100A
• Maximum AC Charge Current: 80A
• Maximum Charge Current (PV + AC): 100A
• Dimensions: 438 x 295 x 105 mm
• Weight: 9 kg

This inverter is compatible with various battery types, including lithium batteries, and supports communication via RS485. It is designed to operate efficiently in a wide range of temperatures, from -10°C to 50°C, and can handle humidity levels between 5% and 95% (non-condensing).
