Kitronik (56115) OLED Display Board, BBC micro:bit, 128 X 64 Resolution

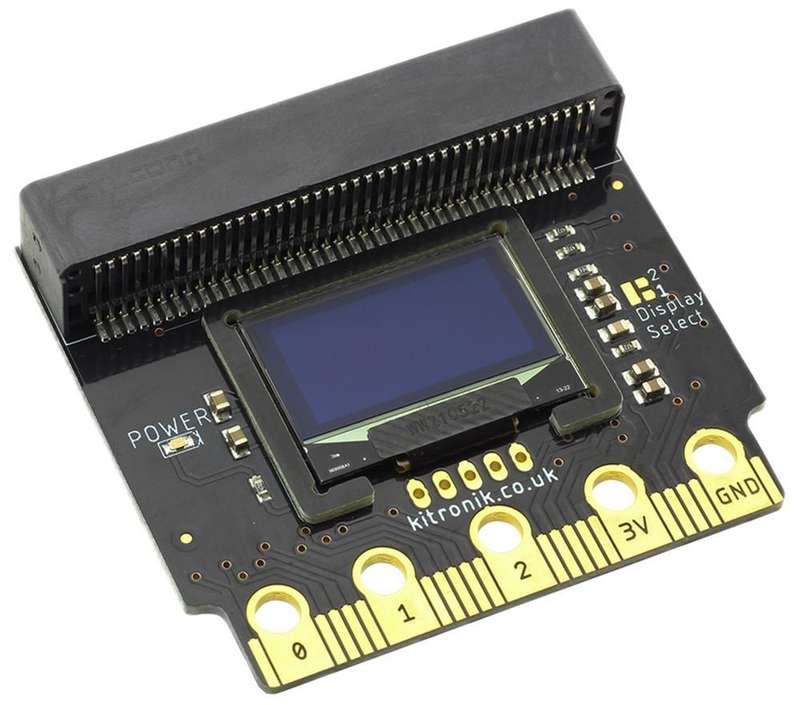

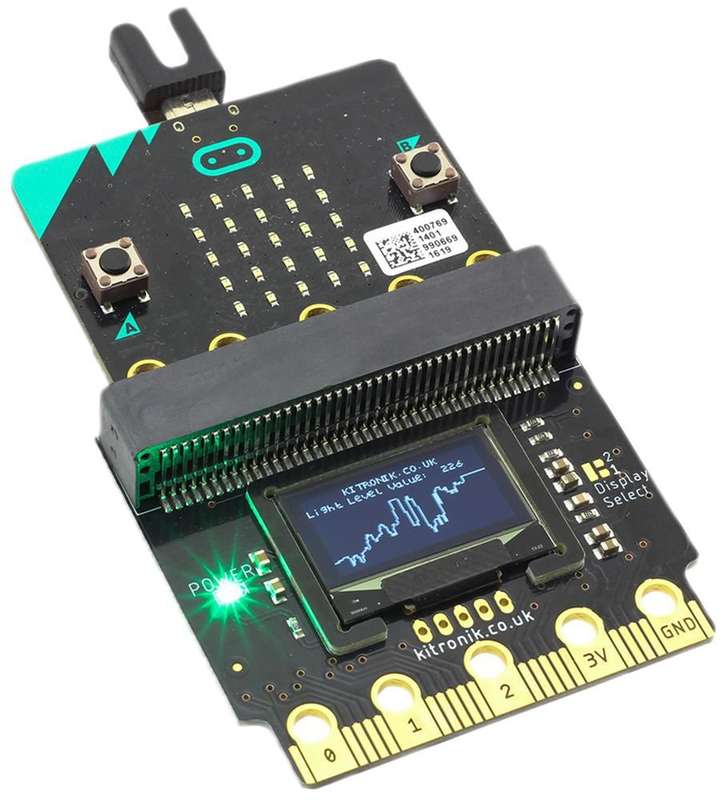

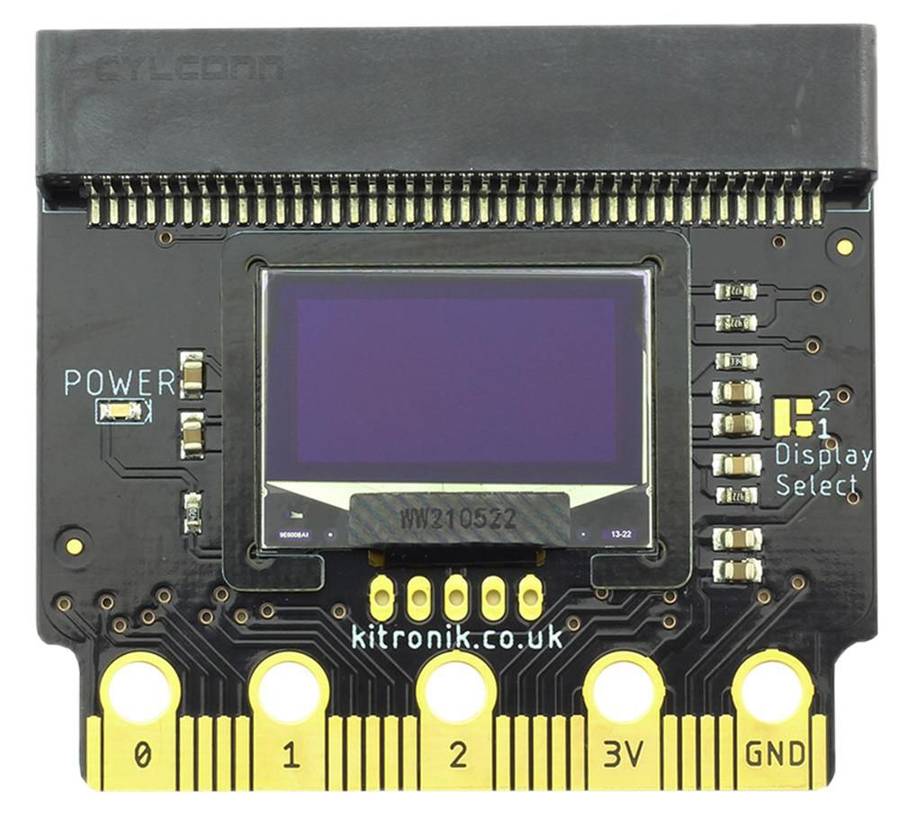

Product InformationSilicon Manufacturer: -Silicon Family Name: -Core Architecture: -Core Sub-Architecture: -Silicon Core Number: -For Use With: BBC micro:bitProduct Range: -Product OverviewKitronik :VIEW Graphics128 OLED display 128x64 for BBC micro:bit. The Kitronik:VIEW Graphics128 OLED display gives the user the ability to add a monochrome128x64 display to the BBC micro: bit. The on-board edge connector allows themicro:bit to slot into the board without any additional fixings. The board alsofeatures a micro:bit style I/O connector which means it can be slotted into anyother micro:bit accessory that has a slot for inserting a micro:bit. All of thepins from the BBC micro:bit are tracked through to provide the edge pads withthe full usage of the BBC micro:bit, with the addition of a display. As themicro:bit slots directly into the board, no tools, fixings, or soldering arerequired.It can be coded with MakeCode blocks and with PythonKitronik has created custom MakeCode blocksKitronik has created a GitHub repo for custom Python functionsIt can be powered via the edge connector or by the micro:bitRequires a 3V supplyThe board features a power indicator LEDIt is possible to change the default I2C address of the boardNo tools, fixings, or soldering are required
