Kitronik (5646) Development Board, ACCESS:bit, for micro:bit

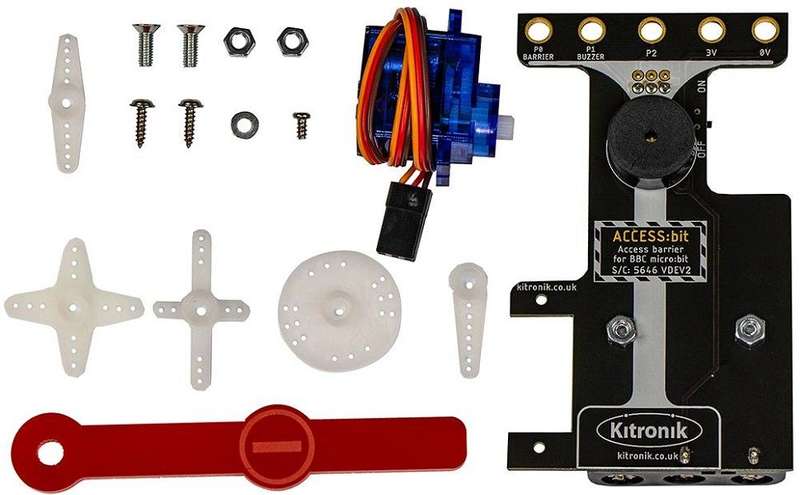

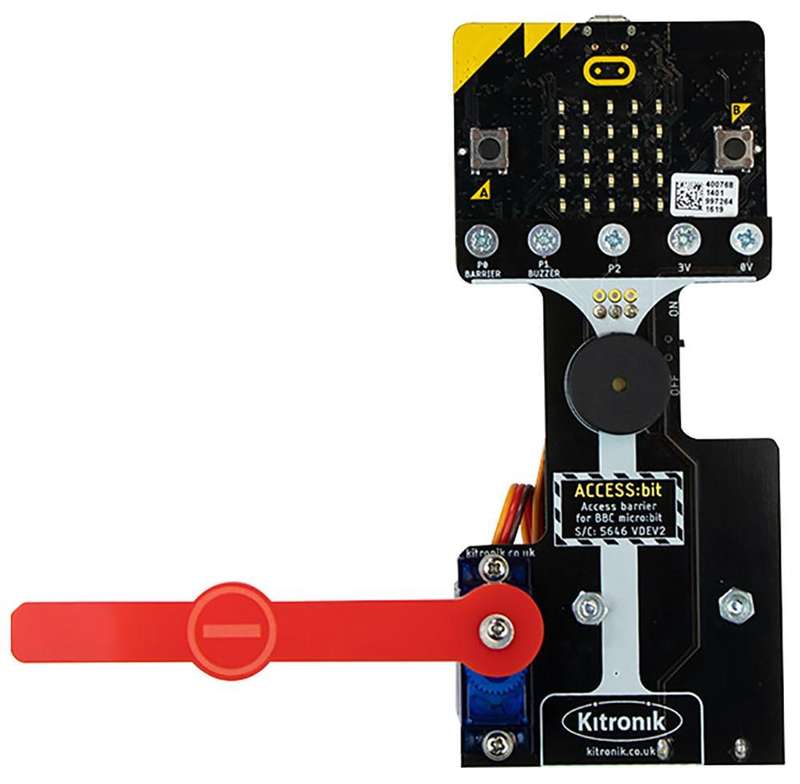

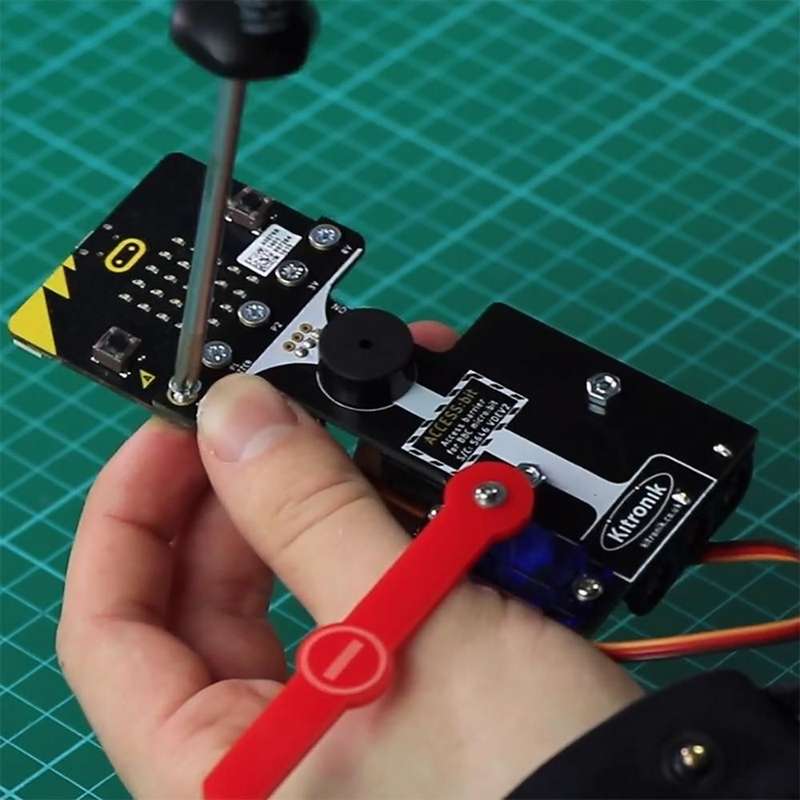

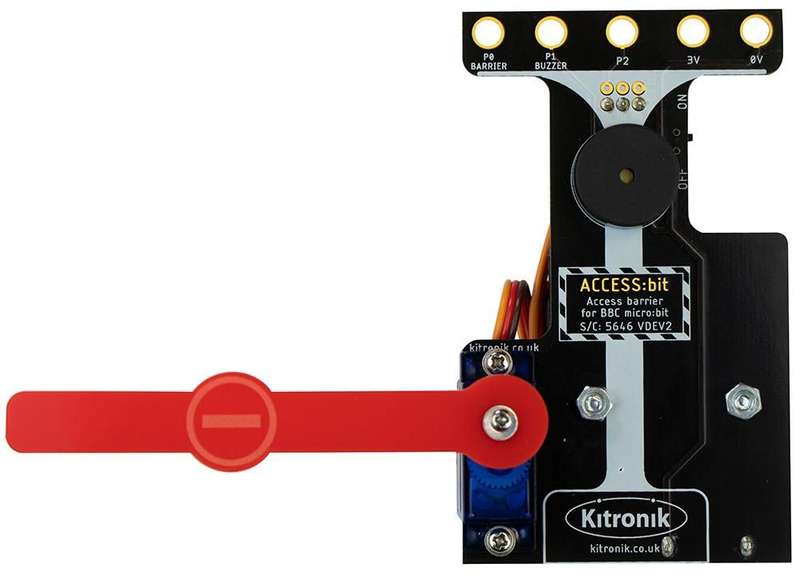

Product InformationAccessory Type: ACCESS:bitKit Contents: ACCESS:bit Board, Access Barrier, 180 Degree Servo, 5x M3Countersunk Screws, 5x M3 NutsFor Use With: micro:bitProduct Range: -Product OverviewSimple project kit for the micro:bit (suitable for V1 or V2) that simulates anaccess barrier mechanism, ideal for transportation displays and classroom codingprojects. The ACCESS:bit uses a single servo to move the barrier, and onceconnected the micro:bit LED matrix is fully visible and can be used to displaystop/go symbols.Designed to the same scale and aesthetic as the STOP:bit & LAMP:bit, so it canbe used in the same projects180 Degree servo for accurate barrier movementLeaves the micro:bit LED matrix visible to display stop/go symbolsFeatures buzzer, integrated battery cage and on/off switchCustom MakeCode blocks available for easy codingmicro:bit can be attached directly (via included screws)Powered by 3x AAA batteries (not included)Supplied as a kit, mechanical assembly requiredDimensions: Height: 89mm, Width with barrier extended: 125mm, Depth with servo:30mmContentsACCESS:bit board, barrier, servo, screws and nutsFootnotesNote: micro:bit shown for illustration only, not included.
