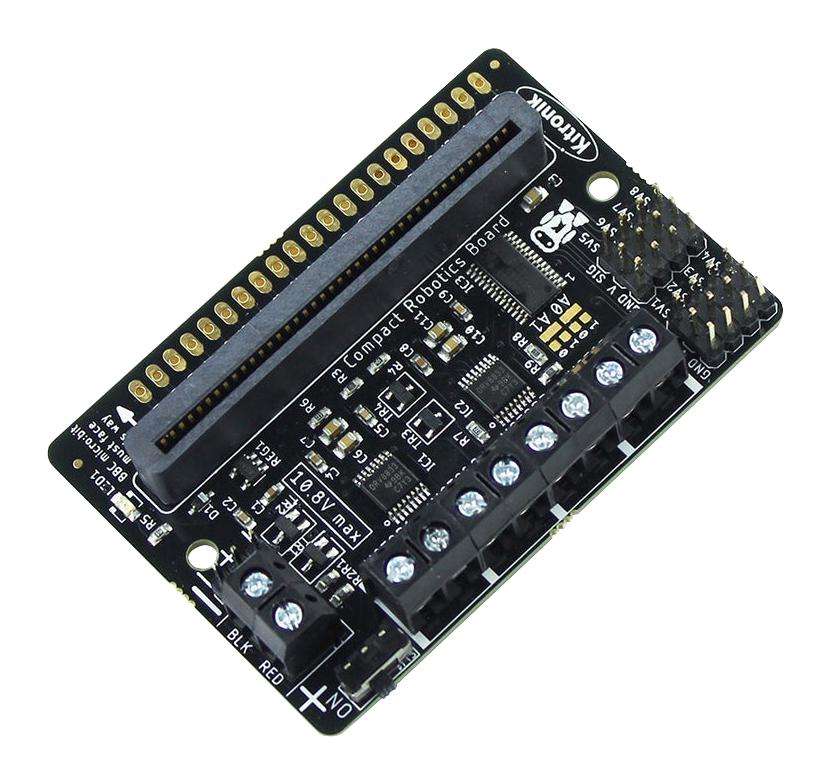

Kitronik (5693) Robotics Board, 3V to 10.8V Supply, 10A, 2 Stepper Motors

Product InformationSilicon Manufacturer: -Core Architecture: -Core Sub-Architecture: -Silicon Core Number: -Silicon Family Name: -For Use With: micro:bitKit Contents: All-in-one Robotics BoardProduct Range: -Product Overview5693 is a Kitronik compact all-in-one robotics board for BBC micro:bit. With theKitronik Compact Robotics Board, the BBC micro:bit can be used to drive 4 motors(or 2 stepper motors) and 8 servos. Coupled with 17 other I/O expansion points,this means the BBC micro:bit can very easily become the core of a whole varietyof robotics projects. The board is small on footprint but big on features andconnectivity. The Robotics Board features 2 Dual H Bridge Motor Driver ICs(capable of driving 2 standard motors or 1 stepper motor each) and 8 servooutputs (capable of driving standard and continuous rotation servos), allcontrolled from the BBC micro:bit using the I2C protocol via a 16 channel driverIC. Our custom MakeCode blocks make using I2C easy, even for novice users.The link header is designed to allow 2.54mm pitch pin header to be usedI2C communication lines are also broken out allowing other I2C compatibledevices to be controlledBoard also features an on/off switch and power status LEDPower the board via either a terminal block or servo style connector3V and GND pins are also broken out on the Link header, allowing externaldevices to be poweredContents1 x compact robotics board for BBC micro:bit.FootnotesNote: I2C devices controlled by the same micro:bit MUST have differentaddresses. micro:bit and accessories shown for illustration only, not included.
