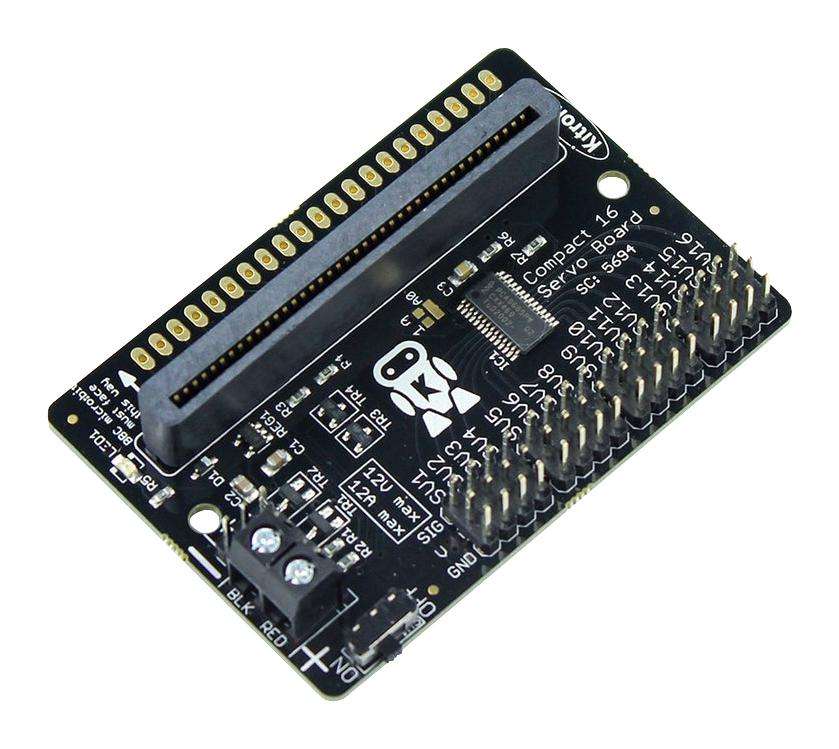

Kitronik (5694) Servo Driver Board, 3 V to 12 V Supply, 16 Channel

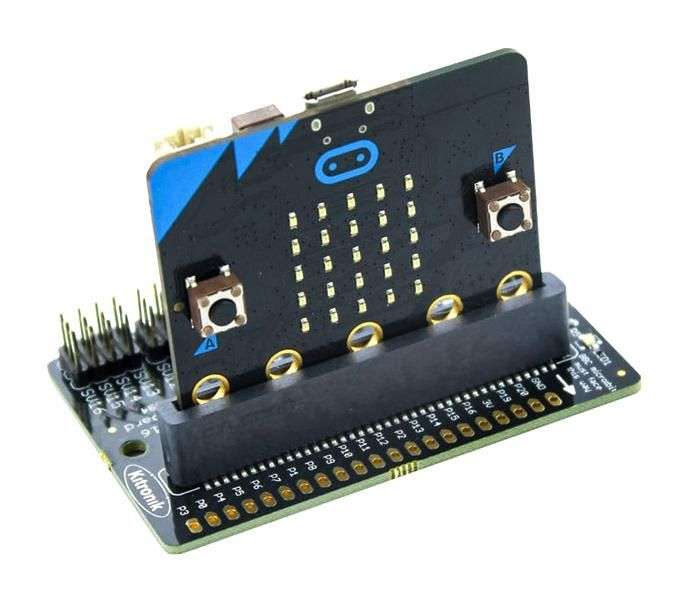

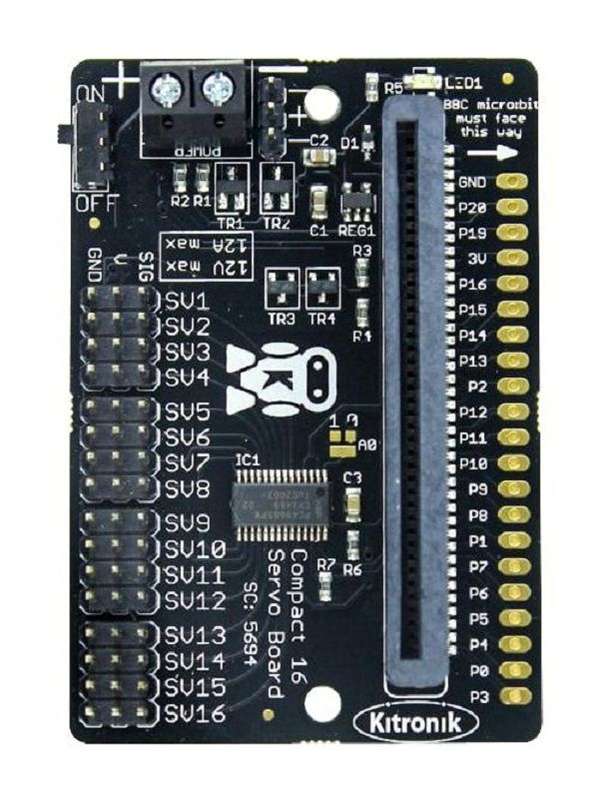

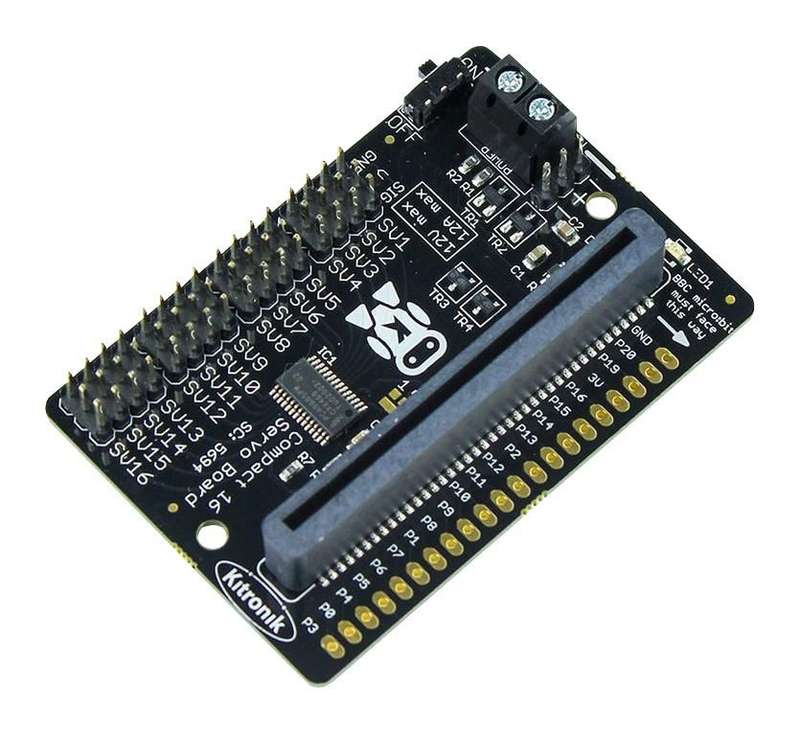

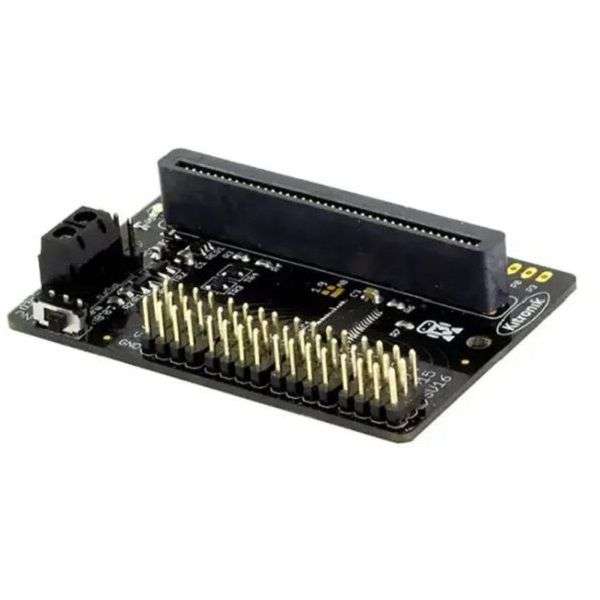

Product InformationSilicon Manufacturer: -Core Architecture: -Core Sub-Architecture: -Silicon Core Number: -Silicon Family Name: -For Use With: micro:bitKit Contents: Servo Driver BoardProduct Range: -Product OverviewCompact servo driver board solution designed for use with the micro:bit and issuitable for a wide range of robotics projects. Based on the PCA9685 driver ICthe board is capable of driving up to 16 servos simultaneously and includes anintegrated Edge Connector for the BBC micro:bit.Drives up to 16 servos; provides 4 groups of 4 servo connections using standard0.1" pitchBased on the PCA9865 driver ICPowered via a terminal block or servo-style connector and controlled by theon/off switch3V to 12V Operating voltageMax. continuous current (all servos): 12AProvides regulated 3V power to the micro:bit, no need to power the micro:bitseparatelyCustom MakeCode blocks availableLink compatible expansion headerBreaks out 3V & GND pins allowing other devices to be poweredIntegrated Edge connector for the micro:bitContentsServo board onlyFootnotesNote: micro:bit and accessories shown for illustration only, not included.
