KittenBot Robot:bit Expansion Board V2.0 Support Scratch & Python Programming Compatible withLego

New

20 available

R770.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4038

92.34 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

654101508

* The silicone protective case for your reference. Please click product id .

Instrductions:

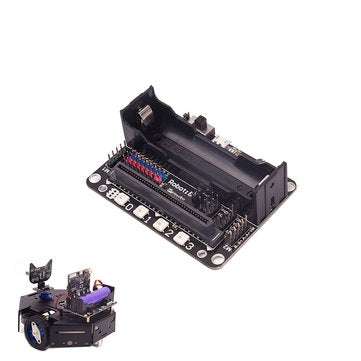

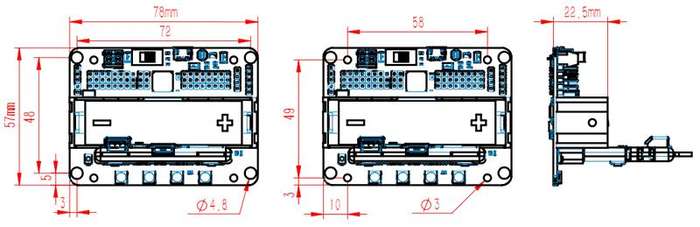

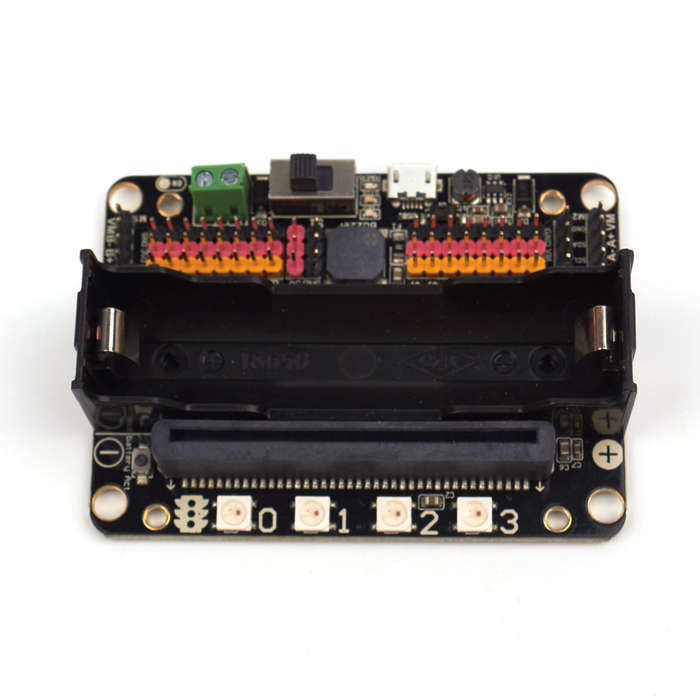

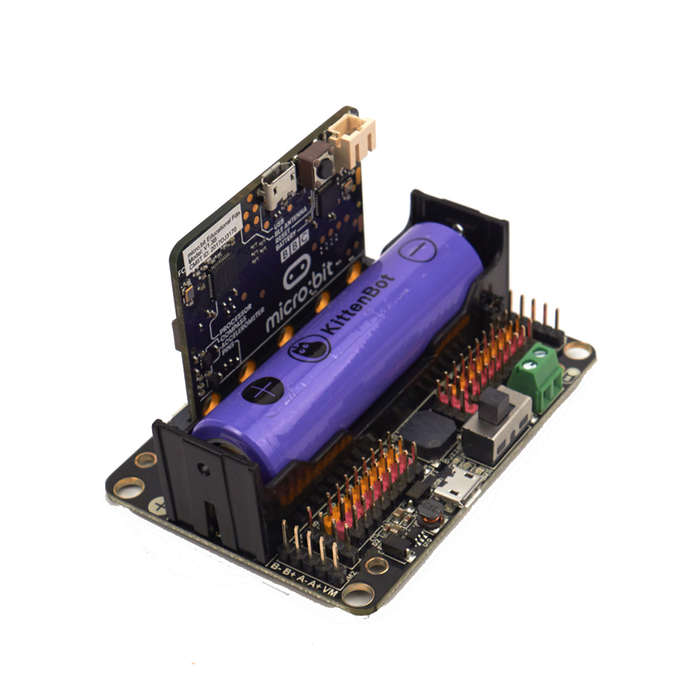

aRobotbit is an excellent robotic expansion board specially designed for Microbit by KittenBot team. aIt has a powerful ability to drive DC motors, stepper motors, servos, and onboard buzzer and RGB pixels and release all valid IO from microbit, with support the most common electronics module in the market. aIt comes with 18650 battery holder, integrated lithium battery boost, charging and protection chip. aSupport for external power input. aMechnically support for KittenBot robotic chassis and LEGO technical slots. aThe powerful drive capability and built-in battery make DIY more convenient and free. aWe have received unanimous praise from the school teacher training institutions and individual enthusiasts. aIt is an excellent choice for your robotic projects based on Micro:bit! aDoes the product need programming software What kind of programming software is required aYes, it needs the programming software. Makecode can work at it. aThe 3D printed protective case can suit for this board. Specifications: - Dimensions: 78mm x 57mm x 23mm -PCB Thickness: 1.5mm -Small mechnical hole: 3.0mm -Big mechnical hole: 4.8mm

Functional parameters: -18650 battery voltage: 3.7V -USB input voltage: 5V -VM pin max ouput: 1A (with onboard battery) -External Voltage Input (the green termial): 5V (only supports 5V input, do not connect over 5V, maximum current supports 3A) -Supported software: -Available Coding platform: Kittenblock(based on Scratch3.0) or Makecode and python(Mu editor in microbit mode) Lithium battery charging method note:
1. Directly connect the data cable with the mini car USB data port, and keep the switch in an open state. 2. unplug the battery, please use the more reliable quality charger, the battery is full stop charging, the battery is insufficient, please immediately charge, otherwise the lithium battery is very easy to damage or even scrapped. Package Included: 1 x Robot:bit expansion board (without Micro:bit board & battery)
