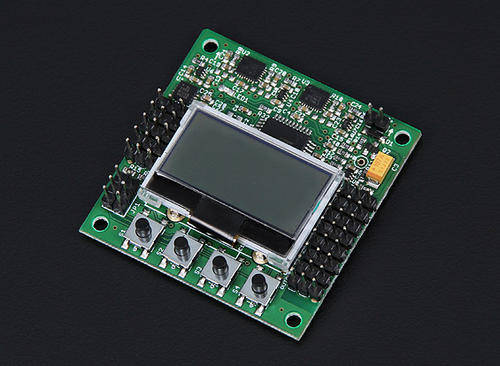

KK2.0 Multi-rotor LCD Flight Control Board

To keep our prices as competitive as possible, all of our hobby items are drop shipped from our supplier abroad, therefore if your package is inspected by customs (this has rarely happened to our customers thus far) you may be required to pay taxes (usually just VAT  - 14%). We cannot be held responsible for the taxes levied, so please be aware of this.

Our international shipping works as follows - shipping costs are specified on a sliding scale according to weight. All hobby products have a specified shipping weight at the end of the listing. You may order as many products as you want from us, add up the total shipping weight and select the correct weight during checkout. Standard shipping takes 6-21 days and EMS Express takes 3-4 days (subject to stock availability).

We have a wide range of products available, but if there is any product you require that we do not list, don't hesitate to contact us and we will try to get hold of that product for you.

Happy shopping!

Designed by the Grand father of the KK revolution, Rolf R Bakke, the KK2.0 is the evolution of the first generation KK flight control boards. The KK2.0 was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts. The LCD screen and built in software makes install and setup easier than ever. A host of multi-rotor craft types are pre-installed. simply select your craft type, check motor layout/propeller direction, calibrate your ESCs and radio and your ready to go! all of which is done with easy to follow on screen prompts!

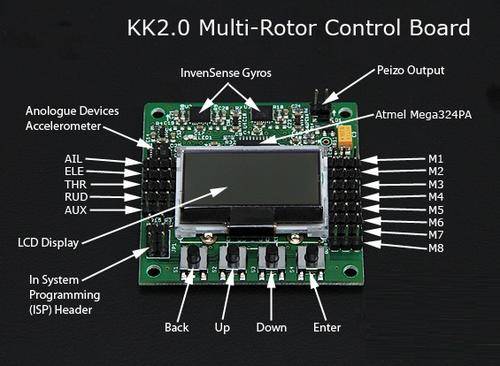

The original KK gyro system has been updated to an incredibly sensitive dual chip 3 Axis gyro and single chip 3 axis accelerometer system making this the most stable KK board ever and allowing for the addition of an Auto-level function. At the heart of the KK2.0 is an Atmel Mega324PA 8-bit AVR RISC-based microcontroller with 32k of memory. An additional 2 motor output channels have been added to the KK2.0 allowing for a total of 8 motors to be controlled (Octocopter). A handy Piezo buzzer is also included with the board for audio warning when activating and deactivating the board.

If your new to multi-rotor flight or have been unsure about how to setup a KK board then the KK2.0 was built for you. The 6 Pin USBasp AVR Programming interface ensures future software updates will be quick and easy.

Specs.

Size: 50.5mm x 50.5mm x 12mm

Weight: 21 gram (Inc Piezo buzzer)

IC: Atmega324 PA

Gyro: InvenSense Inc.

Accelerometer: Anologue Devices Inc.

Auto-level: Yes

Input Voltage: 4.8-6.0V

AVR interface: standard 6 pin.

Signal from Receiver: 1520us (5 channels)

Signal to ESC: 1520us

Pre-installed firmware.

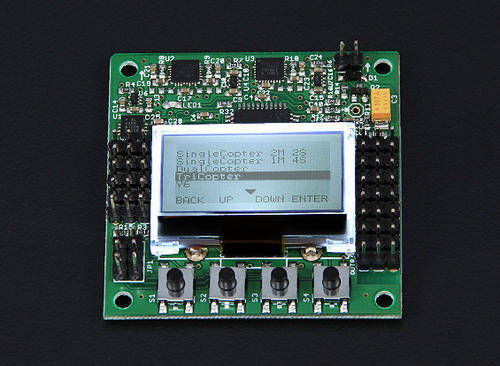

Dualcopter

Tricopter

Y6

Quadcopter +

Quadcopter X

Hexcopter +

Hexcopter X

Octocopter +

Octocopter X

X8 +

X8 X

H8

H6

V8

V6

Aero 1S Aileron

Aero 2S Aileron

Flying Wing

Singlecopter 2M 2S

Singlecopter 1M 4S

(Custom Mix via the "Mixer Editor" option)

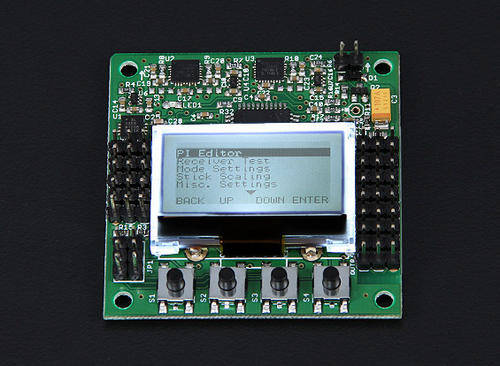

The Mixer Editor allows you to adjust where and how much signal the motors receive from stick input and sensors. This allows you to create any configuration possible with up to 8 motors or servos.

Shipping Weight: 55g
