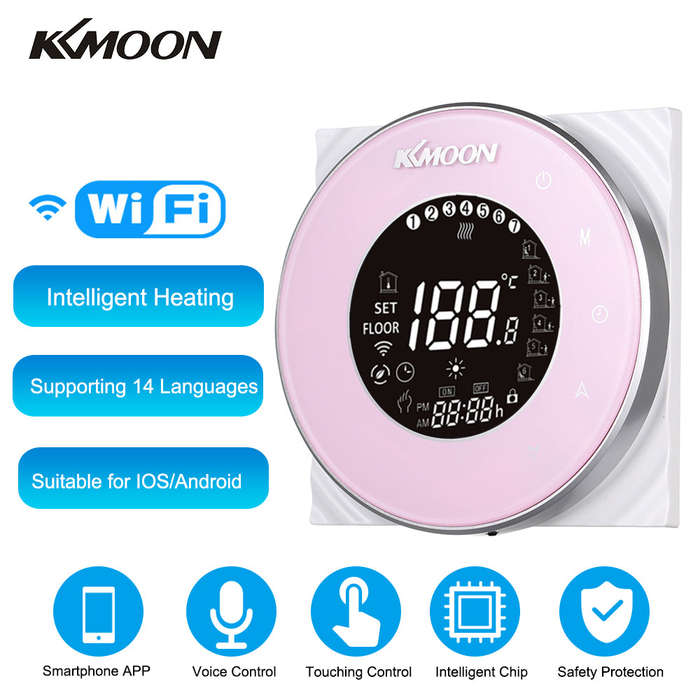

This is a safe and reliable water heating thermostat that is easy to install and operate. It can provide you an energy-saving and comfortable living environment. Simple and ultra-thin in appearance, it's very fashionable for your intelligent home.
Features:Made of fireproof material, safe and reliable for daily use.
Used to control water heating system, touching buttons for simple operation.
Acrylic lenses to protect the LCD screen from collision and avoiding the finger scratch.
Weekly programmable and 5+2 six periods programmable to maximize comfort and economy, very flexible.
WiFi and voice control, convenient for you to control your thermostat with your mobile device (only type 2).
Supporting 14 different kinds of language, including English/German/French/Russian/Spanish/Italian, etc. will follow your phone setting.
The LCD screen with backlight, can display data clearly, easy to read even in the dark.
Heating control to provide warm and give you a comfortable living environment.
0.5ￂﾰC accuracy, keeping the comfortable temperature within the level you set.
Data memory function when powers is off.
High-efficiency and energy-saving thermostat to help lower home energy costs.ￂﾠￂﾠ
4 colors for your option, our newly designed brushed-aluminium appearance will definitely match your modern home style.
Specifications:
Brand: KKmoon
Material: PC & ABS (fireproof)
Color: black; white; pink; brushed-aluminium (optional)
Type: 2 types (optional)
ￂﾠ ￂﾠ type 1: normal type, no WIFI
ￂﾠ ￂﾠ type 2: with WIFI connection
Input: AC 95-250V / 50-60Hz
Current load: MAX 5A (water heating)
Powers consumption: less than 1.5W
Sensor: NTC3950, 10K
Accuracy: ￂﾱ0.5￢ﾄﾃ
Set temperature: 5￢ﾄﾃ to 35￢ﾄﾃ
Ambient humidity: 5 to 99% RH (non condensing)
Storage temperature: - 5￢ﾄﾃ to 45￢ﾄﾃ
Control system: works with Amazon Alexaￂﾠ/ Google Assistant / IFTTT
Supporting language: 14 different languages, follow your phone setting
ￂﾠ ￂﾠ Chinese/English/German/French/Russian/Spanish/Italian/Portuguese/Turkish/Arabic/Japanese/Dutch/Greek/Hebrew
Installation hole distance: 60mm
Suitable installation box: 86 * 86mm square or European 60mm round box (not included)
Wire terminals: wire 2 * 1.5mￂﾲ or 1 * 2.5mￂﾲ
Proof rate: IP20
Item weight: 133g / 4.69ounce
Item size: 90 * 40mm / 3.54 * 1.57in
Package weight: 195g / 6.88ounce
Package size: 110 * 97 * 60mm / 4.33 * 3.82 * 2.36in
WIFI Connection Procedure(only type 2):
Step 1-1: install the device and connect with powers
Step 1-2: keep the device off
Step 2: long press down button for 8 seconds
Step 3: the wifi icon flashes on the screen (1 time per second)
Notes:
1. Please allow 1-10mm error due to manual measurement, thanks for your understanding!
2. Needs Professional Installation.
3. ONLY type 2 supporting intelligent WIFI function, type 1 is a normal one.
Package List:
1 * Thermostat
1 Set * Mounting Screws
1 * User manual (English)
