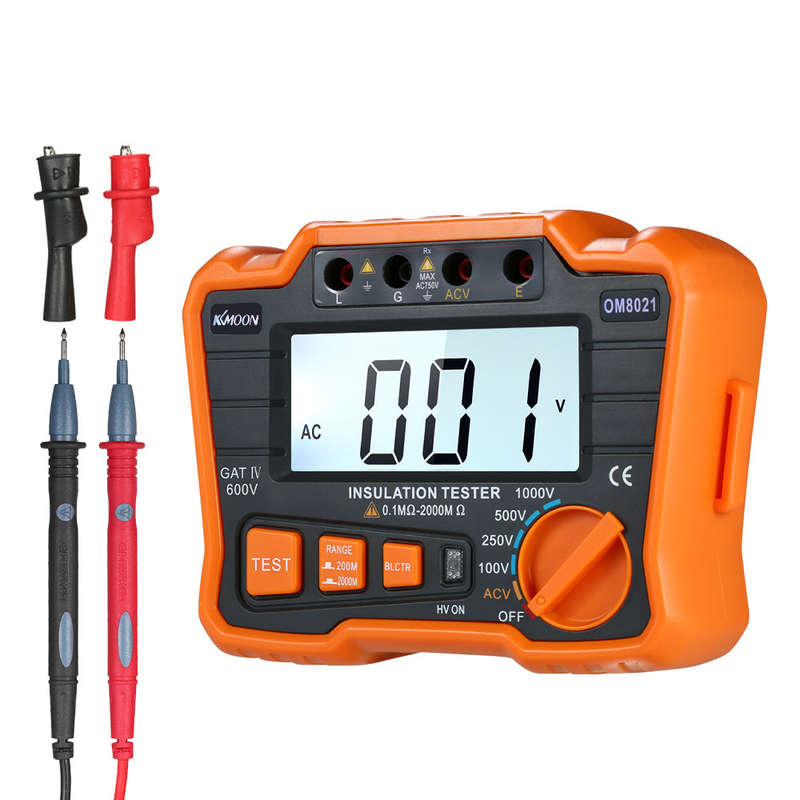

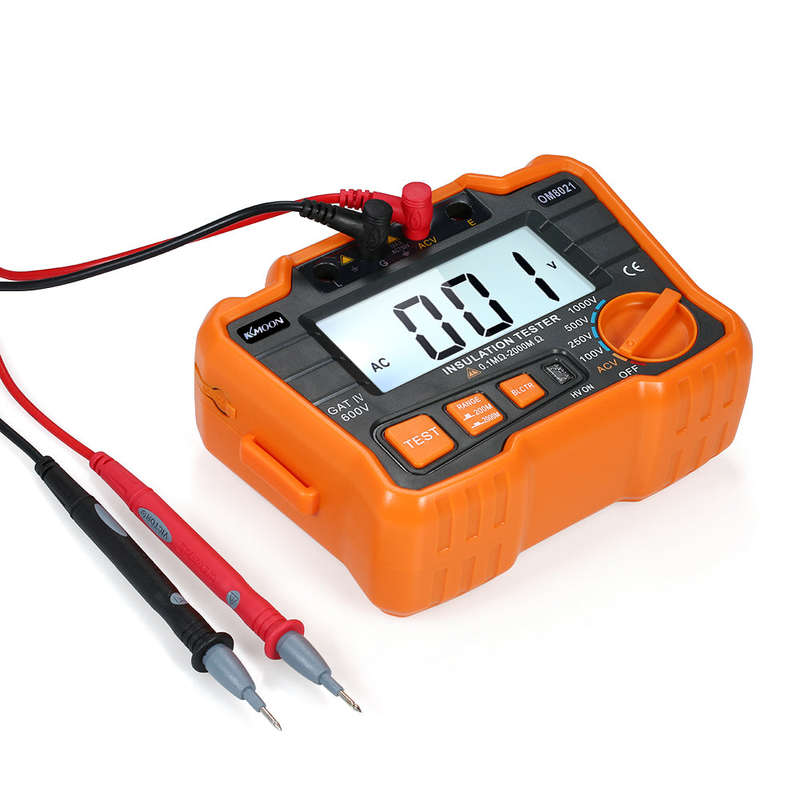

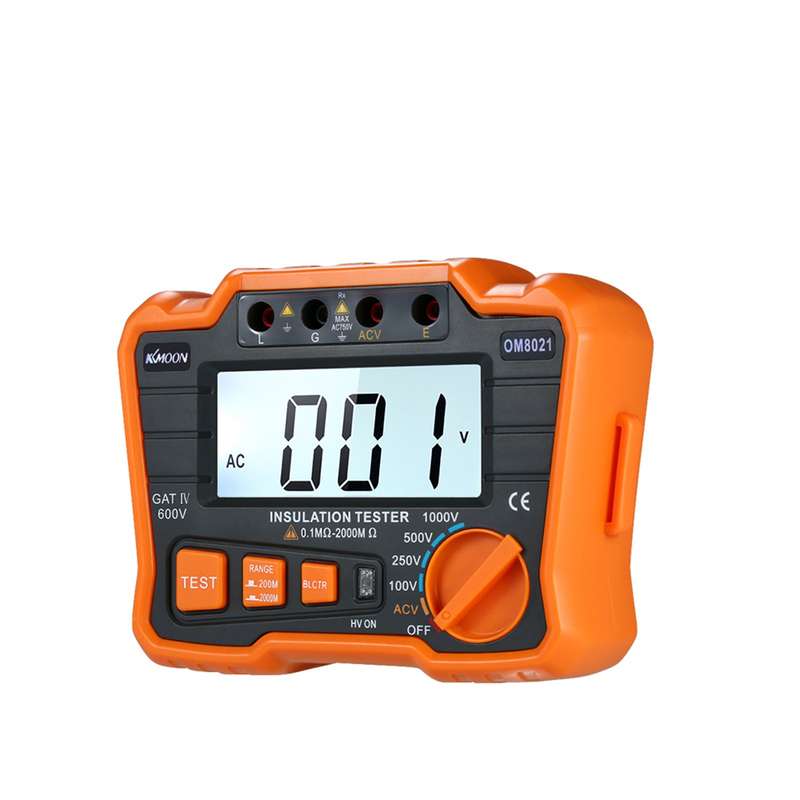

KKmoon Insulation Resistance Tester DCV ACV Meter 1000V Ground Megger Megohmmeter MegOhm Voltmeter w

This professional digital insulation tester has stable performance and reliable result. It adopts the DC Voltage converter of low consumption and high converter ratio inductance energy storage, to change the 9V Voltage to 100V/250V/500V/1000V DCvoltage. Large LCD display with switchable backlight, easy to read.

Features:
Large LCD 2000 counts display with switchable backlight, easy to read.
Test voltage for your choice: 100V / 250V / 500V / 1000V.
Reliable insulation resistance tester with stable performance.
Locking function of TEST button, wide measurement range, convenient to use.
Perfect overload protection, widely used for insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
Powered by DC 12V or 6 batteries(not included), with low battery indication and 750V AC voltage test.

Specifications:
Brand Name: KKmoon
Color: Black + Orange
Material: Plastic
Display: LCD Display with Backlight, 1999 (3 1/2digit)
Range Control: Manual Range
LCD Size: 90 * 38mm / 3.5 * 1.5
Output Voltage: DC 100V / 250V / 500V / 1000V
Output Current: 250V(R=250kￎﾩ)￢ﾉﾈ2mA, 500V(R=500kￎﾩ)￢ﾉﾈ2mA, 1000V(R=1Mￎﾩ)￢ﾉﾈ2mA

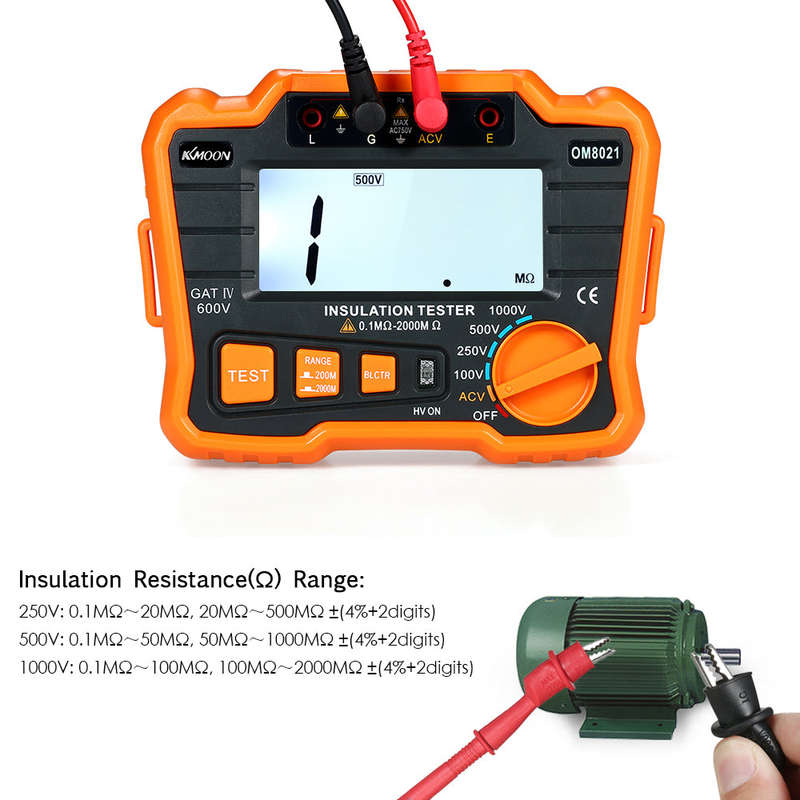

Insulation Resistance(ￎﾩ) Range:ￂﾠￂﾠ
250V: 0.1Mￎﾩ20Mￎﾩ, 20Mￎﾩ500Mￎﾩ ￂﾱ(4%+2digits)
500V: 0.1Mￎﾩ50Mￎﾩ, 50Mￎﾩ1000Mￎﾩ ￂﾱ(4%+2digits)
1000V: 0.1Mￎﾩ100Mￎﾩ, 100Mￎﾩ2000Mￎﾩ ￂﾱ(4%+2digits)
Short Circuit Current: ￢ﾉﾈ2mA
Median Resistance: 2Mￎﾩ
Terminal Position: L, E, ACV, G(750V)
AC Voltage(V): 1V-750V ￂﾱ(1.0%+6digits)
Low Battery Indication: YES
LED Backlight: YES
High Voltage Indication: YES
Power Supply: 6 * 1.5V AA Battery (Not Included) or DC 12V Power Adapter(NOT Included)
Working Temperature/Humidity: 040, 3085%RH
Storage Temperature/Humidity: 050, 3085%RH
Item Size: Approx. 170 * 125 * 60mm / 6.7 * 4.9 * 2.4inￂﾠￂﾠ
Item Weight: 541g / 19.1oz
Package Size: 21.5 * 18 * 8cm / 8.5 * 7.1 * 3.1inￂﾠￂﾠ
Package Weight: 844g / 29.8oz

Package List:
1 * Digital Insulation Tester
1 * Pair of 10A Test Leads
2 * Alligator Clips
1 * Storage Bag
1 * User Manual (English)ￂﾠ
