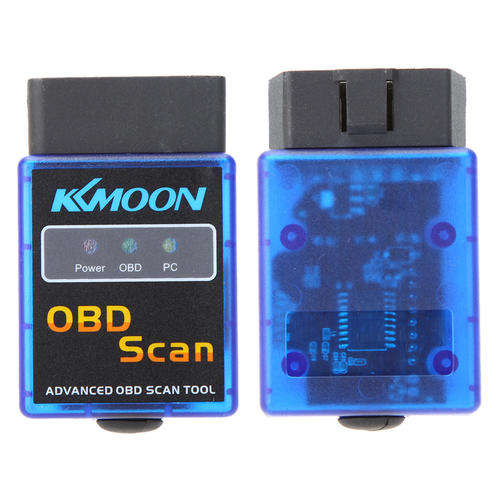

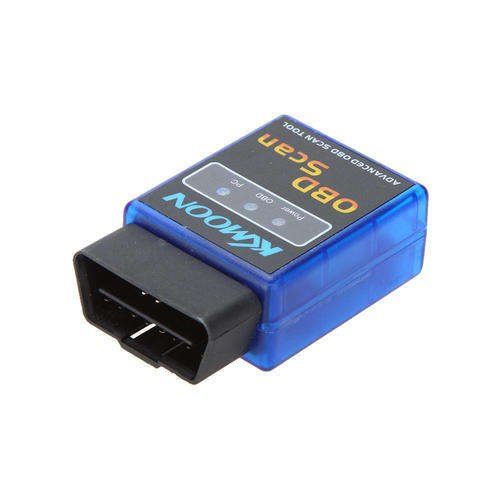

Kkmoon V2.1 Mini Bluetooth ELM327 OBDII OBD-II OBD2 Protocols Auto Diagnostic Scanner Tool
.





Features:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light).
Display current sensor data, including:
* Engine RPM
* Calculated Load Value
* Coolant Temperature
* Fuel System Status
* Vehicle Speed
* Short Term Fuel Trim
* Long Term Fuel Trim
* Intake Manifold Pressure
* Timing Advance
* Intake Air Temperature
* Air Flow Rate
* Absolute Throttle Position
* Oxygen sensor voltages/associated short term fuel trims
* Fuel System status
* Fuel Pressure
Note: It is not compatible with Nissan vehicles.
Specifications:
Support OBD-II protocols as follows:
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4Kbaud)
3.ISO14230-4 KWP(fast init,10.4Kbaud)
4.ISO15765-4CAN(11bit ID,500 Kbaud)
5.ISO15765-4CAN(29bit ID,500 Kbaud)
6.ISO15765-4CAN(11bit ID,250 Kbaud)
7.ISO15765-4CAN(29bit ID,250 Kbaud)
Dimensions: 7 * 4.5 * 2.5cm
Net weight: 43g
Total weight: 50g
Compatibility:
* Works on most OBD2 Vehicles ( from 1996 in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)
* Compatible with Android Torque and Windows Smartphone, Windows PC.
Packing List:
1 * ELM327 unit (Bluetooth version)
1 * CD drive
