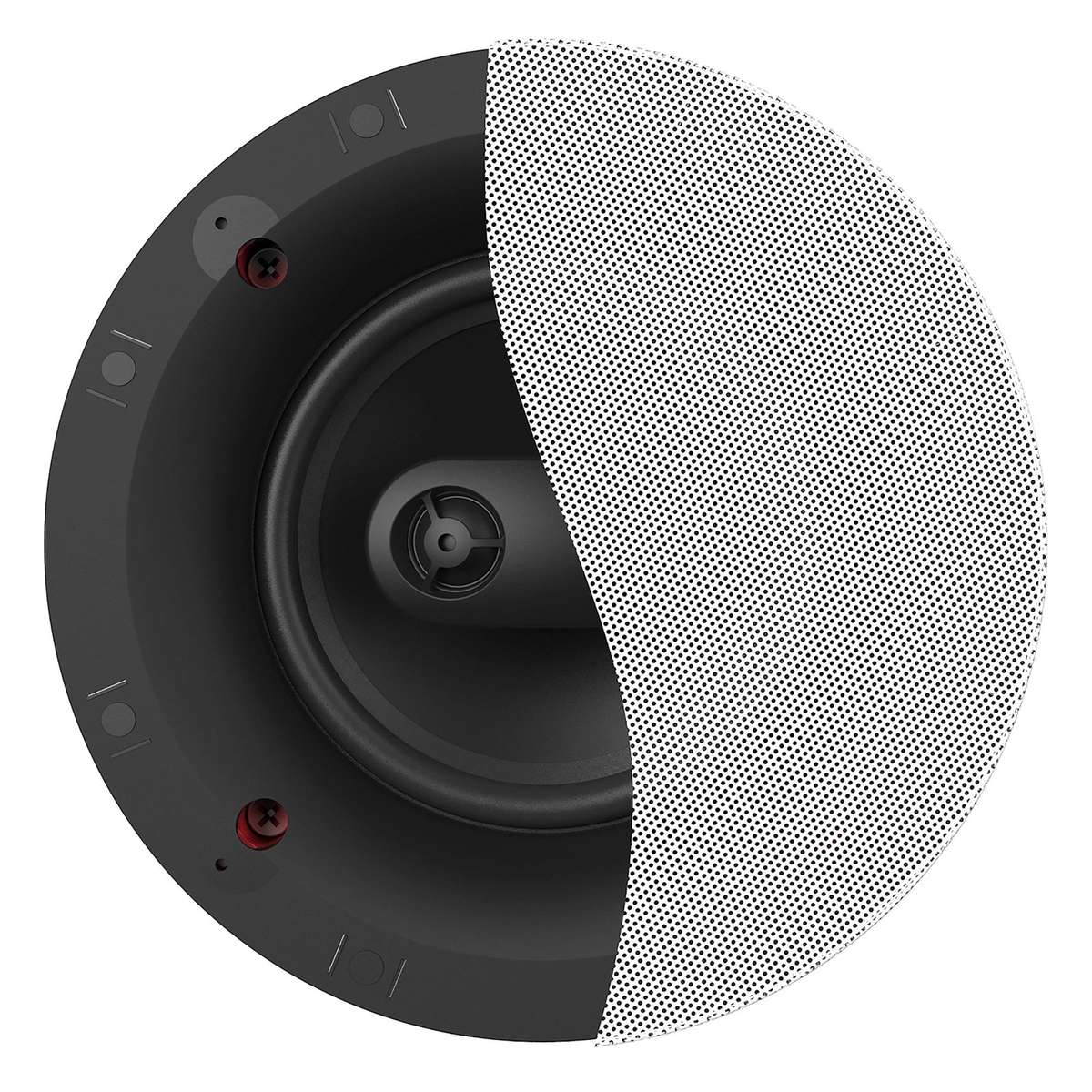

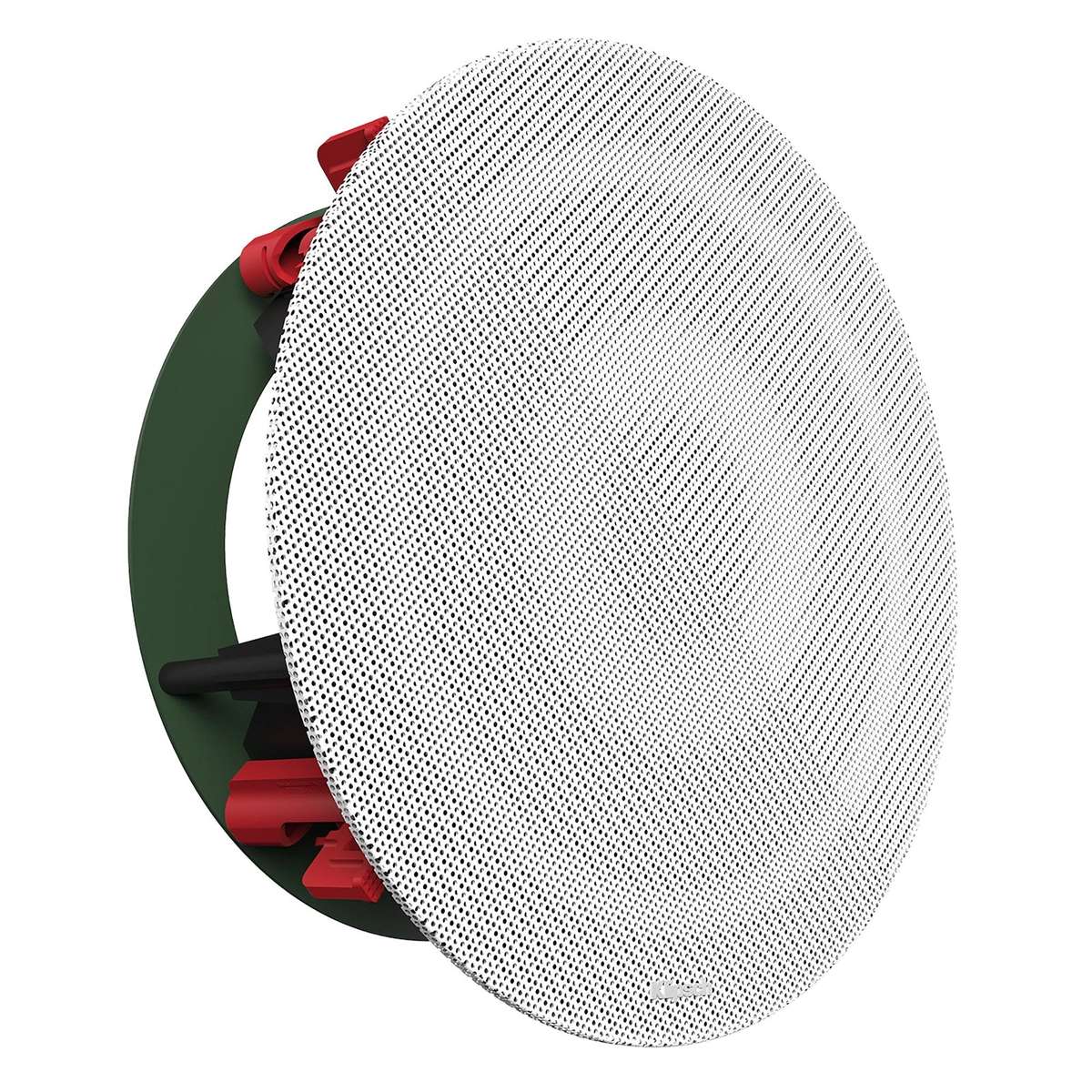

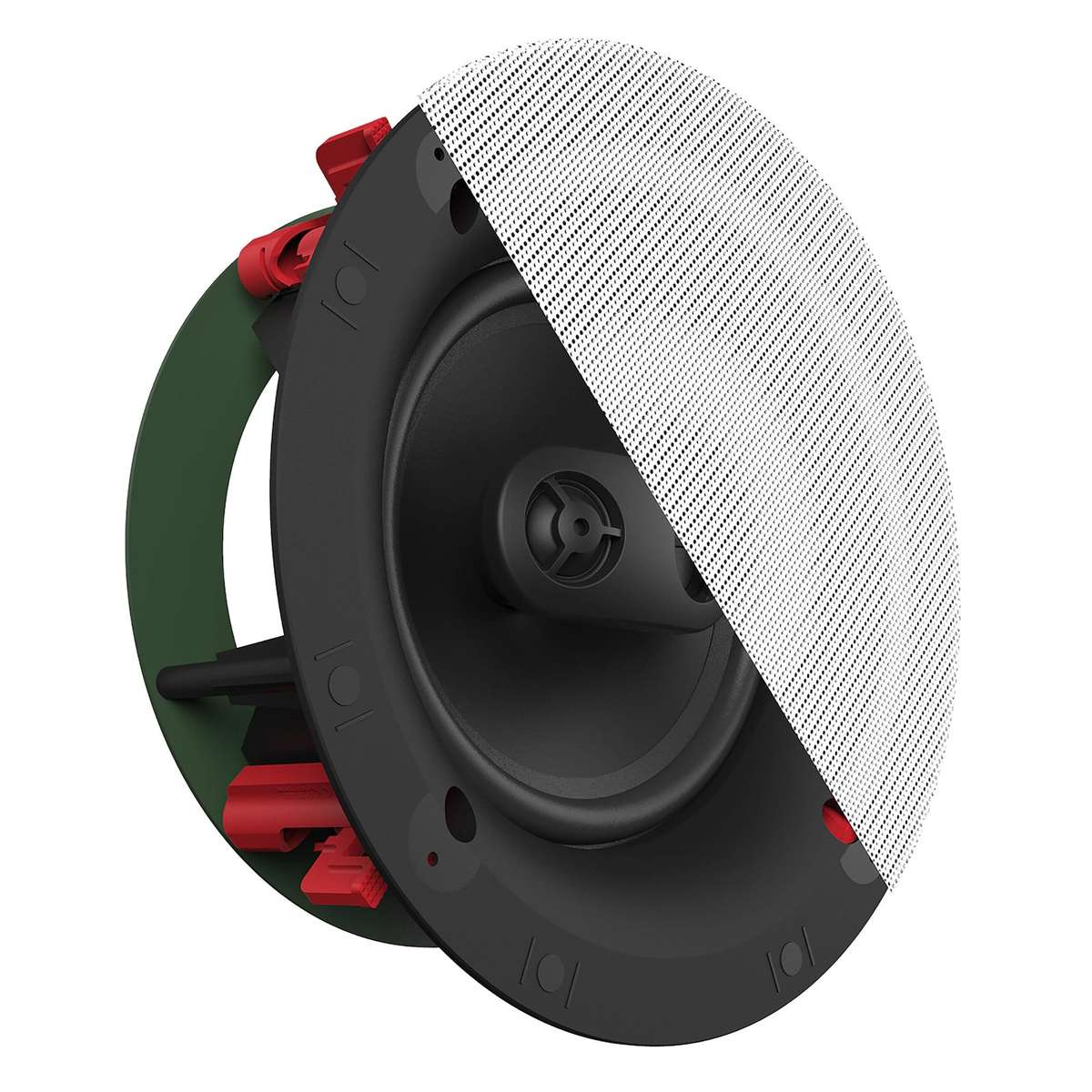

Klipsch Designer DS-180CSM Skyhook Cinch In-Ceiling Speaker - Each - White

Klipsch Designer DS-180CSM Skyhook Cinch In-Ceiling Speaker - Each - White

Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8" Polypropylene woofer and two .75" Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren't possible.

STEREO SOUND FROM A SINGLE SPEAKER

Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8" Polypropylene woofer and two .75" Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren't possible.

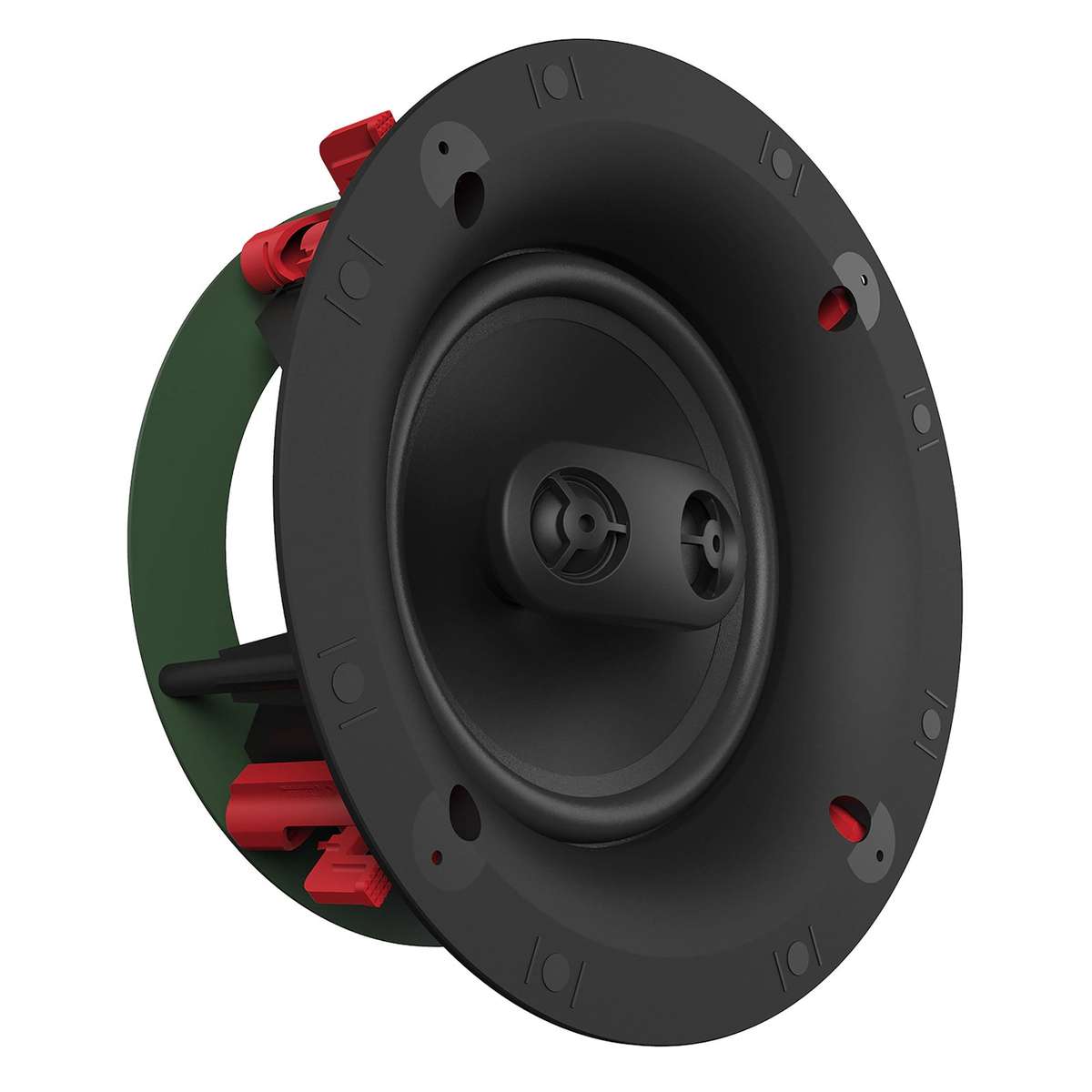

EXCLUSIVE PATENTED SKY HOOK® CINCH INSTALLATION SYSTEM

This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. If dealing with an uneven space, a 1/4 turn of each dog leg screw achieves an even more flush finish. This fast, easy installation system reduces install time by up to 75%.

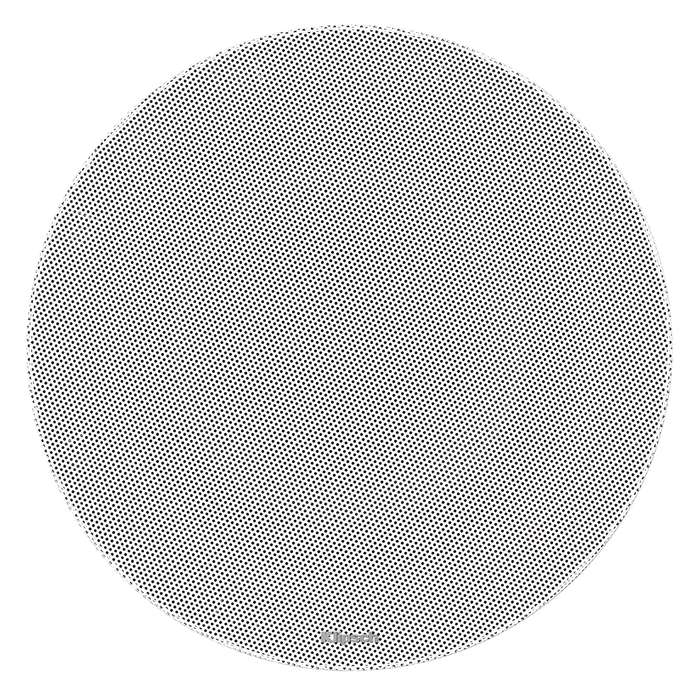

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Specifications:

FREQUENCY RANGE: 55Hz-20KHz +/- 3dB
HIGH FREQUENCY DRIVER: Dual .75" (19mm) Silk Dome Tweeters
LOW FREQUENCY DRIVER: 8" (203.2mm) Polypropylene Woofer
SENSITIVITY: 94 dB @ 2.83V / 1m
COVERAGE ANGLE: 160°
POWER HANDLING: 50W RMS / 200W RMS
IMPEDANCE: 8 ohms compatible
ENCLOSURE MATERIAL/TYPE: ABS/Infinite Baffle
FINISH: Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS: 10.75" W x 10.75" H x 4.37" D (273mm H x 273mm W x 111mm D)
MOUNTING DEPTH: 4.25" (108mm)
CUTOUT DIMENSIONS: 9.57" (243mm)
PRODUCT WEIGHT: 7.4 lbs (3.36kg)
INCLUDED IN BOX: Flat Paintable Magnetic Grille
INSTALL KIT: IK-800-C II (Sold Separately)
FIRE RATED ENCLOSURE: ME-800-C (Sold Separately)
BUILT FROM: 2017
