Klipsch THX-1200-SW Passive Subwoofer - Each - Black
The world's finest theater operators choose Klipsch cinema systems because they deliver the full impact of the most intense action movie soundtracks without sacrificing musical definition. When designing the THX-1200-SW subwoofer, Klipsch applied its theater experience to bring the same powerful, deep-driving bass to the comforts of home.
Key Features
- Very high output capability (130dB @ 30Hz)
- 12" Cerametallic cast-frame, long-throw driver with
- 240-ounce magnet structure
- Front-ported enclosure for maximum installation flexibility
- NL2 SpeakOn inputs for correct, secure amplifier connection
THE THX-1200-SW IS A COMPACT, HIGH-OUTPUT, LOW-DISTORTION PASSIVE SUBWOOFER
It is suitable for use in any high-performance home-theater or music system. A pair of THX-1200-SW's driven by a KA-1000-THX amplifier meet all requirements for THX Ultra2 certification. Although a single THX1200-SW does not satisfy the stringent THX Ultra2 maximum output specification, which assumes a very large room, it is more than adequate for a typical small or medium-sized room. Either configuration is capable of intense, powerful deep-bass reproduction, with no loss of clarity or detail at even the highest levels demanded by modern action-movie soundtracks. The cabinet is front-ported to maximize installation flexibility.

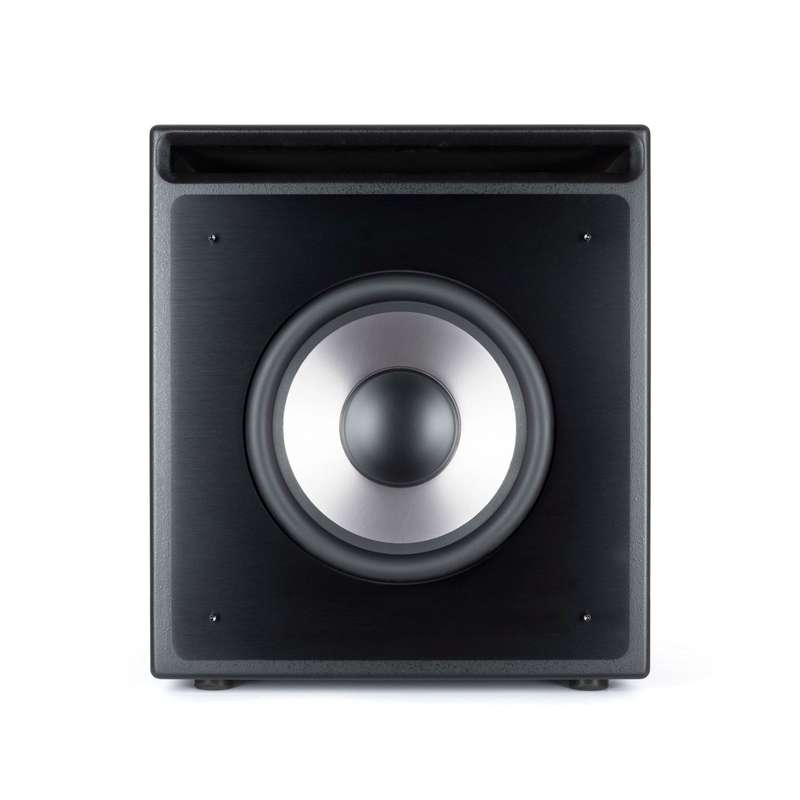

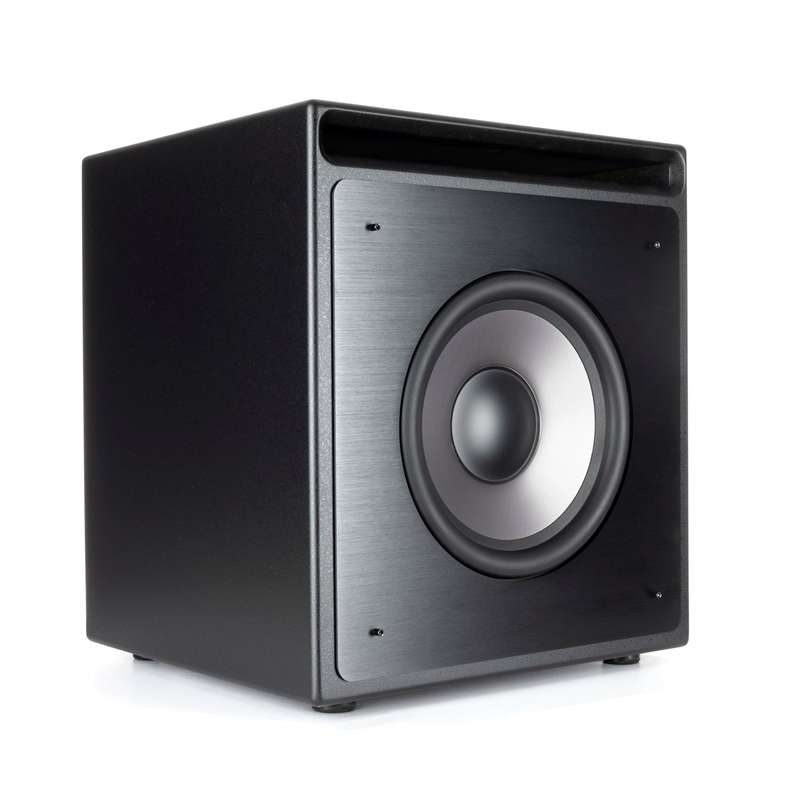

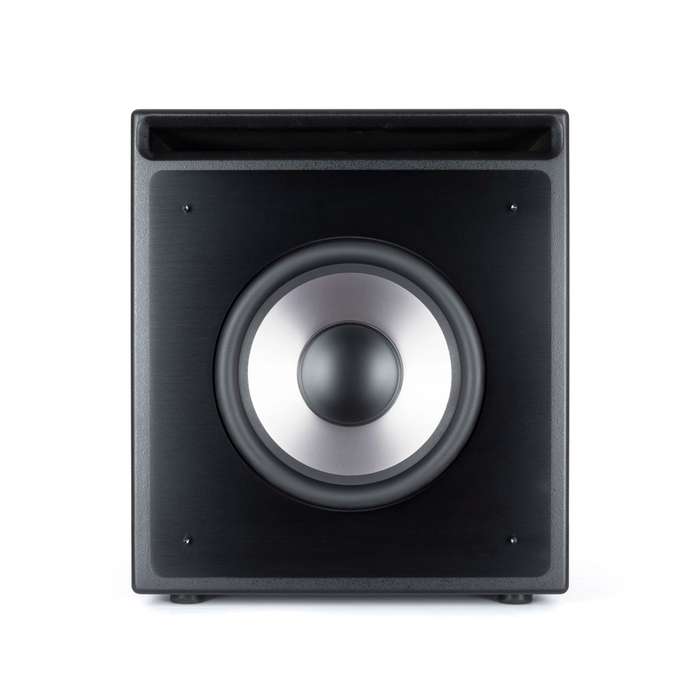

THE THX-1200-SW IS BUILT AROUND A CASTFRAME, LONG-THROW DRIVER WITH A 12-INCH CERAMETALLIC CONE.
Propelling it is a powerful motor structure with a huge, 240-ounce magnet. This rugged, no-compromise driver is capable of staggering output without breakup or distortion.
CONSTRUCTION IS TO THE HIGHEST STANDARD

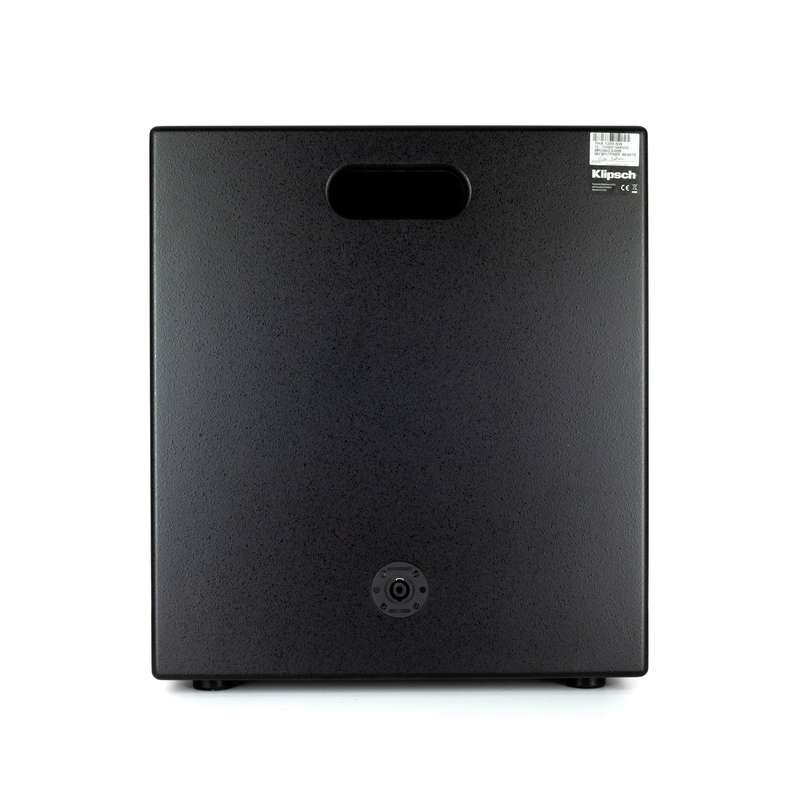

With a professional grade rabbet and dado locked panel cabinet and premium components throughout to ensure sonic purity, consistency, and reliability. Each subwoofer enclosure has a NL2 SpeakOn input for correct, secure amplifier connections, and each THX-1200-SW is supplied with a 20-foot THX Ultra certified speaker cable terminated with NL2 SpeakOn connectors.
Specifications:
FREQUENCY RESPONSE: 20-200Hz ± 3dB
MAX ACOUSTIC OUTPUT: 130dB @ 30Hz, 122dB @ 20 Hz, 112dB @ 15Hz 1/8 space, 1 Meter (2 enclosures side-by-side per THX Ultra2
NOMINAL IMPEDANCE: 8 ohms compatible
ENCLOSURE TYPE: Bass-reflex via front-firing slot port
AMPLIFIER: Use only with KA-1000-THX
ENCLOSURE TYPE: Sealed
AMPLIFIER POWER: See KA-1000-THX specifications
WOOFER: 12" (30.5cm) front firing, Cerametallic cone, cast aluminum frame driver with a 240oz ceramic magnet structure
DIMENSIONS: 20.25" (51.4cm) H x 17.75" (45.1cm) W x 17.75" (45.1cm) D (w/grille)
WEIGHT: 80 lbs. (36kg)
ENCLOSURE MATERIAL: Medium density fibreboard construction (MDF)
FINISH: Galaxy Black cabinet with Black anodized aluminum fascia
