KOHLER XT Series engines features professional-grade features like Overhead Valve (OHV) design for fuel efficiency and cast iron cylinder liners for durability.
User-friendly features like Accu-Fill and Easy-Pull technology make it easy for the homeowner to operate.
It is EPA emissions-compliant and is backed by a two-year warranty.
Four-cycle, single-cylinder, air-cooled, vertical shaft, gasoline, OHV, with cast iron liner.
This engine powers the following equipment Walk Mower; Aerator Chipper Shredder; Dethatcher Edger; Logsplitter Pressure Washer; Pump - Other; Stump GrinderCutter; Tiller Compressor;Ice Drill Portable Generator; Pressure Washer; Tamper Plate Compactor.
ENGINE SPECIFICATIONS
Engine TypeFour-cycle, single-cylinder, air-cooled, vertical shaft,gasoline, OHV, with cast ironliner.
J1940 Torque lbs. ft (Nm)1 7.75 (10.5)
Displacement cu in (cc) 10.6 (173)
Bore in (mm) 2.7 (70)
Stroke in (mm) 1.8 (45)
Compression Ratio 8.51
Dry Weight lbs (kg) 26.9 (12.2)
Oil Capacity U.S. quarts (L) 0.625 (0.59)
Lubrication Splash
Dimensions L x W x H in 17.1 x 13.9 x 11
Backpressure Limit 40
J1995 Torque lbs ft (Nm)3 7.46 (10.11)
Features TModel# XT7675, 25mm x 2.66'' Crankshaft, Tapped 38''-24

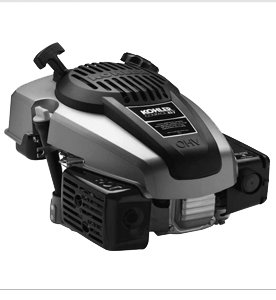

KOHLER XT775 Single Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
For use on walk behind mowers and utility equipment
Cool-Running OHV Design Means Your Engine Will Last
Avoid costly trips to the repair shop
Tough, Cast-Iron Cylinder Liner
Engine will last longer in harsh mowing conditions
Front Tube Outlet Muffler
Quiet operation is ensured
Reduce Noise
Muffler that directs exhaust away from you
Consistent-Cut Technology
Higher-quality cut
Accu-Fill Technology
