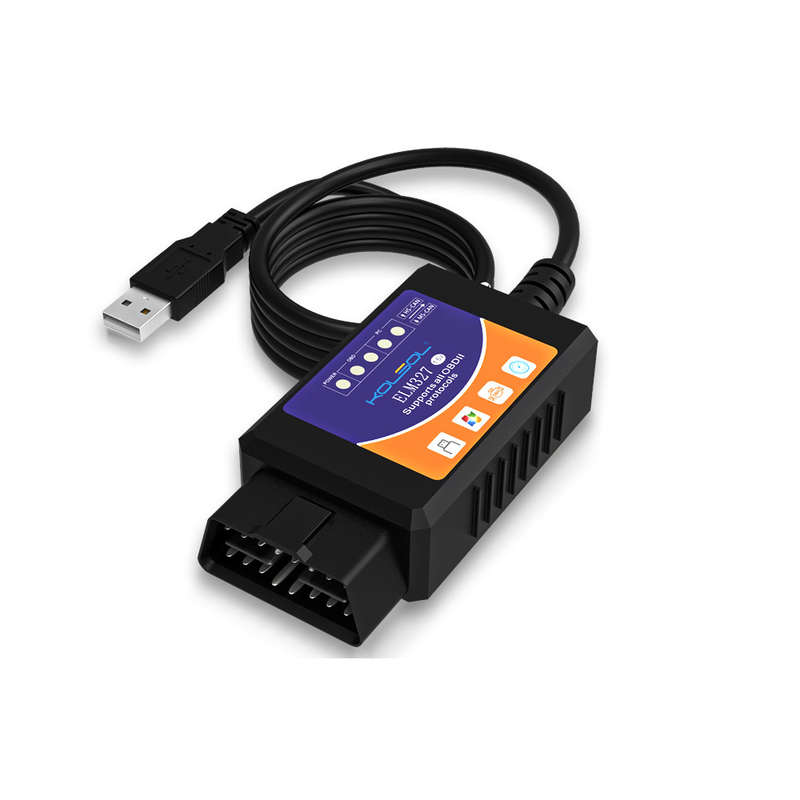

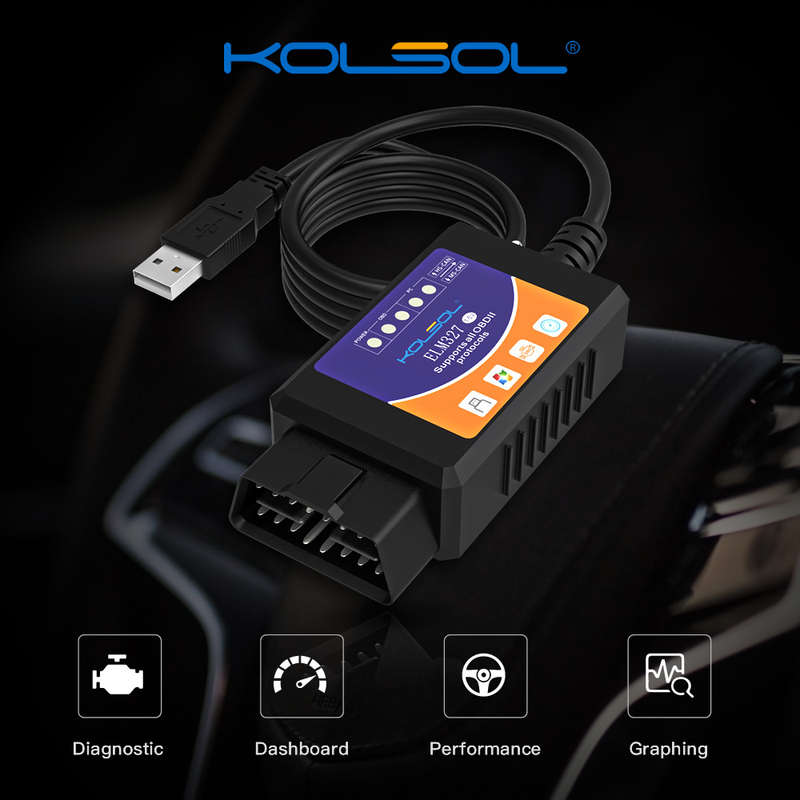

KOLSOLELM327V1.5 USB OBD2Automobile Diagnostic Scanner Tool With Switch Modified 12V For Ford Specifications: SSID: USB OBD2
Ranging: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions:2.75 x 1.25 x 1.2 inches

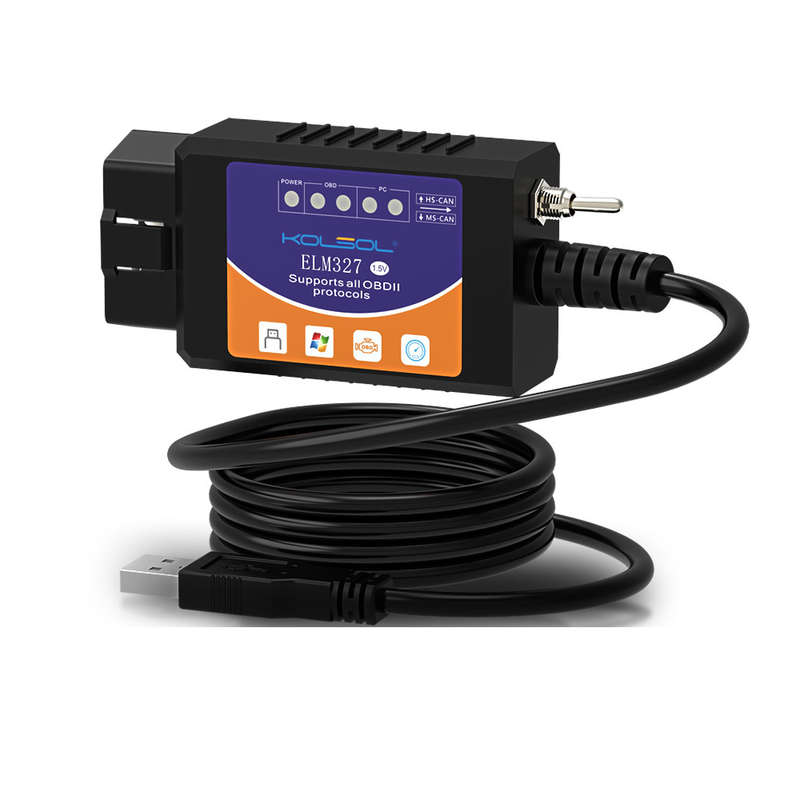

Highlights: 1.The modified version of the ELM327 converts the HS-CAN and the MS-CAN.
2.Support FORD models open hidden function.
3.It supportsallOBD-II protocols.
4.ELM327 Will work with12 V gasoline and diesel vehicles.Requires OBD II protocols.
5.In addition to adding functionality to Ford, the device can also be used as a regular OBD2 / EOBD diagnostic on a vehicle.
6.Supported System:Windows XP, Windows 7
Functions: 1.Read/erase fault codes from allmodules, including OBD2/EOBD
2.Access modules on both HS-CAN and MS-CAN mode
3.Read vehicle configuration
4.Actuator tests
5.Live Data
6.Injector coding
7.Software update
8.Service program
9.Force DPF regeneration
10.Programming
11.Coding
12.Adaptation
Vehicle Coverage: | America | for Chrysler, for Dodge,for Jeep,for Ford,for Chevrolet,for Cadillac,for Lincoln,for Buick,for Hummer, etc. |
| Asia | forHonda,for Nissan,for Lexus,for Toyota,for Mazda,for Mitsubishi,for Hyundai,for Kia,for Isuzu,for Suzuki,for Land Rover,for Daewoo,for Chery,for BYD F3/F0,for Infiniti,for Subaru, etc. |
| Europe | forAudi,for BMW,for Citroen,for Fiat,for Mercedes,for Opel,for Peugeot,for Renault,for SEAT,for Skoda,for Volvo,for Volkswagen,for Jaguar,for Lamborghini,for Maserati,for Bentley,for Rolls Royce,for Porsche,forOpel,for Lancia,for Mclaren ,for Ferrari, etc. |
Other mainstream models that comply with the international standard obd2 agreement.
Supported Software: ELMconfig
Forscan
FOCCCUS
FF2
Supported protocols: 1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)

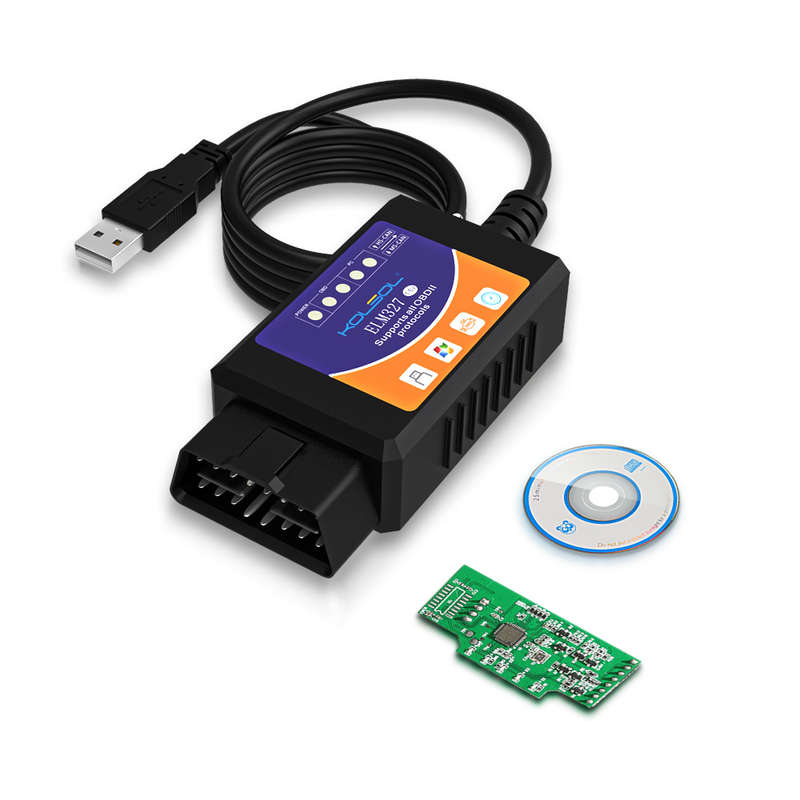

User Manual: Package includes: 1PC x KOLSOL ELM327 USB OBD2 Scanner V1.5
1PC xCD-ROM
