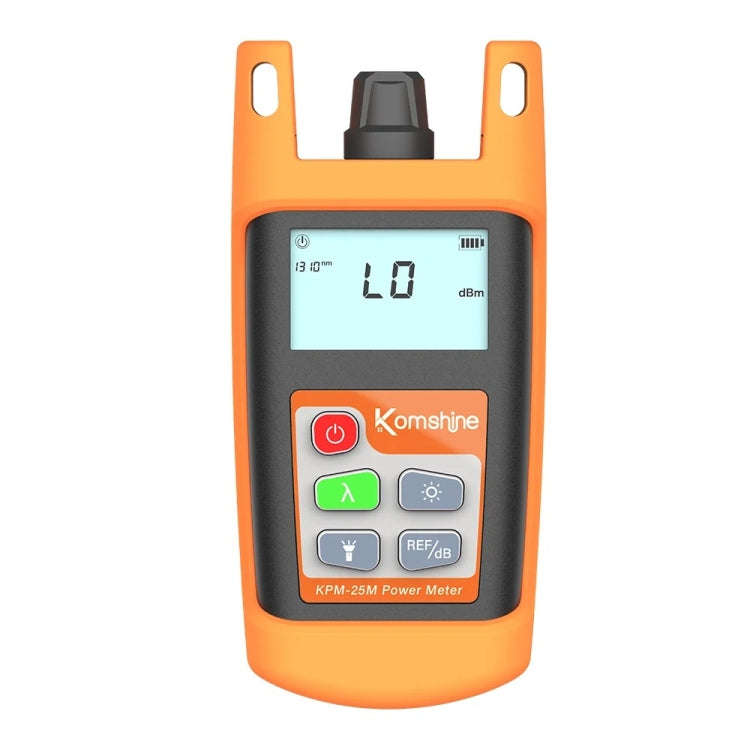

Komshine Mini Handheld Optical Power Meter Fiber Loss Measurement, Specification: KPM-25M-C/-50DB...

1. Wavelength range: 800 ~1700nm
2. Probe type: InGaAs
3. Power measurement range: -70~+6dBm/-50~+26dBm

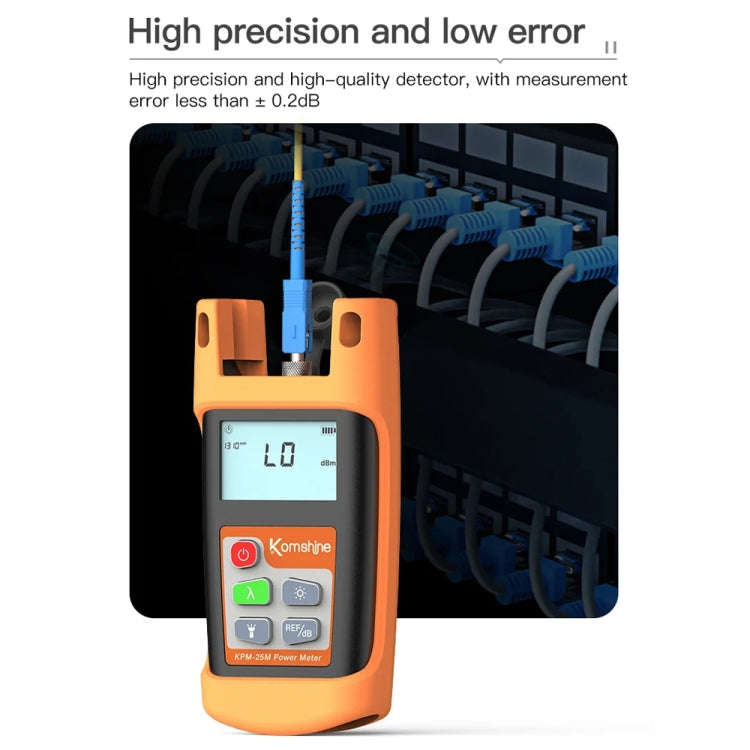

4. Accuracy: 0.2dB

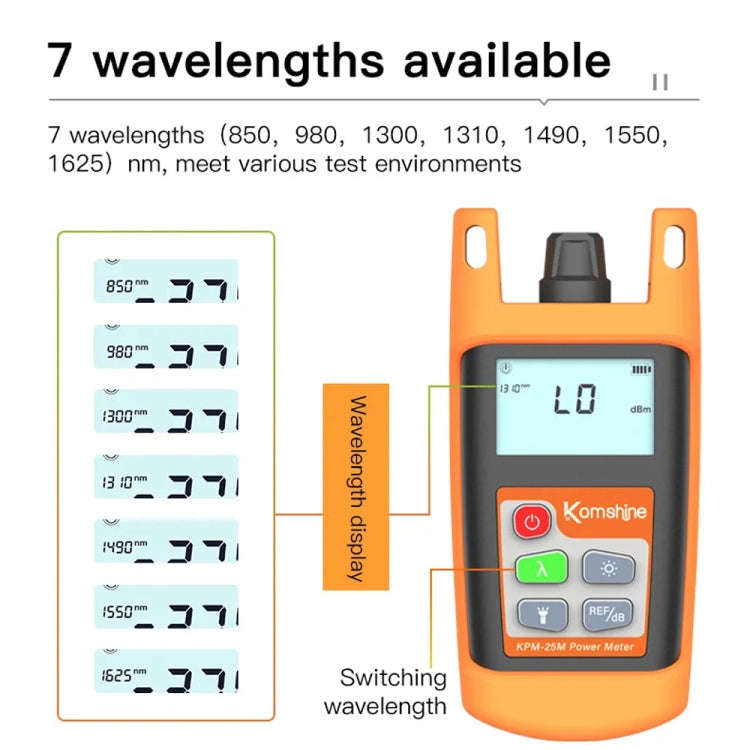

5. Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625nm
6. Display resolution: 0.01dB
7. Automatic shutdown time: 10min
8. Battery working time: 20h
9. Type A: -70dBm～+6dBm (mainly used in telecommunications, mobile, China Unicom, etc.)
10. Type C: -50dBm～+26dBm (mainly used in radio and television, monitoring, etc.)
11. Power supply: alkaline battery 2xAAA 1.5V battery (not included)

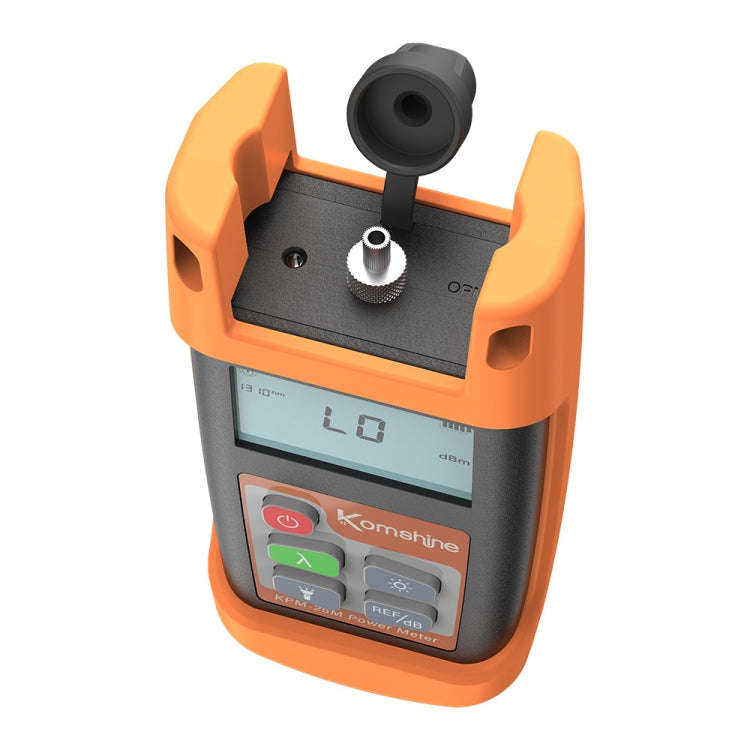

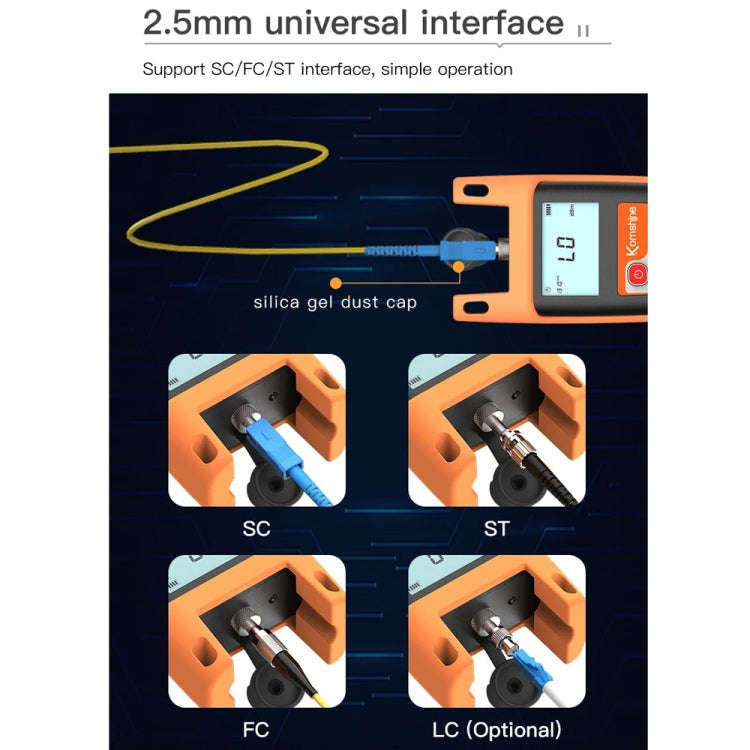

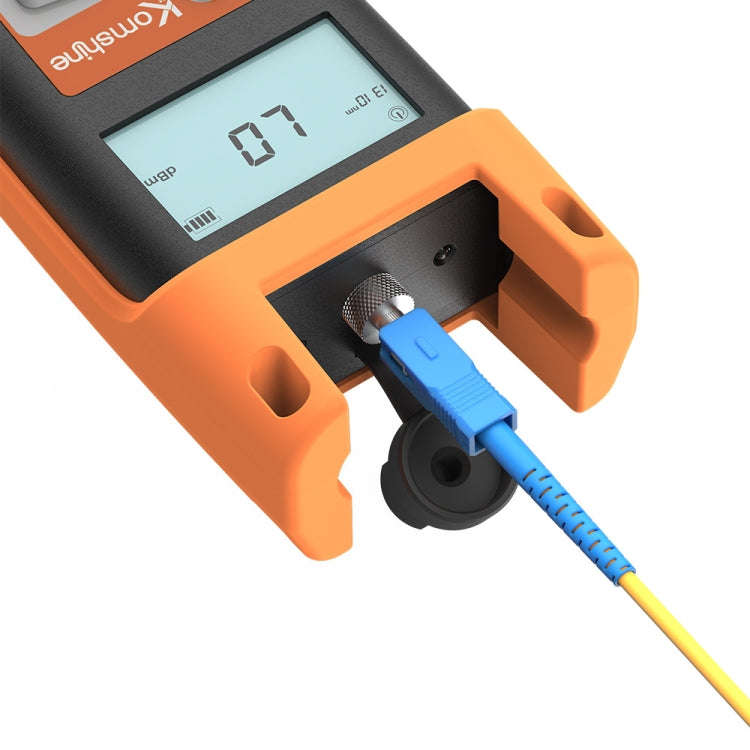

12. 2.5mm universal interface design support, SC/FC/ST interface, simple operation

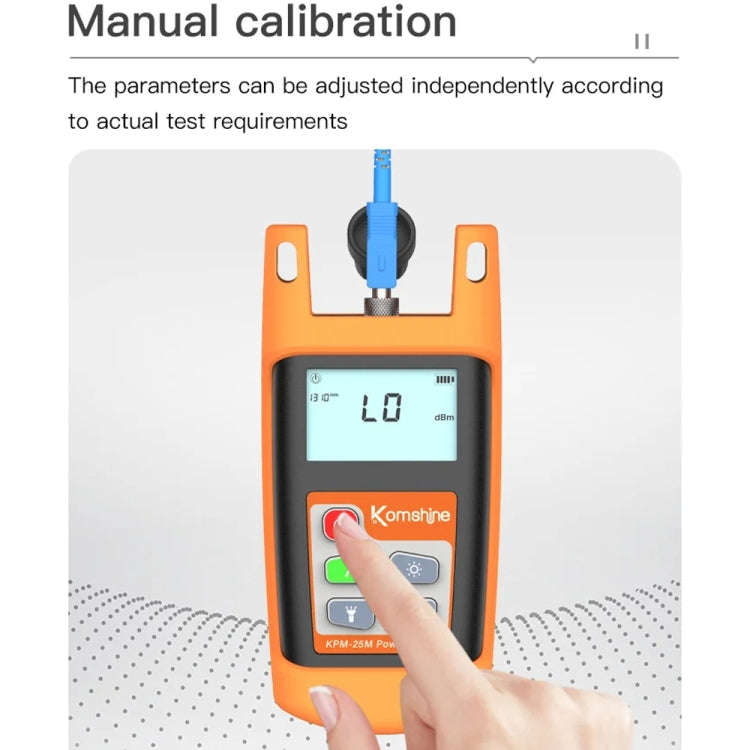

13. Manual calibration is possible, and test parameters can be adjusted independently according to actual test needs.

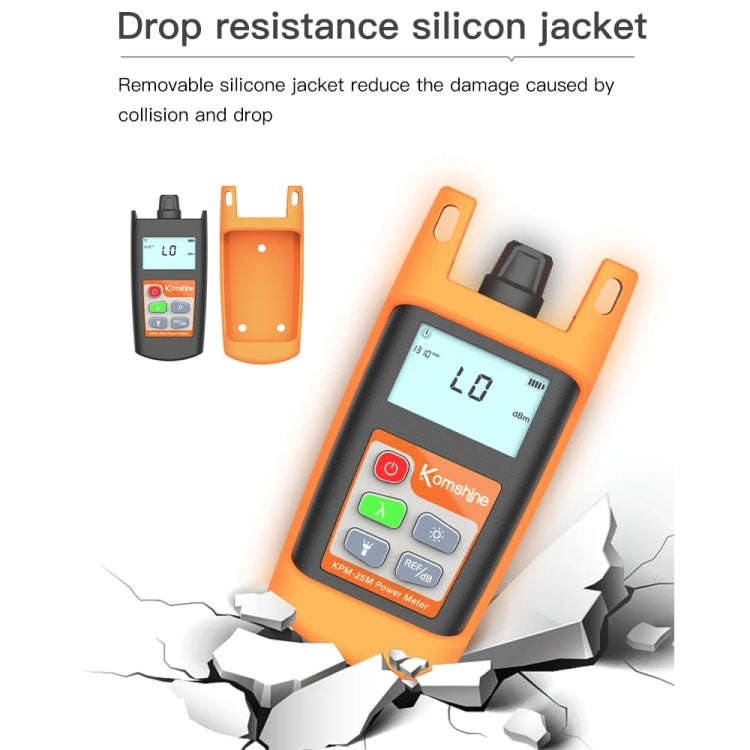

14. Removable silicone cover, split design provides better protection and can reduce damage caused by collision and falling to a certain extent.

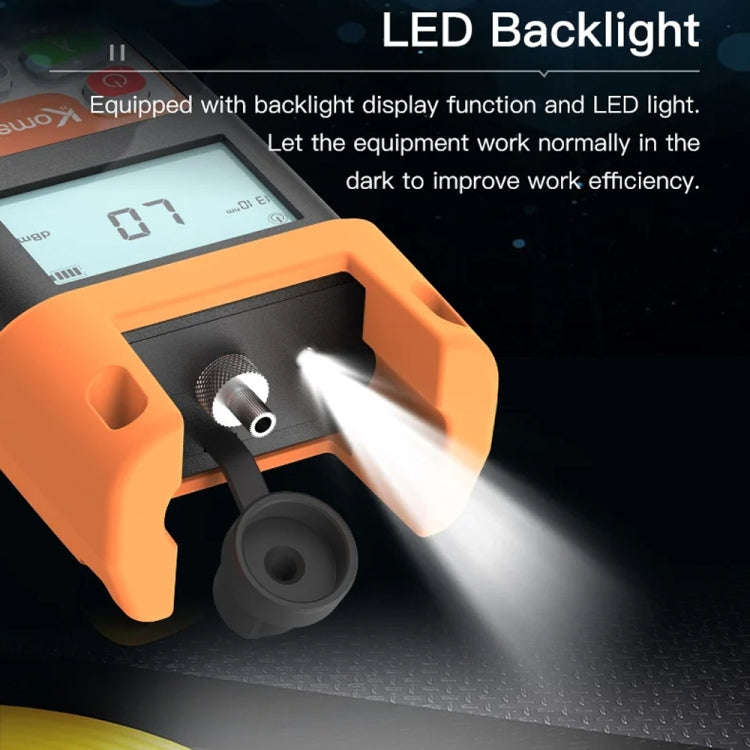

15. It has a built-in backlight display function and is equipped with a high-brightness LED flashlight, so that the device can work normally in the dark, thus improving work efficiency.

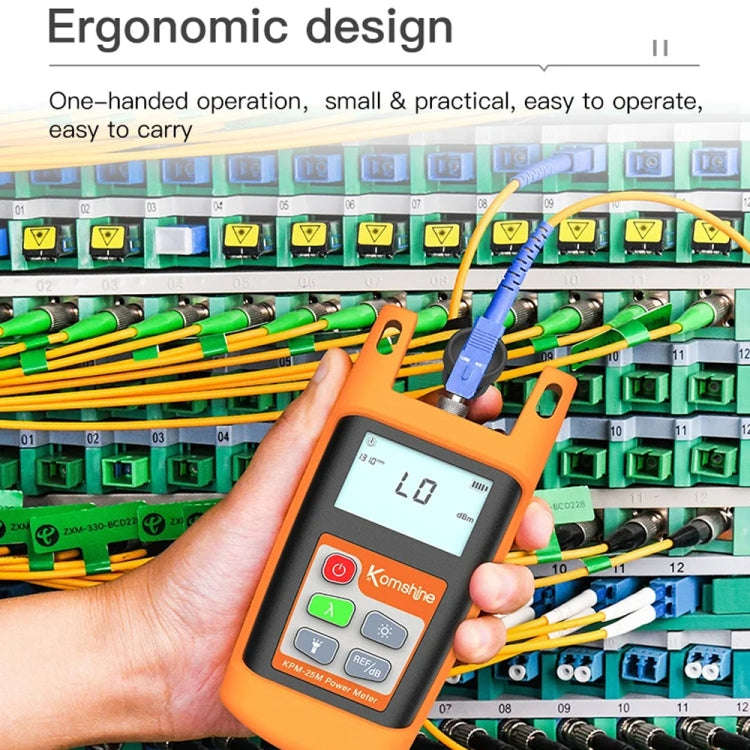

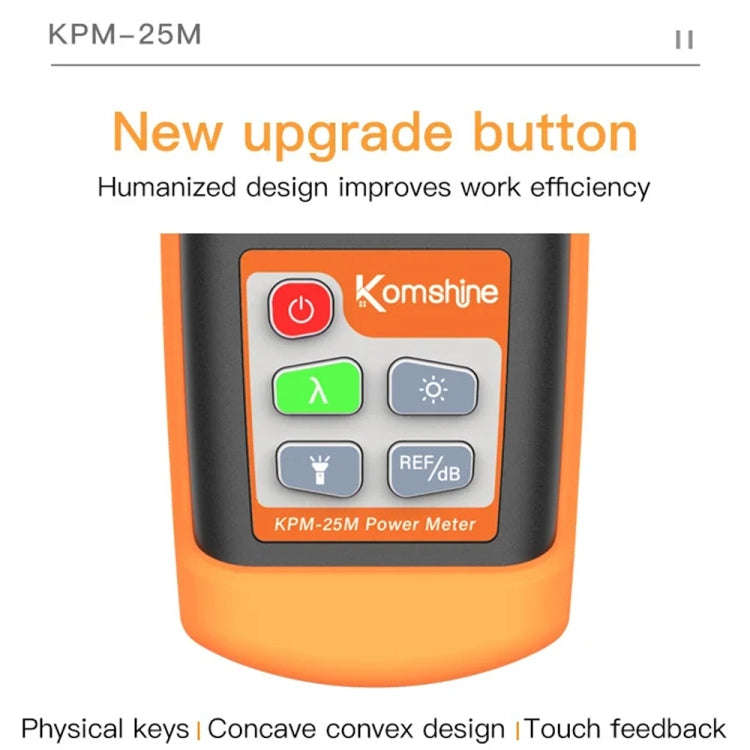

16. Ergonomic design, operable with one hand, small and practical, easy to carry

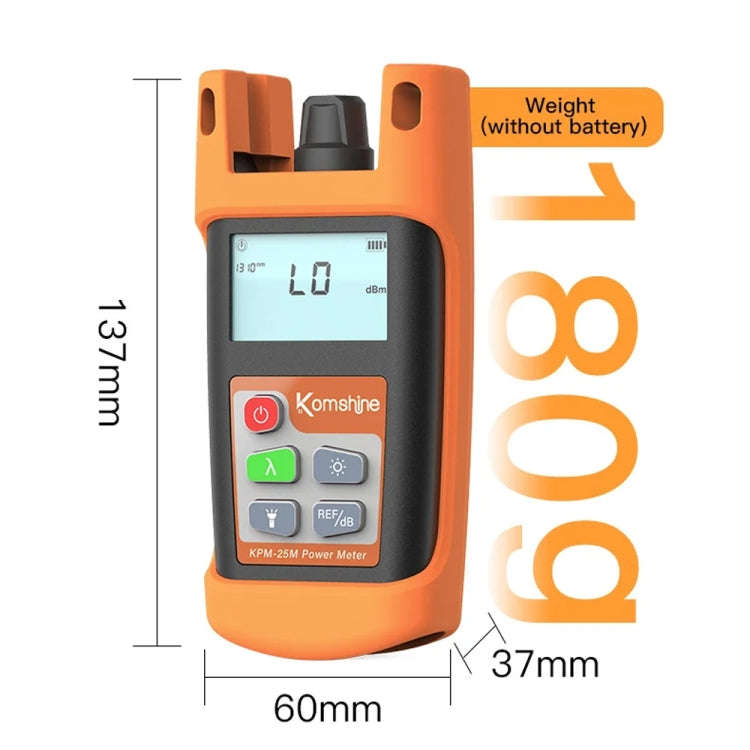

17. Weight: 180g
18. Overall dimensions: 137x60x37 mm
