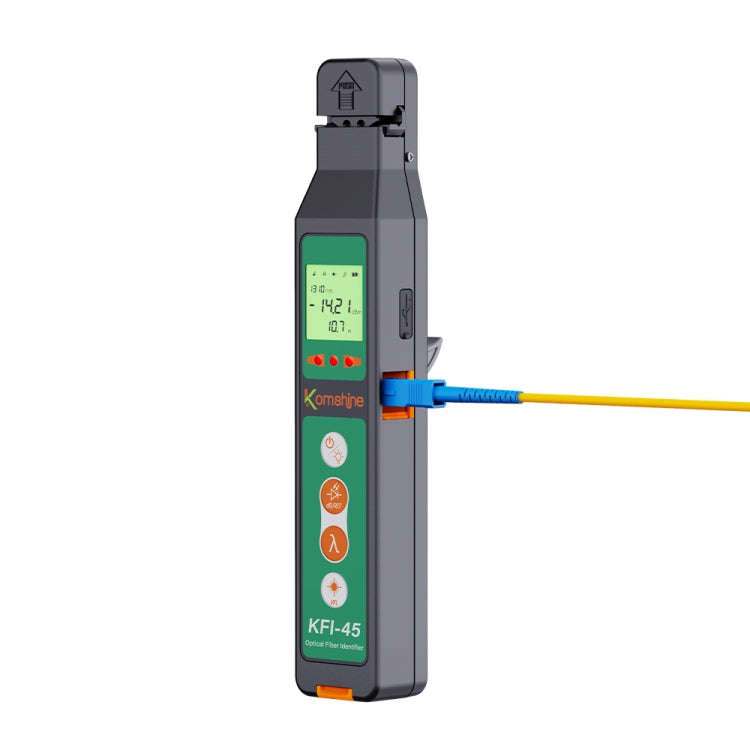

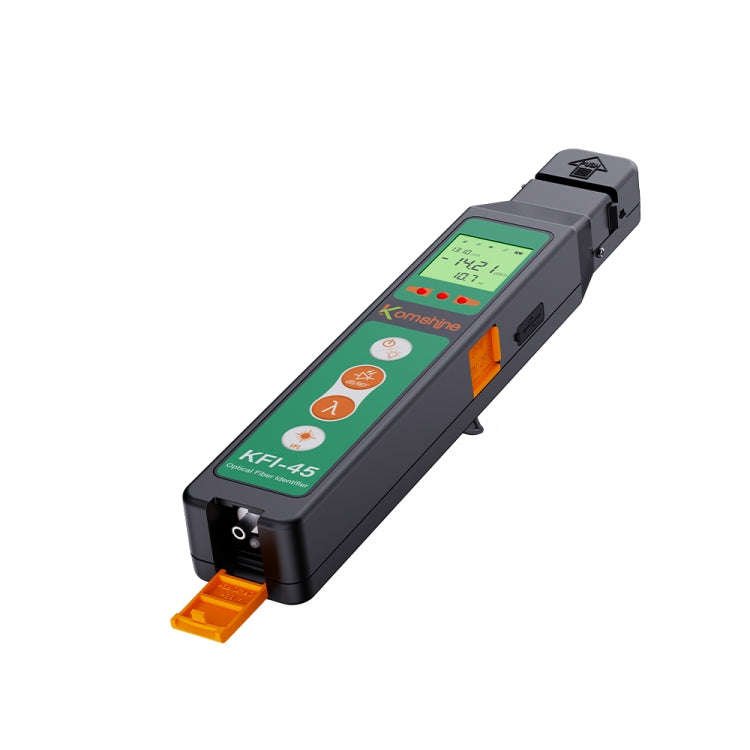

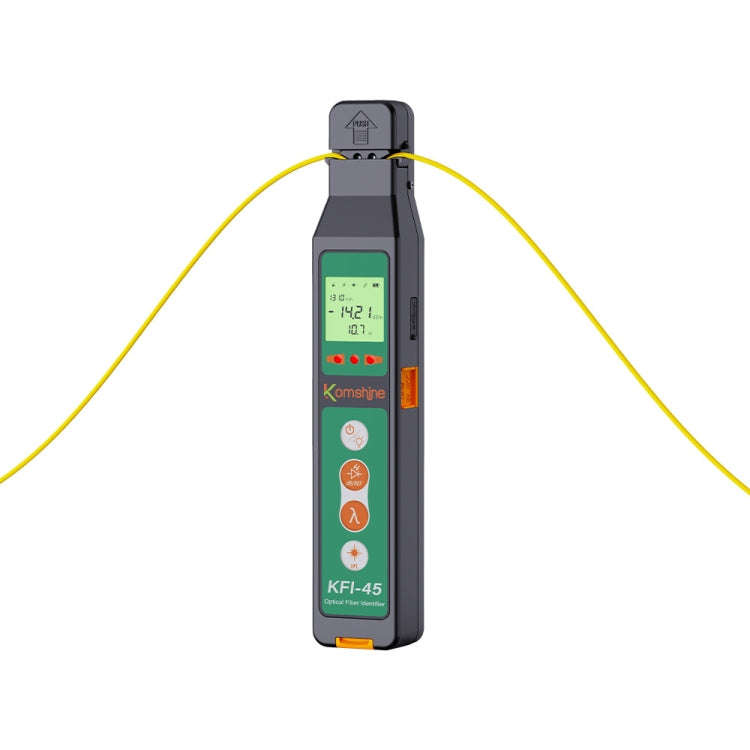

Komshine Optical Fiber Signal Direction Identification Instrument, Model: KFI-45-G
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD0604225301
Bob Shop ID
603518182
1. Wavelength identification range: 800-1700nm
2. Detector type: 1mm InGaAs 2 pcs
3. Optical power reading range: -40 dBm to 10 dBm
4. Signal frequency range: 270Hz, 1kHz, 2kHz
5. Power supply type: KFI-45-L uses lithium battery for power supply, KFI-45-G uses AAx2 for power supply (not included)

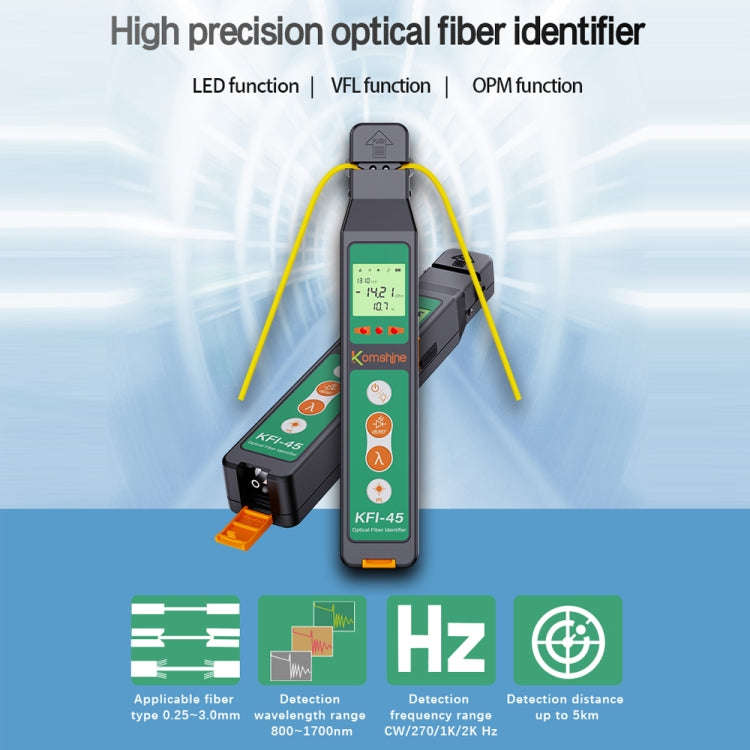

6. Applicable fiber type: 0.25~3.0mm
7. Detection wavelength range: 800-1700nm
8. Detection frequency range: CW/270/1K/2K Hz
9. Detection distance: up to 5km
10. Size: 219x45x28mm
11. Weight: 235g
VFL features:
1. Power range: 1mW
2. Test distance: 3-5km
3. Wavelength range: 650nm
4. Laser type: LD
5. LED flashlight: supported
OPM features:
1. Wavelength range (nm): 800-1700
2. Power measurement range (dBm): -70 to +6 dBm/-50 to +26dBm
3. Standard wavelength (nm): 850, 980, 1300, 1310, 1490, 1550, 1625
4. Connector: 2.5mm universal adapter + SC
5. Probe type: InGaAs
Illustrate:

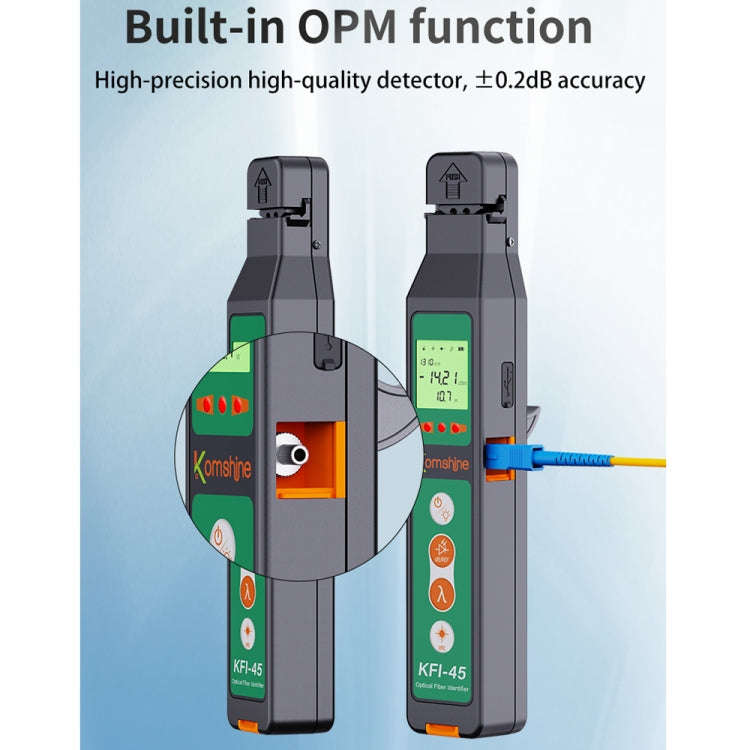

1. Comes with OPM function, high-precision high-quality detector, 0.2dB accuracy

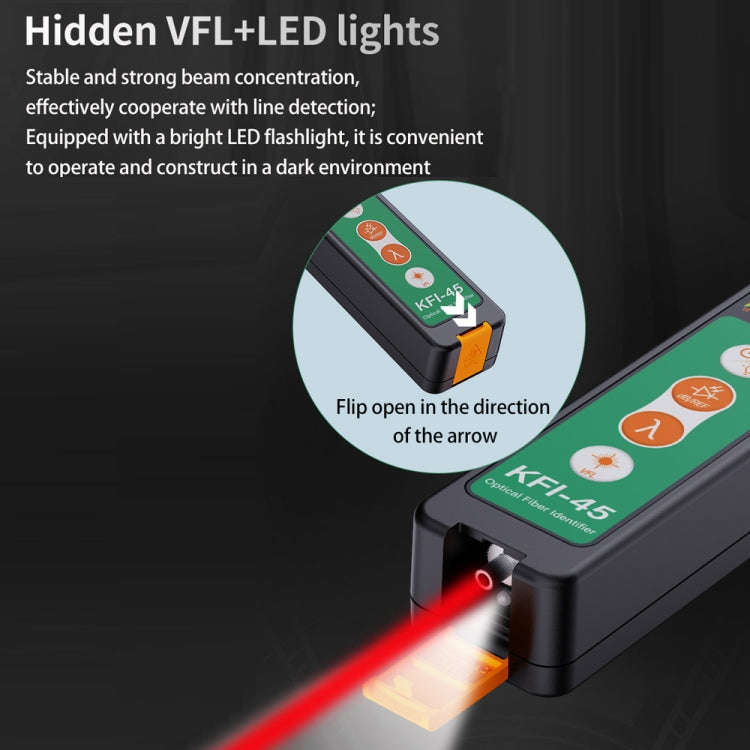

2. Hidden VFL+LED light, stable and powerful beam concentration, effectively cooperates with line detection, equipped with high-brightness LED flashlight, easy to operate in dark environment

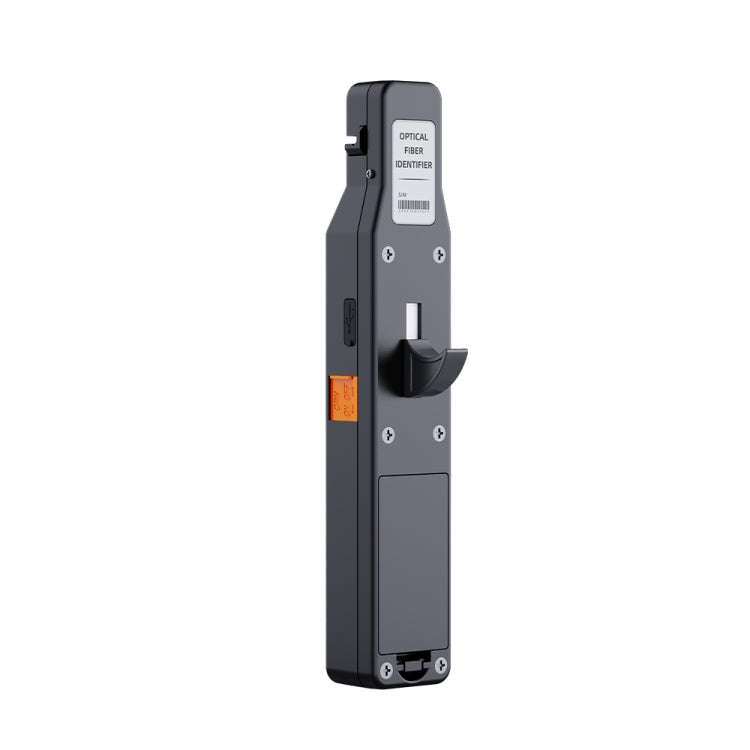

3. Ergonomic design. When holding the machine, press the trigger and switch on the back with your index finger, clamp the fiber optic cable, and automatically start testing.

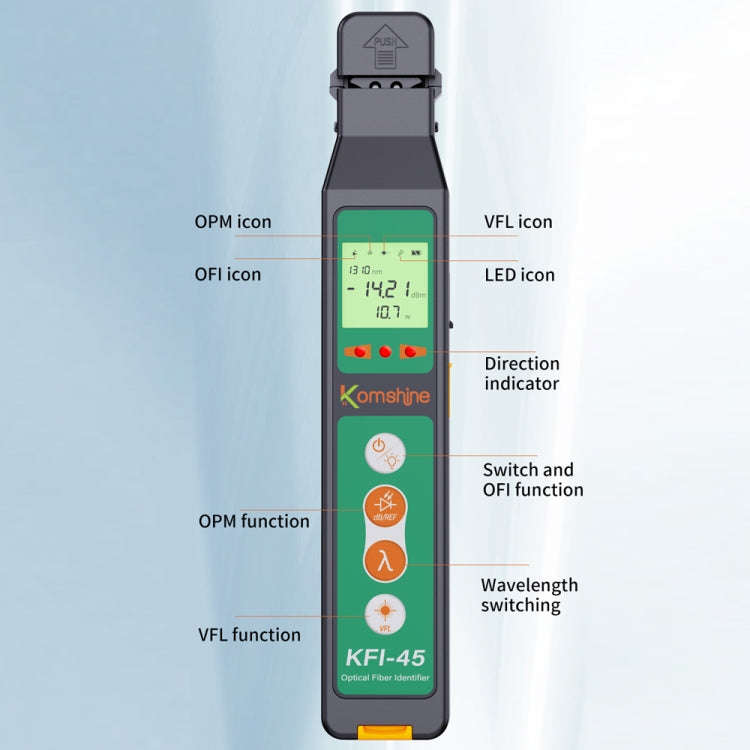

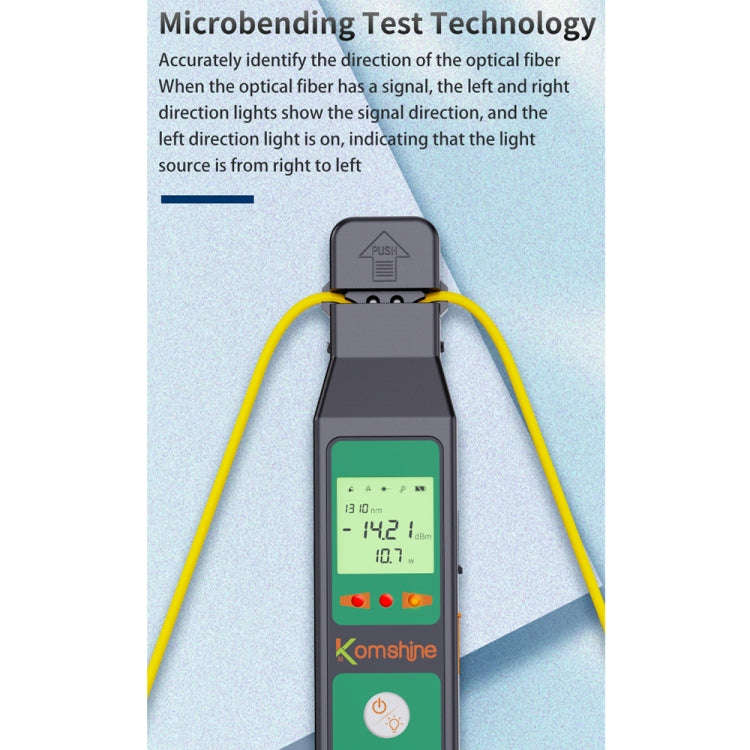

4. Accurately identify the direction of the optical fiber. When there is a signal in the optical fiber, the left and right direction lights show the signal direction. The left direction light lights up indicating that the light source is from right to left.

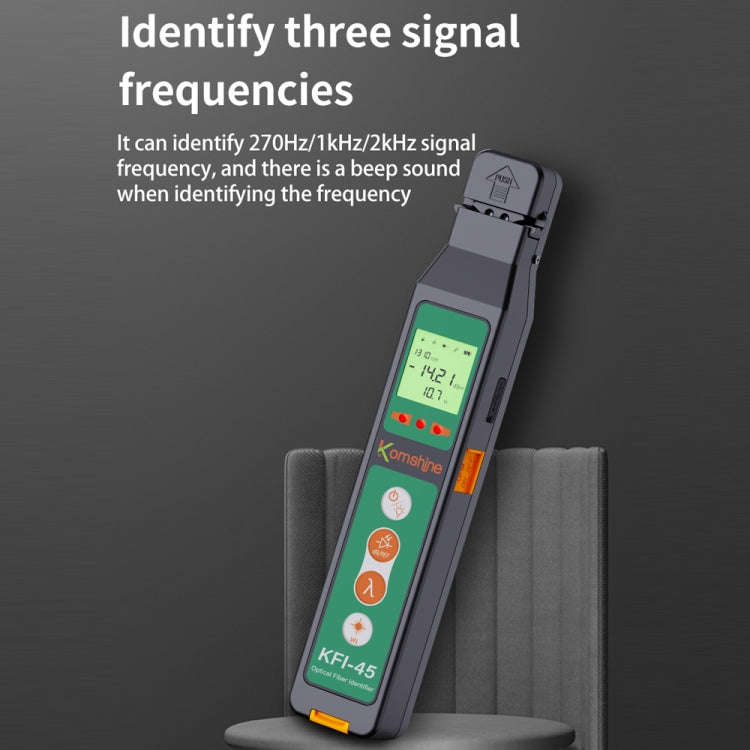

5. Identifies three signal frequencies, and can identify 270Hz/1kHz/2kHz signal frequencies. There will be a buzzing sound when the frequency is identified.

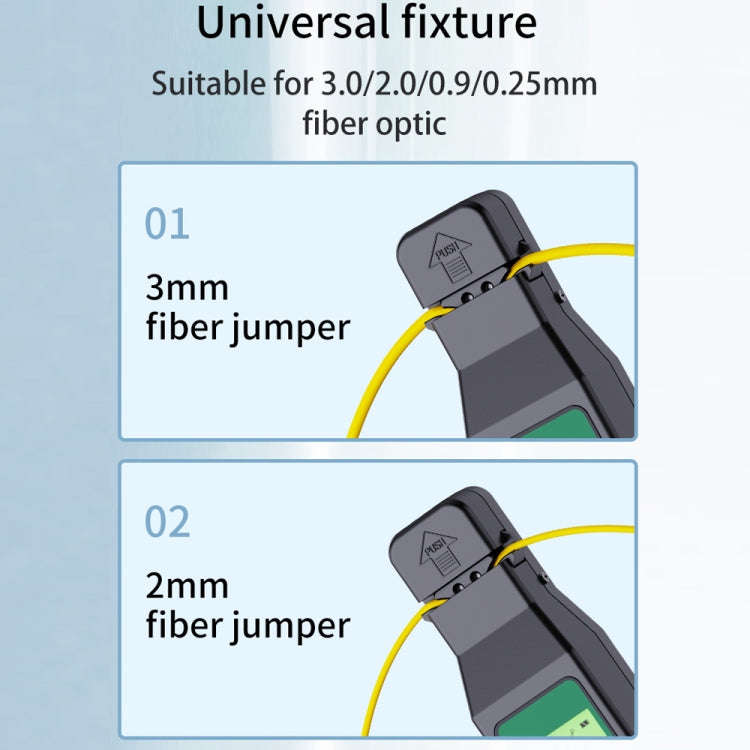

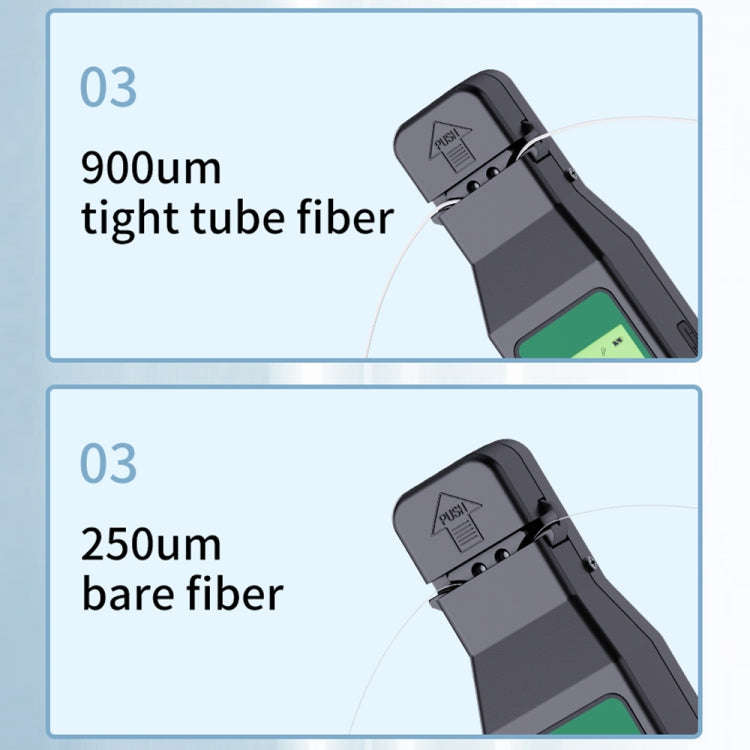

6. Universal clamp, suitable for 3.0/2.0/0.9/0.25mm fiber optic cable
