Description

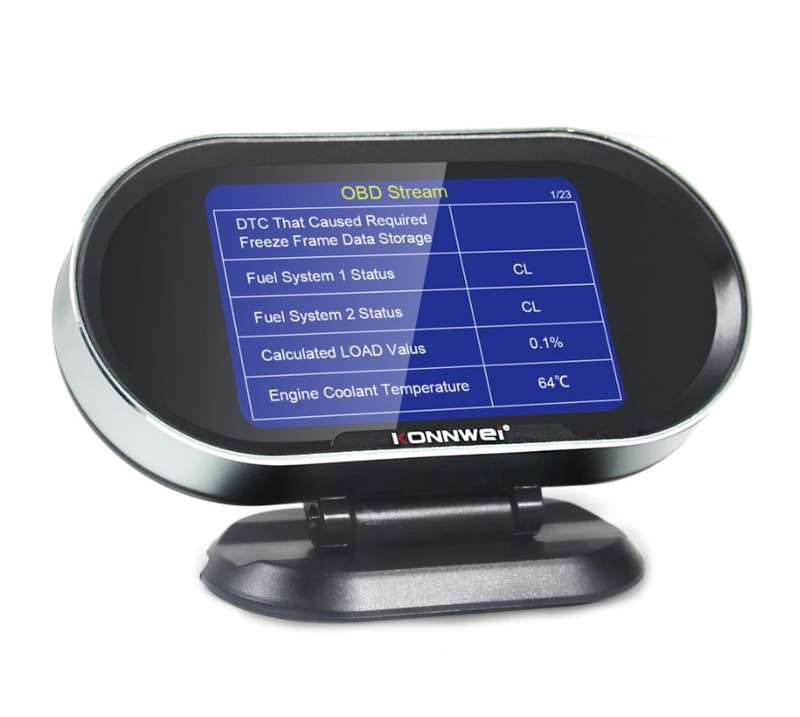

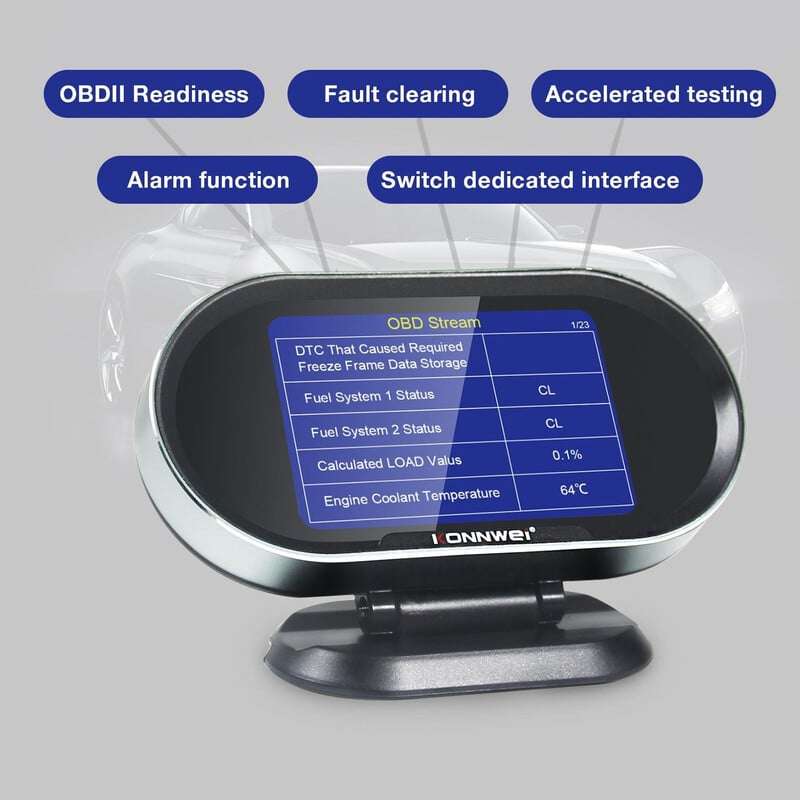

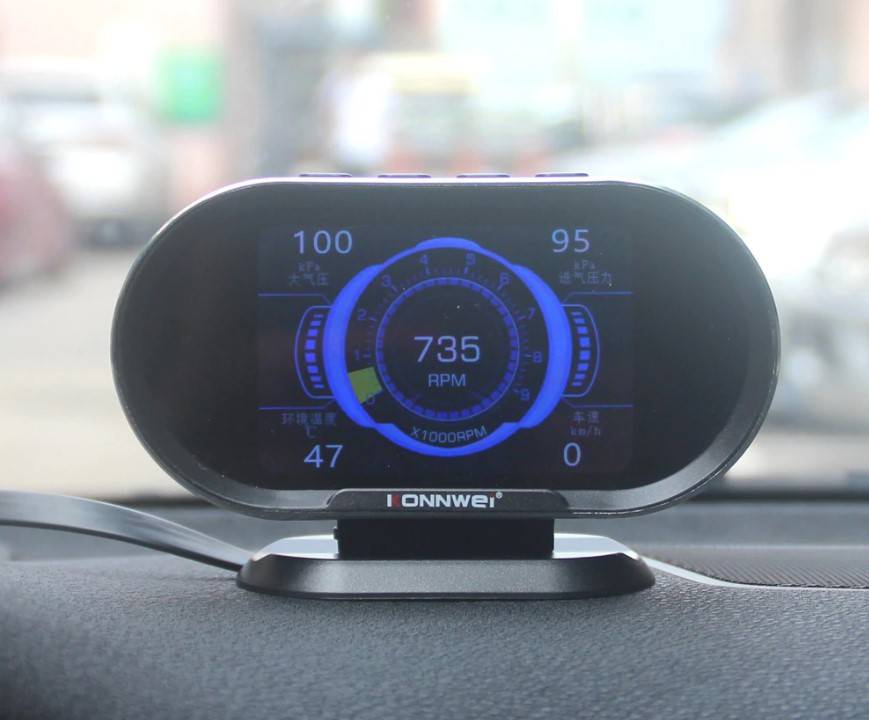

Real-time Monitoring: Monitoring the real-time car ECU data and display it on the four corners of the screen at the same time (up to 95 groups selectable), use KW206 OBD speedometer never miss any data!

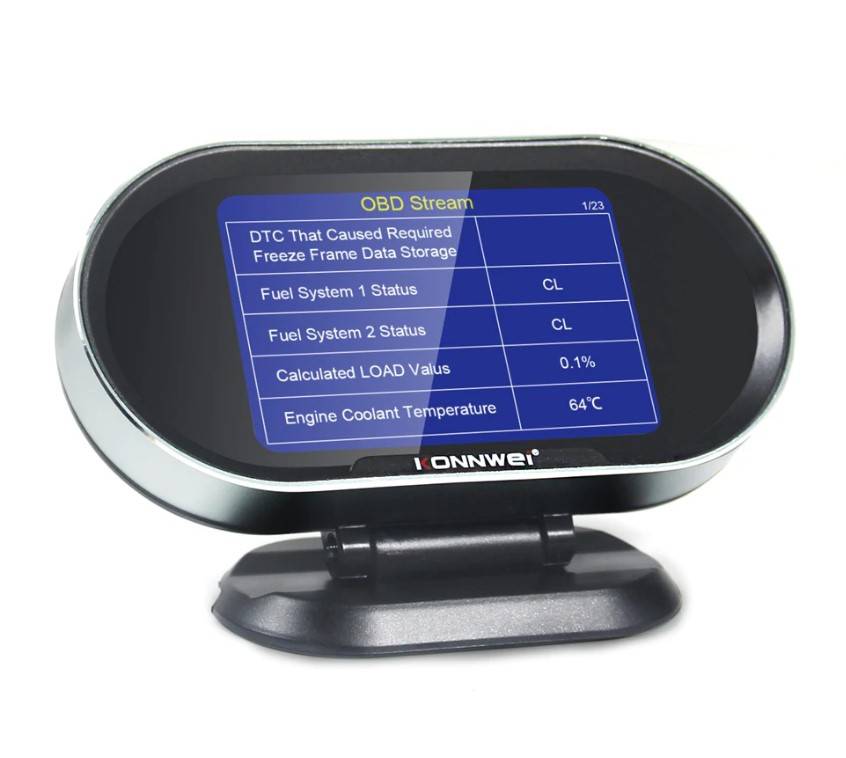

Car OBD2 Code Scanner: KW206 Car OBD2 HUD includes a diagnostic scan tool that can check for Diagnostic Trouble Codes (DTCs), clear the codes, and turn off the "Check Engine" light on 1996 and newer vehicles. If any DTCs are found, KW206 code reader will show how many there are as well as the codes themselves. Then you can use the Internet or repair manual to find out which is the failed part is, so you can repair it yourself or know what needs to be fixed at the mechanic's shop.
Features/Functions

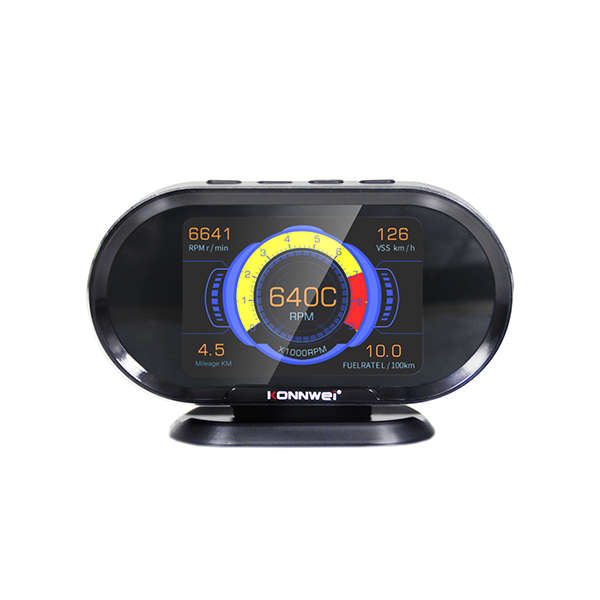

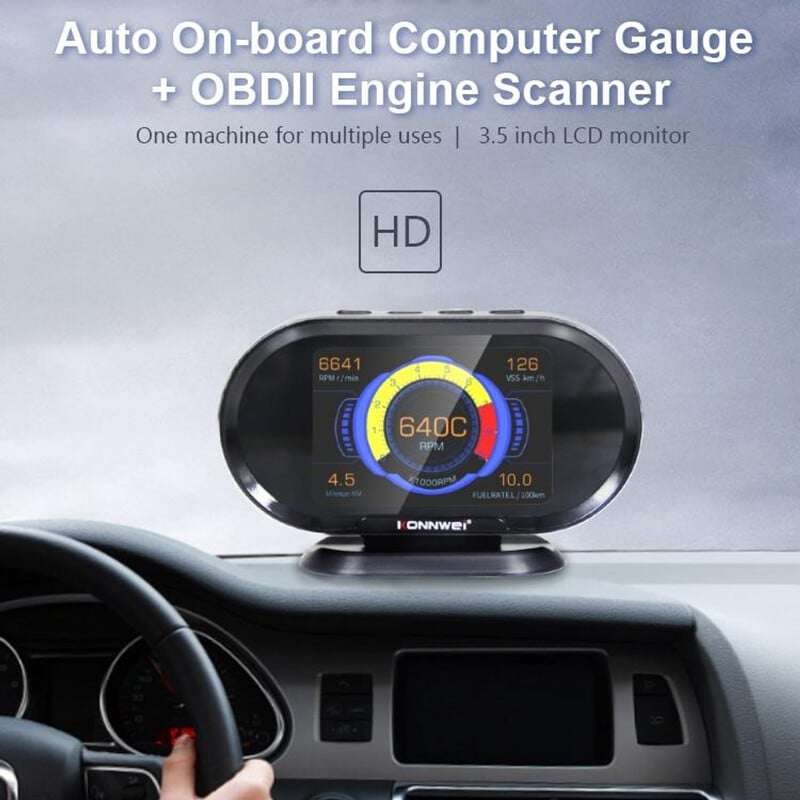

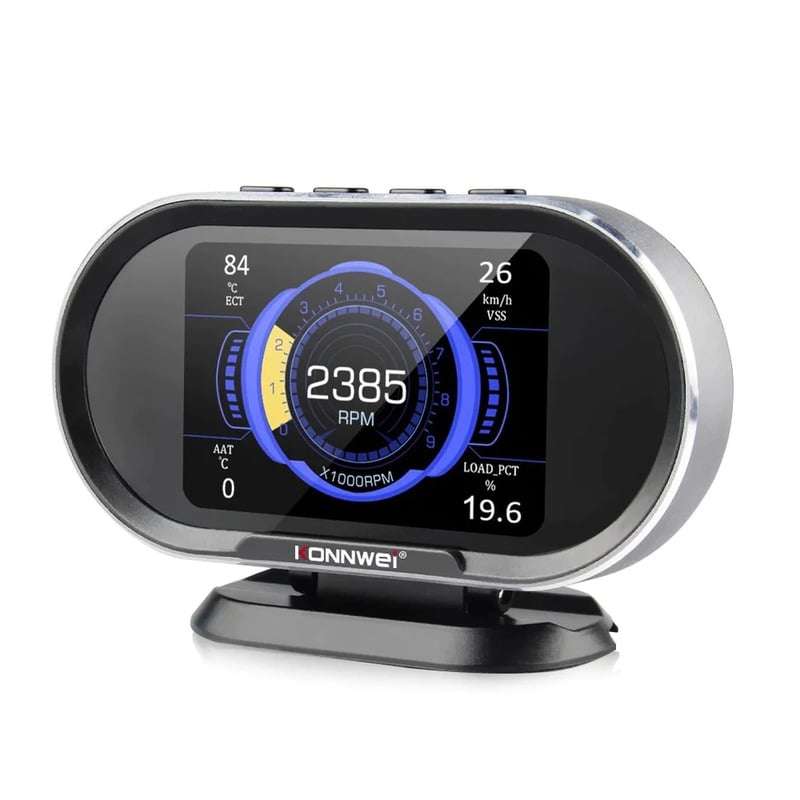

- The HUD (Head-Up-Display) integrates the speedometer, engine temperature gauge, oil thermometer, boost gauge and fuel consumption meter in one.
- Can display instantaneous and average fuel consumption.
- Supports vehicle key data alarm functions (voltage, water temperature, speed, etc.)
- There are multiple dedicated systems that can be switched freely.
Specifications
- Display: TFT color display(0*320)
- Operating temperature: 0-60
- Storage temperature: -20 to 70
- External power: 8.0 to 18.0V power provided via vehicle battery
- Dimensions: 130mm*25.8mm*84mm
- Weight: 0.3kg( without wire) 0.4kg (with wire)
Package Includes
- 1 x Konnwei KW206 OBDII scanner
- 1 x USB cable
- 1 x 16 pin connector
- 1 x User manual
Manual
- Enter the main interface after powering on.
- Long press ESC for 3 seconds to enter the function interface, then test and set according to needs.
- Short press the ESC button to return to the dashboard interface.
- Short press "A" or "V", and it will flash on the menu.
- When the function data is flashing, short press the OK button. The function data will be enlarged.
- When the function data is flashing, long press the OK button for 3 seconds. Then you can enter 95 function options and you can choose the data you want to review.
