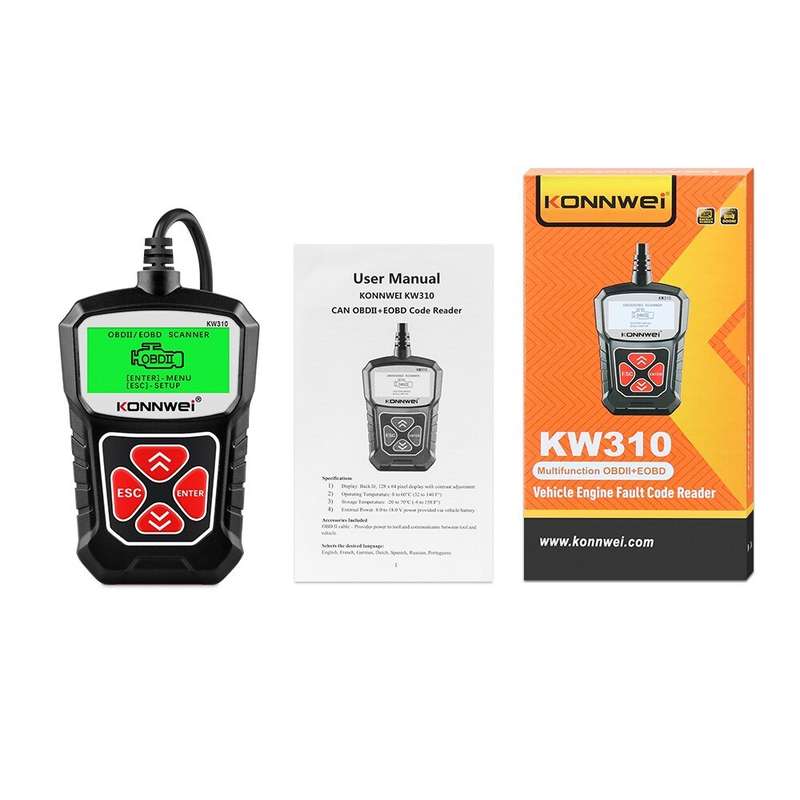

Konnwei KW310 Diagnostic Scan Tool (OBD2 Engine Codes & Live Data)

Product Description

The KW310 car diagnostic tool is designed to diagnose and clear faults within the Engine Control Module while being as user-friendly as possible. Focused on smaller workshops and DIY users, the KW310 is a cost-effective way to perform diagnostic functions, and give you a glance into any issues which the vehicle may have.

Functions

1. Works on ALL OBD II Enabled vehicles, both Gasoline and Diesel cars - domestic and imported.
2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.
3. Built-in speaker provide both visual and audible tone for readiness verification
4. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes
5. Easily determines the cause of the Check Engine Light(MIL)
6. Turns off Check Engine Light (MIL), clears codes, and resets monitors
7. Supports all 10 OBDII test modes on all OBDII compatible vehicles to complete the diagnosis.
8. Displays monitor and I/M readiness status (emissions)
9. Reads live PCM datastream
10. Displays live O2 sensor test data
11. EVAP System test data
12. Live sensor data in text mode and graph mode (1996 and newer vehicles)
13. Reads, stores, and playbacks live sensor data
14. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
15. Battery Voltage real-time monitoring, better than other expensive items from other brands.
16. Built-in DTC look-up library and display definition.
17. Retrieves vehicle information (VIN, CIN, and CVN)

Hardware specifications

• 2.0-inch backlit screen and built-in speaker provide visual and auditory indication for readiness verification
• Working Temp: 0 - 60 (32-140 )
• Storage Temp: -20 - 70 (-4 - 158)
• Power: 0.77W
