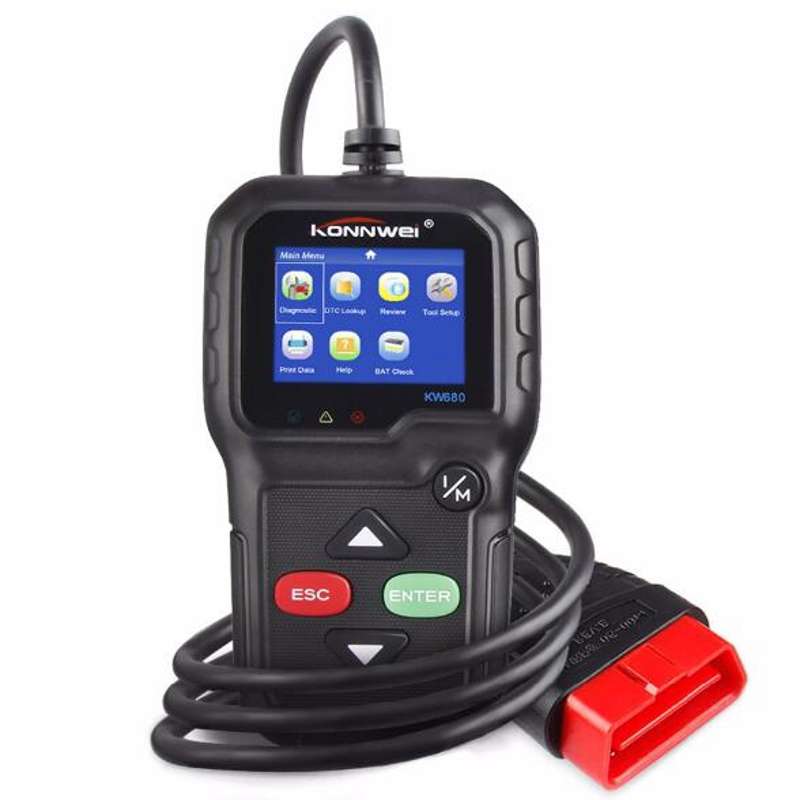

Description:KW680 vehicle scan tool is a professional diagnostic tool, helpful for DIY mechanic or car owners to verify repair, check state emission
monitor status and solve engine problems quickly and efficiently.
Compared with other similar products, KW680 OBD scanner comes with Full OBDII functions, exclusive oxygen sensor and on-board
monitoring test,etc.

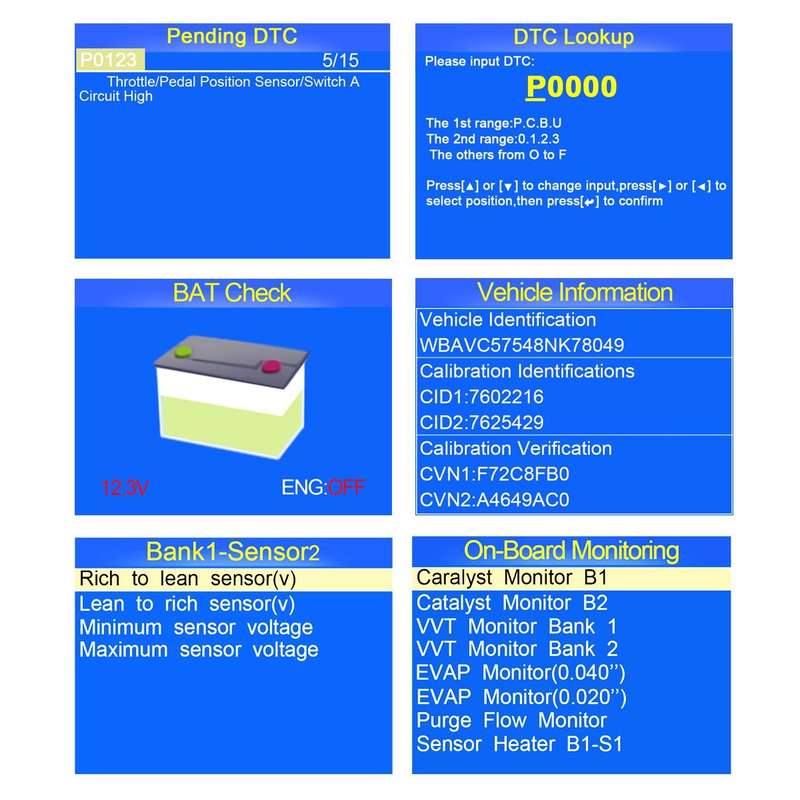

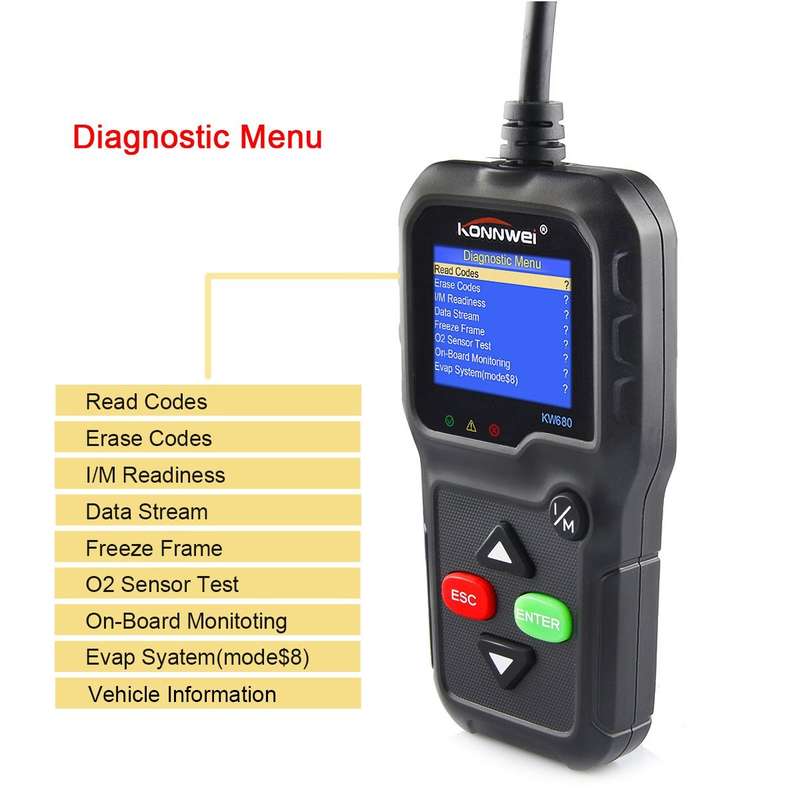

Feature:1.Read Codes. Fast read fault codes from vehicle computer, diagnose the cause of check engine light and provide reference information for troubleshooting.
2.Erase Codes. Clear vehicle error codes and turn off the MIL (CHECK ENGINE LIGHT), resets monitors.
3.I/M Readiness. Provide quick access to emissions readiness status,DTC information and to test misfire.
4.Data Stream. Display the live data in Text and graph,provide real-time information of car working state,show you the status of vehicle and
accurately diagnose fault in time.
5.Freeze Frame. When the emission-related fault occurs,certain vehicle conditions will be recorded by on-board computer and showed as freeze
frame data.
6.O2 Sensor Test. For monitoring and adjust air/fuel mixture,which can identify trouble shooting related to fuel efficiency and vehicle emissions.
7.On-Board Monitoring. Can be utilized to read the results of on-board diagnostic monitoring test for specific components/systems.
8.EVAP System. Initiate a Leak Test Vehicle's EVAP System by monitoring the Integrity of the fuel tank system.
9.Vehicle Information. Display the VIN (Vehicle Identification Number),CID (Calibration ID) and CVN (Calibration Verification Number).

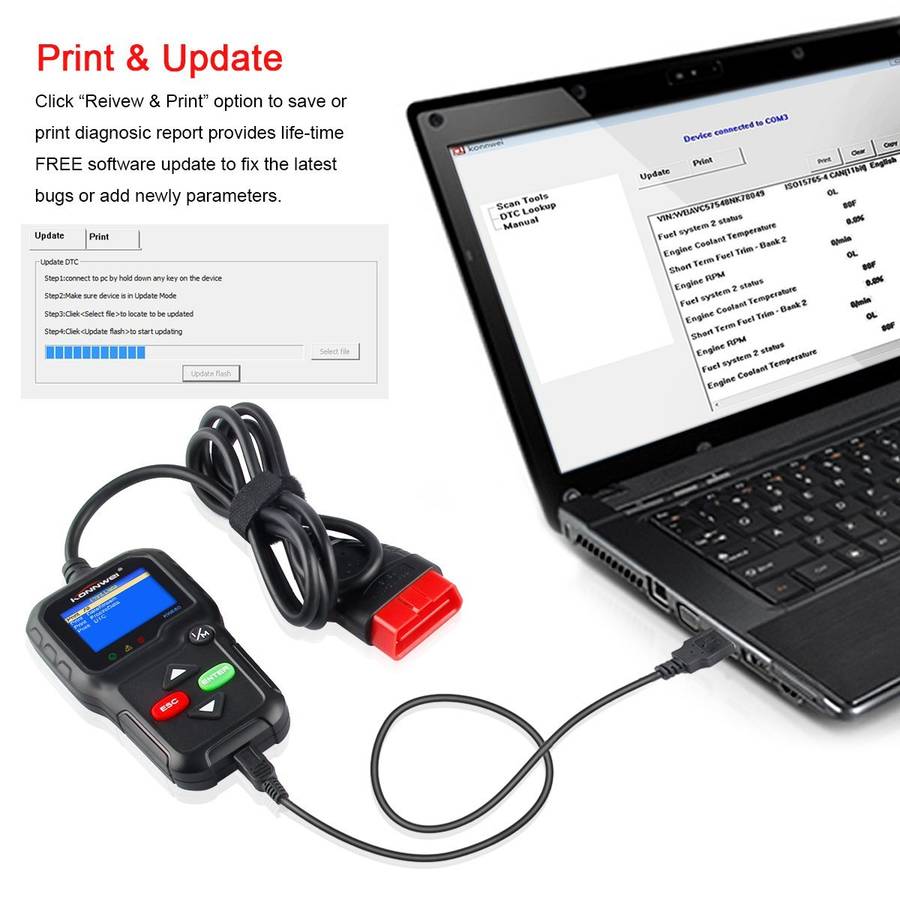

10.Build-in OBD2 DTC Look-up Library and keep updating timely. Supports print out diagnostic report.
Specification:Display: TFT color screen ( 320*240dpi)
Operating Temperature: 0 to 60 ¿¿¿ (32 to 140 ¿¿¿)
Storage Temperature: -20 to 70 ¿¿¿ (-4 to 158 ¿¿¿)
Power: 8 to 18 V provided via vehicle
Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)

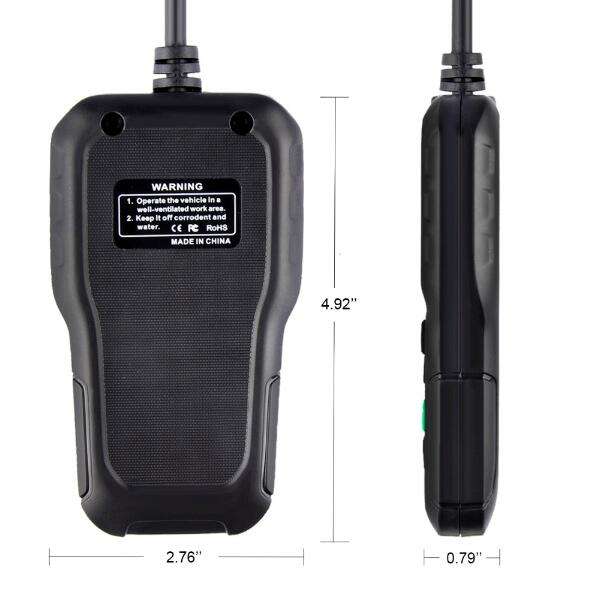

Dimensions: 124mm (4.88in) x 70mm (2.76'') x 20mm (0.79'')
Weight: 0.45KG

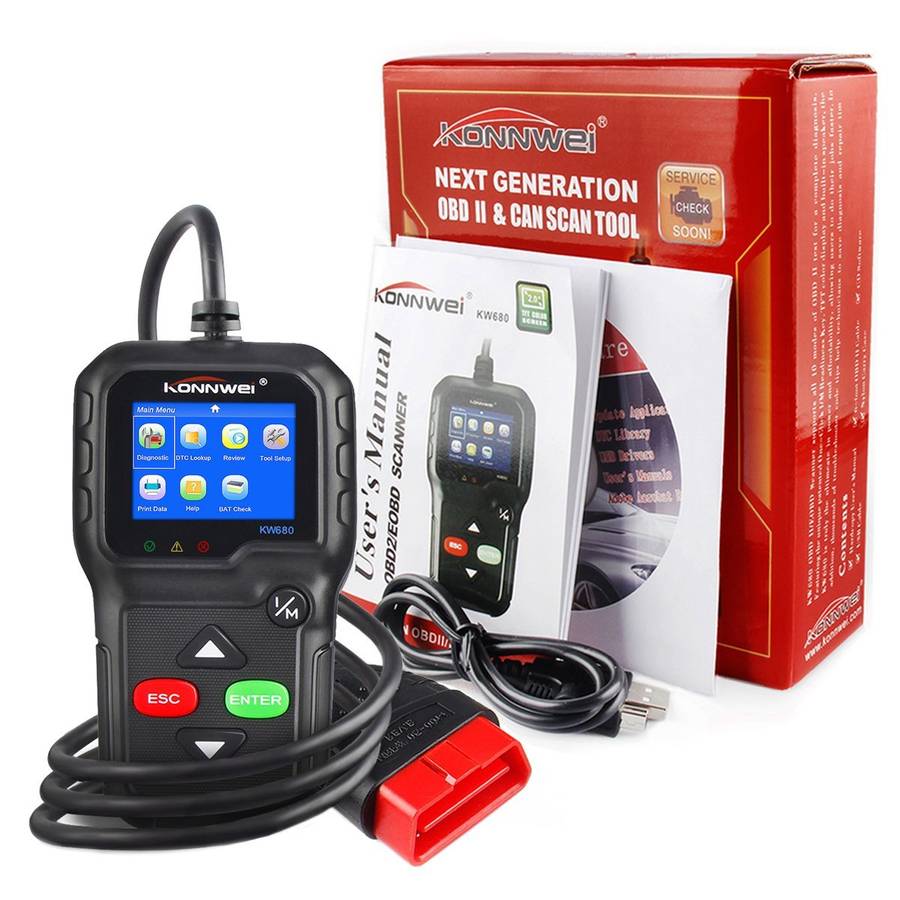

Package Included:1 X KW680 OBD2 Scanner
1 X OBDII Cable
1 X USB Cable
1 X User Manual
1 X CD
