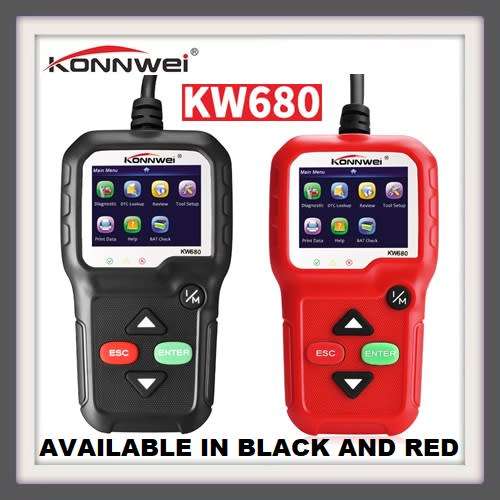

KONNWEI KW680 OBD2 Automotive Scanner AVAILABLE IN RED AND BLACK

SHIPPING 5 TO 10 WORKING DAYS

WE ARE AUTHORISED DEALER OF KONNWEI AND ONLY SELL GENUINE PRODUCTS

Brief Description:

• The KONNWEI KW680 OBD2 / EOBD / CAN Auto Diagnostic Scanner supports all 10 OBDII test modes on all OBDII compliant vehicles for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, Real Time Battery Voltage Monitoring, the KONNWEI KW680 is truly the ultimate in power and affordability, allowing users to do their jobs faster.
• In addition, thousands of troubleshooter code tips(by press ? button) help technicians and home DIY users to accurately diagnose even the toughest problems. With the newest friendly diagnostic interface, KW680 will be the most useful car diagnostic tool for every family and professional mechanic technician!

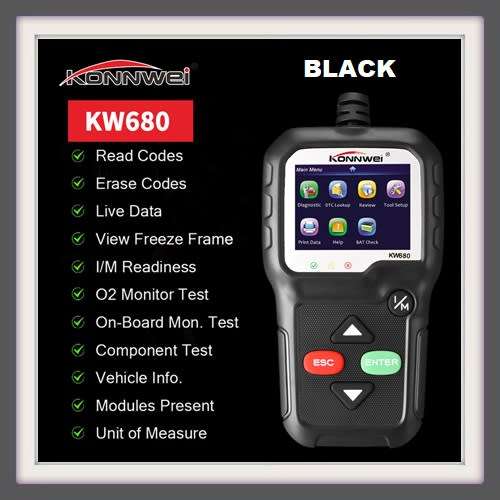

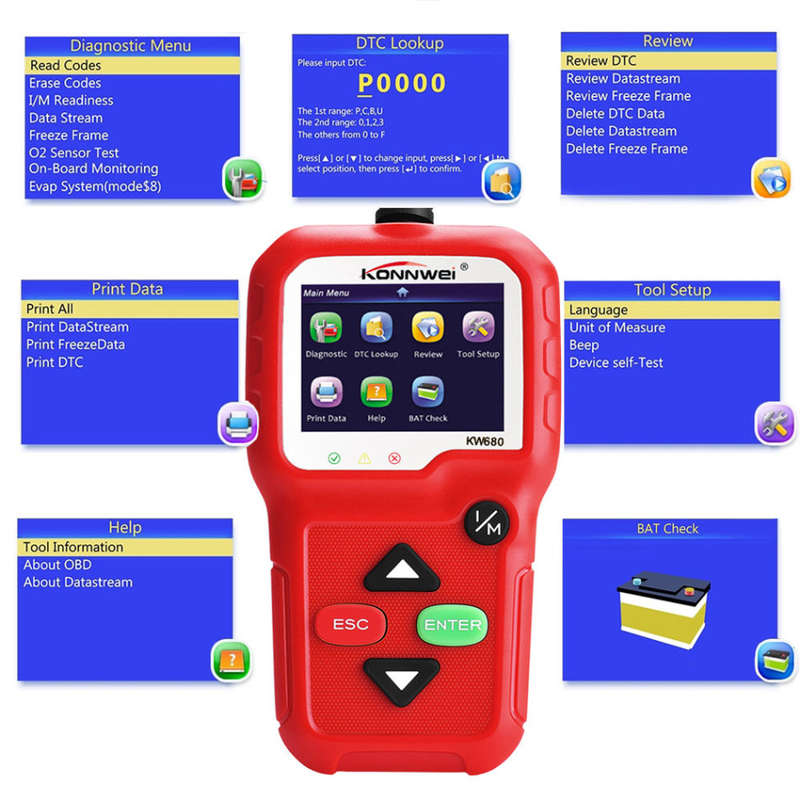

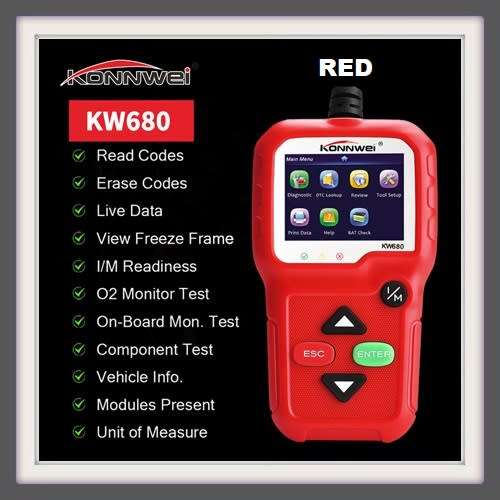

Functions and Feature:

1. Works on MOST 1996 and newer vehicles (OBDII & CAN) - domestic and import

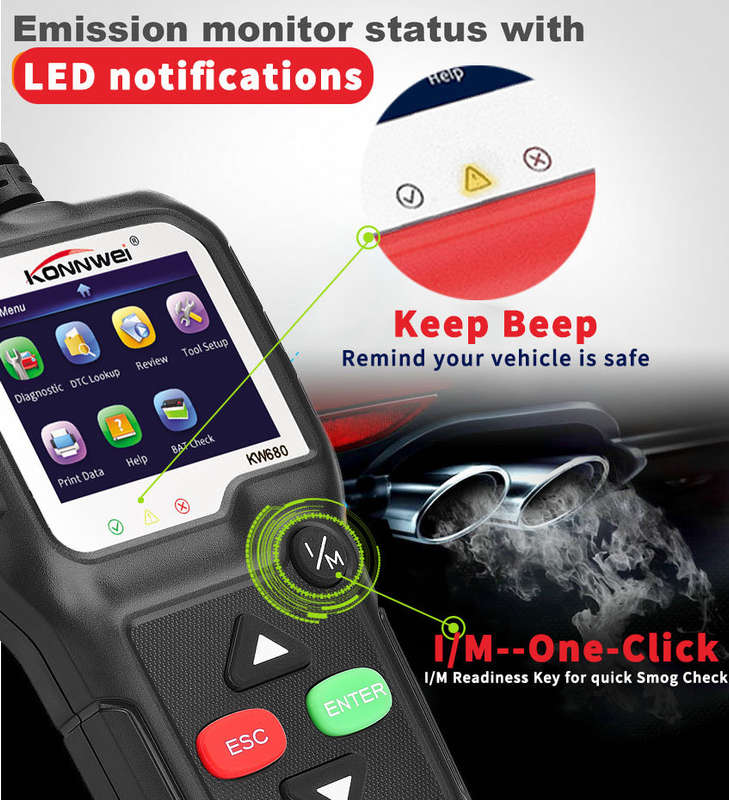

2. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.
3. Bright color coded LEDs indicators and built-in speaker provide both visual and audible tone for readiness verification
4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
5. Easily determines the cause of the Check Engine Light(MIL)
6. Turns off Check Engine Light (MIL), clears codes and resets monitors
7. Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.
8. Views freeze frame data
9. Displays monitor and I/M readiness status (emissions)
10. Reads live PCM datastream
11. Displays live O2 sensor test data
12. EVAP System test data
13. Live sensor data in text mode and graph mode (1996 and newer vehicles)
14. Reads, stores and playbacks live sensor data
15. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
16. Battery Voltage real time monitoring.
17. Built-in DTC look-up library and display definition.
18. Retrieves vehicle information (VIN, CIN and CVN)
19. Internet updateable and upgradeable
20. Prints data via PC

Top 9 Reasons to Choose KW680 OBD2 Automotive Scanner:

1. Multilingual diagnostic interface: KW680 Supports up to 8 different languages user interface, English, Spanish, Portuguese, French, Russian, German, Dutch, Italian
2. Mini Multi-function OBD2 Automotive Scanner with good price
3. High Quality and High Resolution TFT colorful display helps you easily to find out the troubles of your car.
4. Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification.

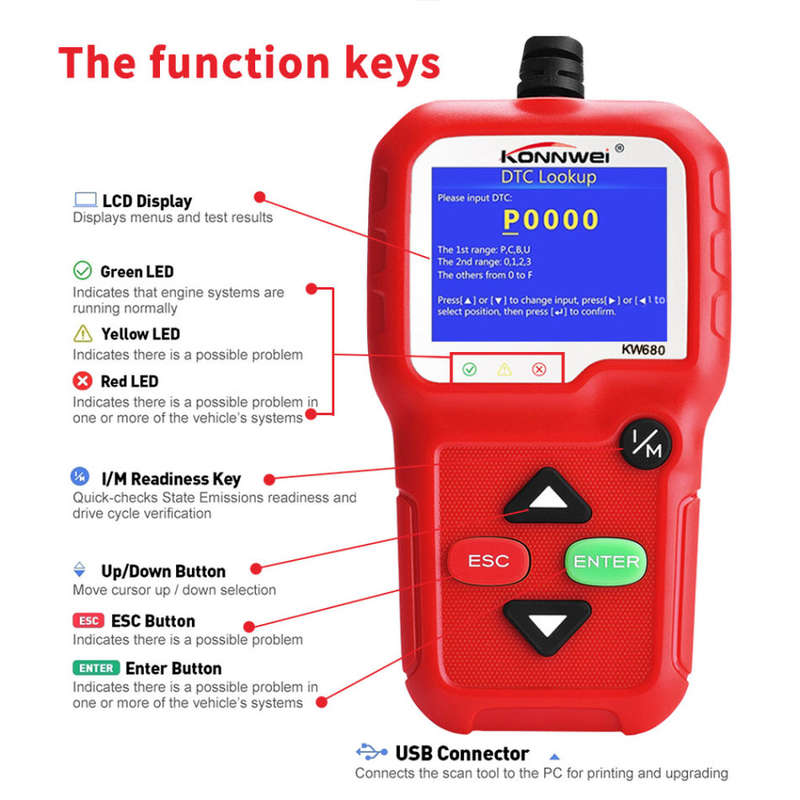

5. Brand New design Key pad, unique patented One-Click I/M Readiness Key, it is the best partner for your car repairing.
6. Featured battery real-time monitoring during diagnostics, avoid un-expected happened.
7. Intergrated memory card allows storage of Trouble Codes, Live Data and freeze frame, Playback and review data when out of vehicles.
8. Data printable through USB cable, allows modify and print-out storaged data.
9. Internet upgradable via usb port, adapted to Windows XP- Windows 7.


Specification:

• Display: TFT color screen ( 320*240dpi)
• Operating Temperature: 0 to 60 (32 to 140 )
• Storage Temperature: -20 to 70 (-4 to 158 )
• Power: 8 to 18 V provided via vehicle
• Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)
• Dimensions: 124mm 4.88in x 70mm (2.76'') x 20mm (0.79'')

Car Diagnostic Scanner Languages & Support Protocol:

8 languages: English, French, German, Dutch, Spanish, Russian, Portuguese
Support protocol: ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM. Support system: XP WIN7 WIN8 WIN10

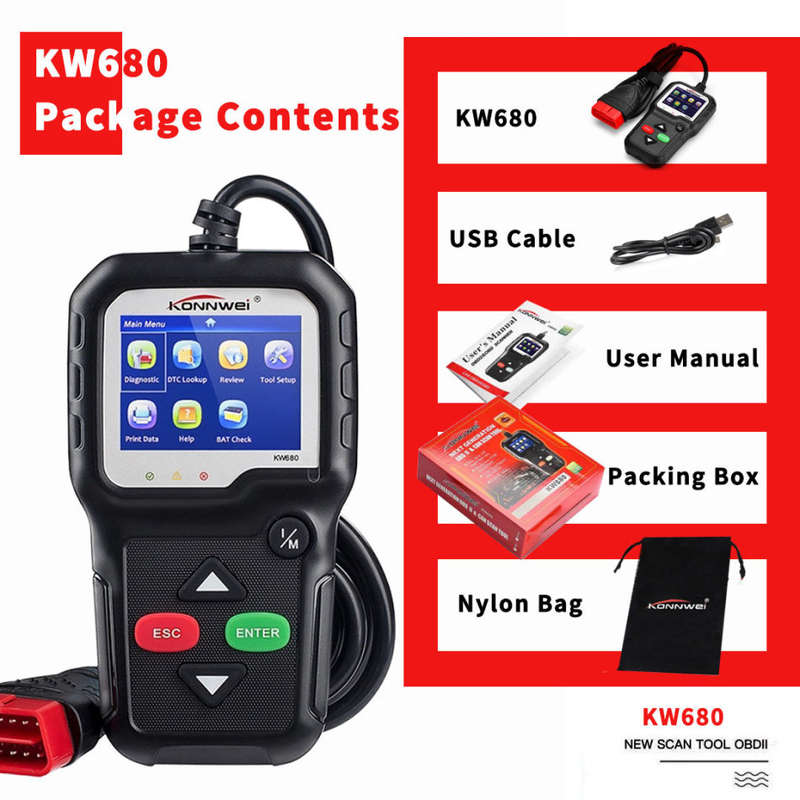

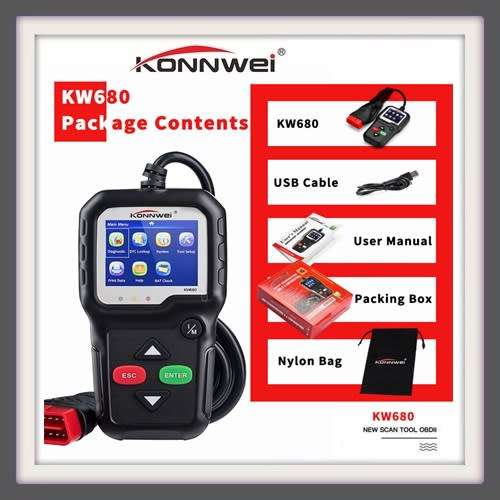

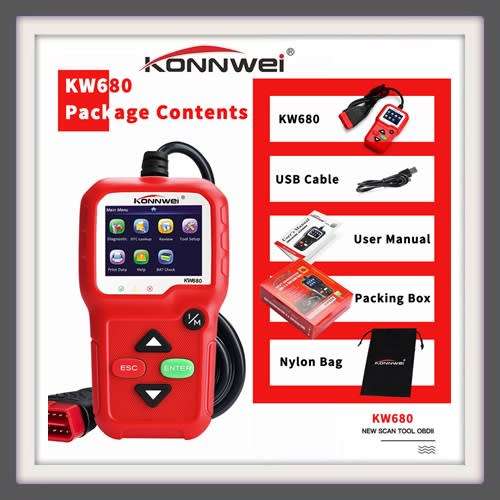

Package list:

• 1pc x KW680 Super CAN OBDII/EOBDII Memo Scanner
• 1pc x 1500mm length OBDII Connecting Cable
• 1pc x COM Cable for connecting KW680 to PC
• 1pc x User Manual
