Features:
- Work on all 1996 and later OBDII compliant US, European and Asian vehicles.
- Retrieves generic ( P0, P2, P3, and U0 ) and manufacturer specific ( P1, P3, and U1 ) codes.
- Easily determines the cause of the Check Engine Light ( MIL ).
- Display monitor and I / M readiness status ( emissions ).
- Memory / battery backup for off-vehicle data review and analysis.
- Supports CAN ( Controller Area Network ) and all other current.
- Built-in OBD-II DTC lookup library.
- Multilingual menu: English, Spanish, French, and German.
- Displays DTC definitions on unit screen.
- Displays live O2 sensor test data.
- Large easy-to-read backlit LCD screen.
Specifications:
- Operating temperature: 0 - 60 Deg.C.
- External power: 8 - 18V power provided via vehicle battery.
- Display: Backlit, 128 x 64 pixel display with contrast adjustment.
- Dimensions: 7 x 3.7 x 1.4 inch.
- Cable length: About 56 inches.
- Brand: KONNWE
- Model: W808
- Quantity: 1 piece
- Material: ABS
- Wireless: Bluetooth
- Diagnose Interface: N/A
- Supported Languages: AA
Dimensions & Weight:
- Dimensions: 7.87 in x 3.94 in x 1.57 in (20 cm x 10 cm x 4 cm)
- Weight: 21.16 oz (600 g)
Konnwei KW808 Support Car :
- if your car satisfy the following two conditions , 98% no problem :
- Your car engine work on 12V ,
- American car : after 1996 year ,
- European and Australian Car : after 2000 year ,
- Asian Car : after 2005 year .
- if your car satisfy the conditions and the ecu support standard OBD2 / EOBD protocols, it will be 100% no problem
- Doesn't support the local brand car models.
Konnwei KW808 Support Protocols:
- ISO9141-2(5 baud init,10.4Kbaud)
- ISO14230-4 KWP(5 baud init,10.4Kbaud)
- ISO14230-4 KWP(fast init,10.4Kbaud)
- ISO15765-4CAN(11bit ID,500 Kbaud)
- ISO15765-4CAN(29bit ID,500 Kbaud)
- ISO15765-4CAN(11bit ID,250 Kbaud)
- ISO15765-4CAN(29bit ID,250 Kbaud)
- SAE J1850 PWM (41.6 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)

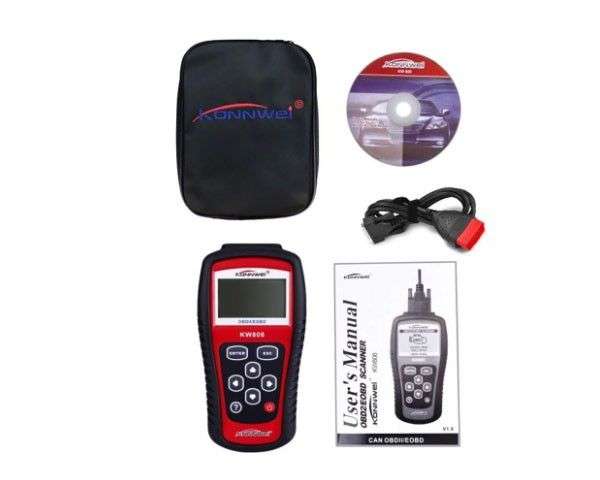

What's in the box
1 x Scanner
1 x Cable
1 x Nylon Carry Case
1 x English Product Manual
