KONNWEI KW808 EOBD OBD2 OBDII AUTO DIAGNOSTIC SCANNER

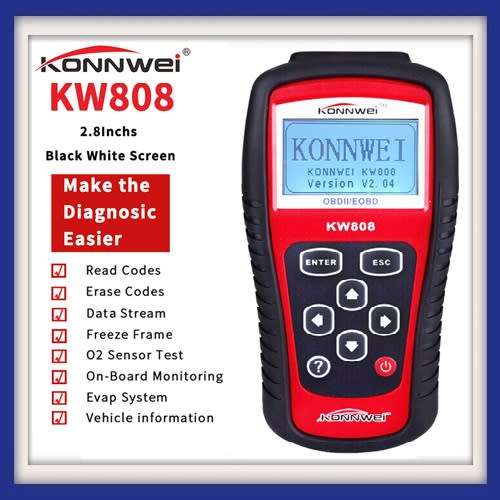

KONNWEI KW808 EOBD OBD2 OBDII Auto Diagnostic Scanner

SHIPPING 5 TO 10 WORKING DAYS ON ITEMS OUT OF STOCK

WE ARE AUTHORISED DEALER OF KONNWEI AND ONLY SELL GENUINE PRODUCTS

Noted : This scanner supports all nine OBDII test modes on all OBDII compliant vehicles to enable technicians to accurately diagnose even the toughest problems. Sophisticated yet easy to use, this ergonomic scan tool make your vehicle service experience much more pleasant!

Highlights:

• Work on MOST 1996 and later OBDII compliant US, European and Asian vehicles.
• Retrieves generic ( P0, P2, P3, and U0 ) and manufacturer specific ( P1, P3, and U1 ) codes.
• Easily determines the cause of the Check Engine Light ( MIL ).
• Display monitor and I / M readiness status ( emissions ).
• Memory / battery backup for off-vehicle data review and analysis.
• Supports CAN ( Controller Area Network ) and all other current.
• Built-in OBD-II DTC lookup library.

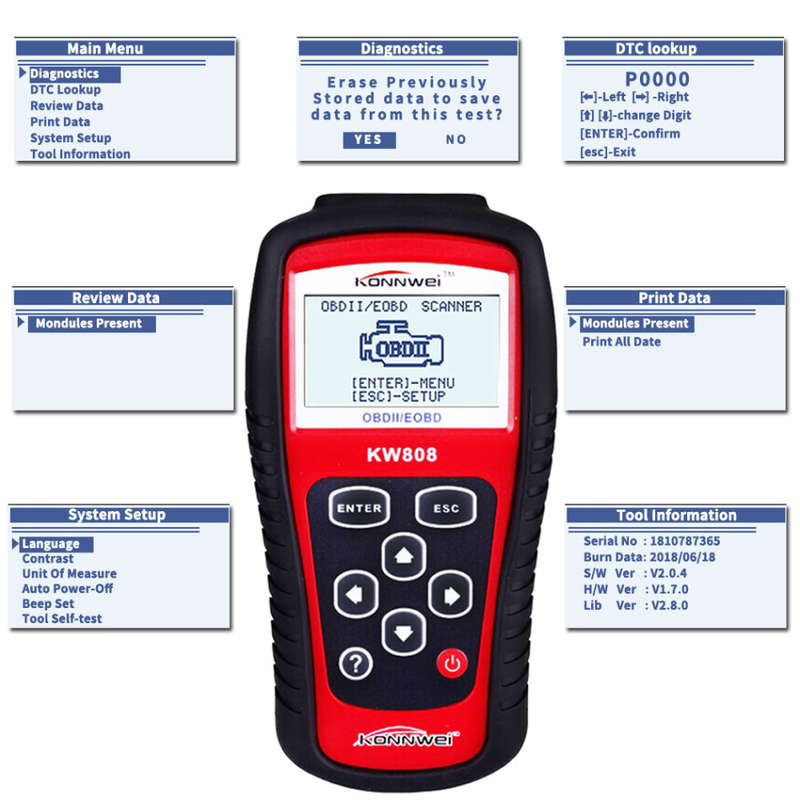

• Multilingual menu: English, Spanish, French, and German.
• Displays DTC definitions on unit screen.
• Displays live O2 sensor test data.
• Large easy-to-read back lit LCD screen.

Car Diagnostic Scanner Languages & Support Protocol:

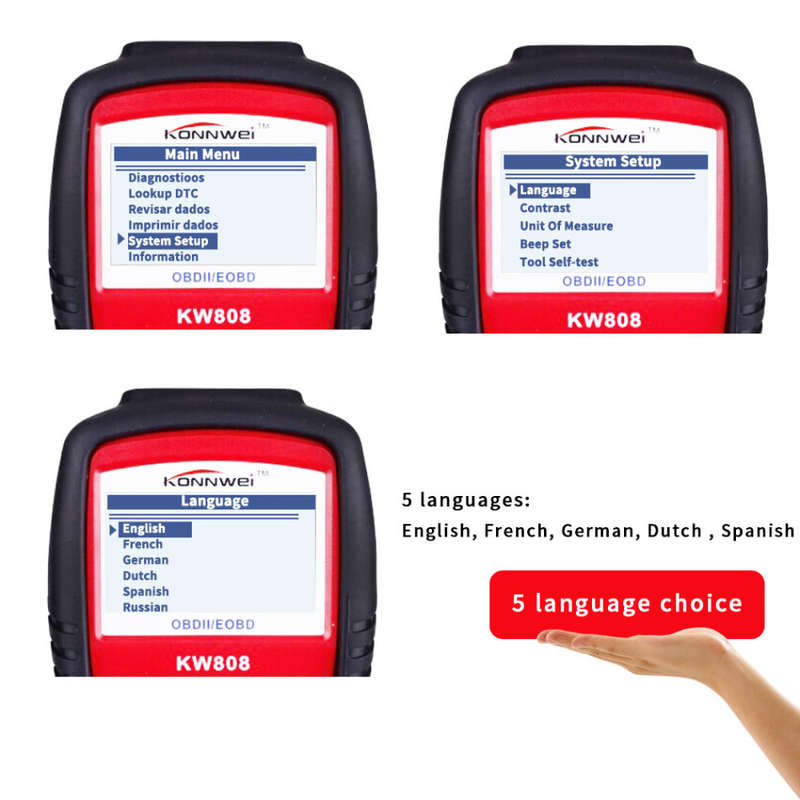

5 languages: English, French, German, Dutch and Spanish
Support Protocol: ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM, support system: XP WIN7 WIN8 WIN10.

Specifications:

• Operating temperature: 0 - 60 Deg.C.
• External power: 8 - 18V power provided via vehicle battery.
• Display: Backlit, 128 x 64 pixel display with contrast adjustment.
• Dimensions: 7 x 3.7 x 1.4 inch.
• Cable length: About 56 inches.
• Material Type: Rubber Plastic
• Package weight: 0.795 kg
• Package Size(L x W x H): 25.00 x 18.50 x 7.00 cm / 9.84 x 7.28 x 2.76 inches

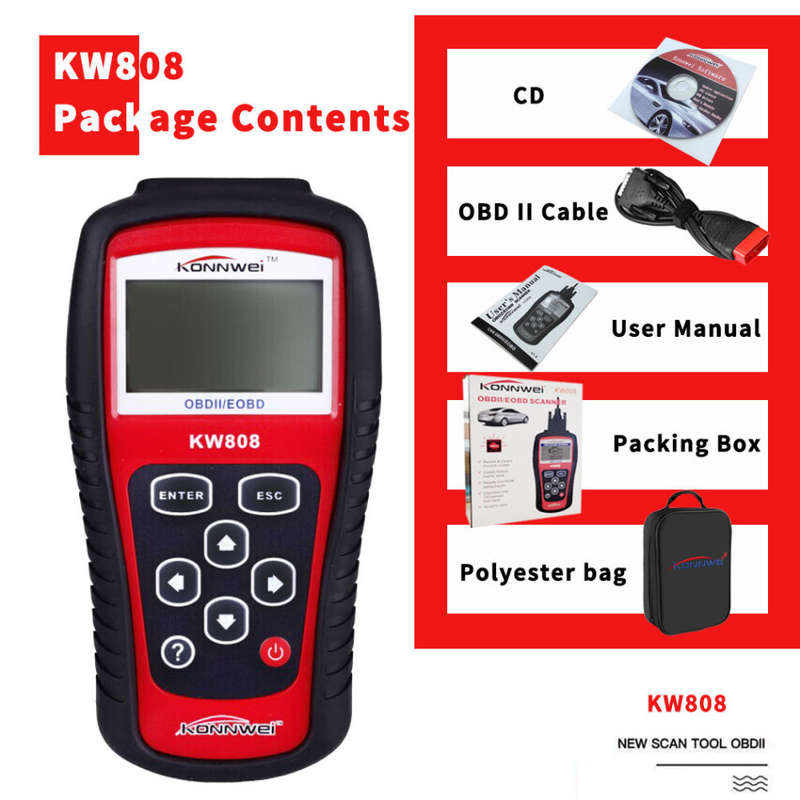

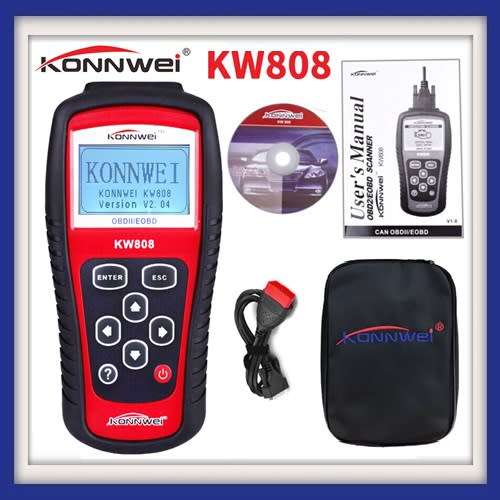

Package list:

• 1pc x KW808 Super CAN OBDII/EOBDII Memo Scanner
• 1pc x 1500mm length OBDII Connecting Cable
• 1pc x COM Cable for connecting KW808 to PC
• 1pc x User Manual
